T= 8.0 / 8.76 / 9.52 / 10.0 / 10.76 / 11.52 / 12.00 / 12.76mm

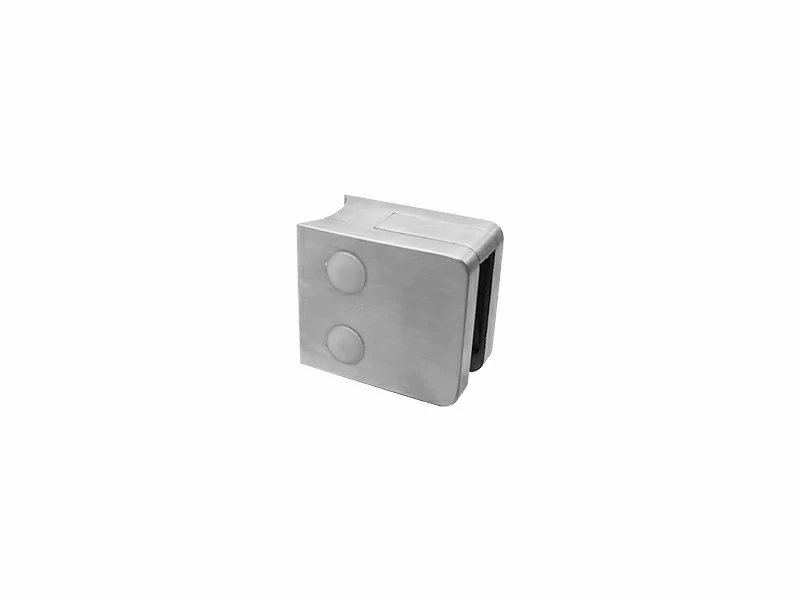

The 10mm Glass Clamp is a heavy-duty square stainless steel glass clamp with an integrated safety plate, designed to securely hold glass panels in handrails, balustrades, railings, and shower enclosures. Engineered for strength, safety, and long-term durability, this clamp is ideal for architectural glass installations requiring enhanced load resistance and reliable glass retention.
Constructed from premium AISI 304 stainless steel, AISI 316 stainless steel, or Duplex Stainless Steel 2205, the clamp offers excellent corrosion resistance and mechanical performance in both indoor and outdoor environments. The square design delivers even clamping pressure across the glass surface, while the built-in safety plate provides an additional mechanical safeguard to prevent accidental glass release. With a compact yet robust profile, this 10mm glass clamp supports a wide range of glass thicknesses and is available in flat back and radius back configurations. Installation is straightforward using screws or suitable fasteners, with no drilling required in the glass.
| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC008.00 | 8-12.76 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
| Glass Clamps | GC008.42 | 8-12.76 | 42.4 | ||
| Glass Clamps | GC008.48 | 8-12.76 | 48.3 |
Q1: Why is the safety plate important for my railing system?
A: The safety plate is a critical feature for elevated railings and balustrades. It provides a physical barrier that prevents the glass panel from dropping or slipping, even if the friction grip of the clamp is compromised by extreme vibration or impact.
Q2: Which material grade should I choose?
A: AISI 304: Best for indoor residential use.
AISI 316: The standard for outdoor railing systems with moderate exposure.
Duplex 2205: Recommended for coastal or high-corrosion environments like pool enclosures.
Q3: Do I need to modify my glass panels to use this clamp?
A: While the clamp uses rubber gaskets for a secure friction fit, the use of the safety plate typically requires a corresponding small notch or hole in the glass to lock the panel into place for maximum security.
Q4: Can this clamp be used on round handrail posts?
A: Yes. Highco Metal offers this clamp with a Radius Back specifically designed to sit flush against round tubing with diameters of 37.3mm or 42.4mm.
Inquiry Glass Clamps in Other Sizes, please contact us.
