The Stainless Steel Square Type Glass Clamp is engineered to securely hold glass panels ranging from 8mm to 12mm in thickness. This “Middle” version is distinguished by an integrated safety pin, which acts as a secondary mechanical lock to prevent the glass panel from accidental release or slipping.
Available in both flat back (for square posts or walls) and radius back (50.8mm for round posts), these clamps are manufactured from premium Stainless Steel 304 or 316. This ensures maximum corrosion resistance, making them ideal for both high-end interior shower enclosures and demanding outdoor pool fencing or coastal balustrades. With satin brushed and mirror polished finishes available, this glass clamp supports modern “all-glass” railing designs while meeting both functional and aesthetic requirements.

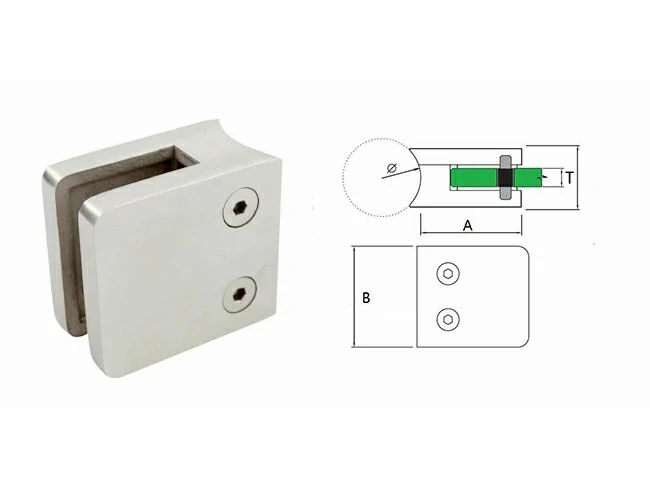

| Category | Part NO. | Main Dimension (mm) | Ø | Glass mm | Material | Surface | ||
| A | B | C | ||||||
| Glass Clamp | GC05.00 | 55 | 55 | 27 | Flat | 8.0/10.0/12.0 | Stainless Steel 304 / 316 | Satin or Mirror polished |
| Glass Clamp | GC05.50 | 55 | 55 | 27 | 50.8 | 8.0/10.0/12.0 | ||
Q1: Do I need to drill the glass to use this clamp?
A: Because this model features a safety pin for extra security, a small hole is typically required in the glass panel to allow the pin to pass through and provide a mechanical lock.
Q2: What is the function of the safety pin?
A: The safety pin provides an additional mechanical lock, helping prevent accidental glass panel release and enhancing overall installation safety.
Q3: Which material grade should I choose for an outdoor railing?
A: For outdoor or high-moisture areas like pool fencing, Stainless Steel 316 is highly recommended due to its superior corrosion resistance compared to SS304.
Q4: Can this clamp be used on a 50.8mm round post?
A: Yes, the radius back version is specifically designed to sit flush against 50.8mm round tubing for a professional fit.
Q5: What thicknesses of glass does it support?
A: While it is a popular 12mm Glass Clamp, it can also accommodate 8mm and 10mm glass panels by using the appropriate rubber gaskets included with the unit.
Inquiry Glass Clamps in Other Sizes, please contact us.
