T= 10.76 / 11.52 / 12.00 / 12.76 / 13.52 /15.00mm

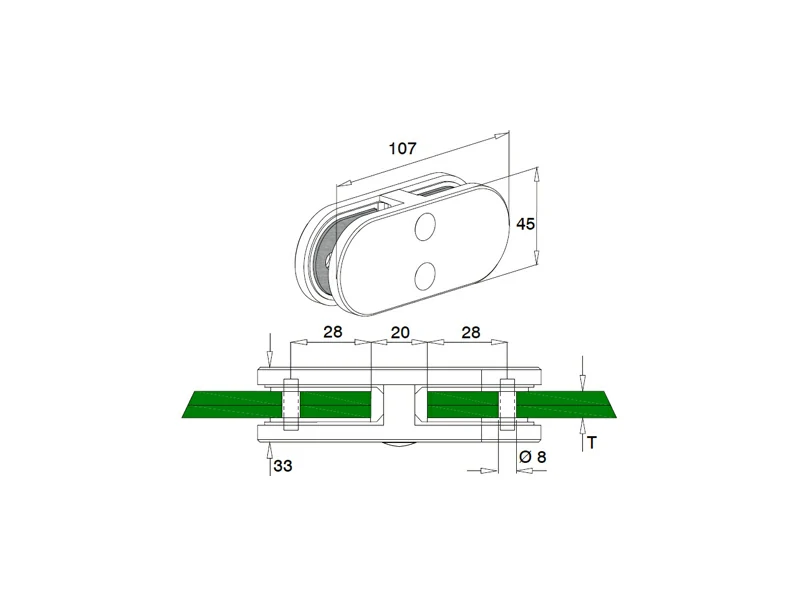

This 180-degree glass clamp is the ideal choice for creating long, continuous glass spans with a minimalist architectural look. It acts as a heavy-duty connector that grips two panels from both sides, ensuring structural stability while maintaining maximum transparency.
Constructed from high-grade AISI 304,316 or Duplex SS 2205 with a satin or mirror finish, these glass calmps are built to perform in both indoor and outdoor environments. It is compatible with various glass thicknesses, typically ranging from 10.76mm to 15.00mm, using different rubber inlays. Whether used for a residential balcony or a commercial glass partition, the clamp’s durable design ensures long-lasting resistance to wear and corrosion.
| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC012.00 | 10.76-15 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
Q1: Where is a 180 degree glass clamp typically used?
A: These clamps are most commonly used in frameless or semi-frameless railing systems, glass partitions, and shower enclosures where two panels meet in a straight line.
Q2: Which material grade is best for an outdoor balcony?
A: For outdoor applications, Grade 316 stainless steel is recommended due to its superior corrosion resistance. If the installation is in a coastal area, Duplex SS 2205 is the ideal choice for maximum protection against saltwater air.
Q3: Does this clamp require holes in the glass?
A: While the clamp uses high-quality rubber inlays for a secure friction fit, it features an 8mm diameter provision for a safety pin. Using a pin (which requires a hole in the glass) is recommended for high-load or safety-critical railing system applications.
Q4: Can this clamp be used with different glass thicknesses?
A: Yes. By using different sets of rubber inlays, the same clamp can securely hold various glass thicknesses between 10.76mm and 15.00mm.
Inquiry Glass Clamps in Other Sizes, please contact us.
