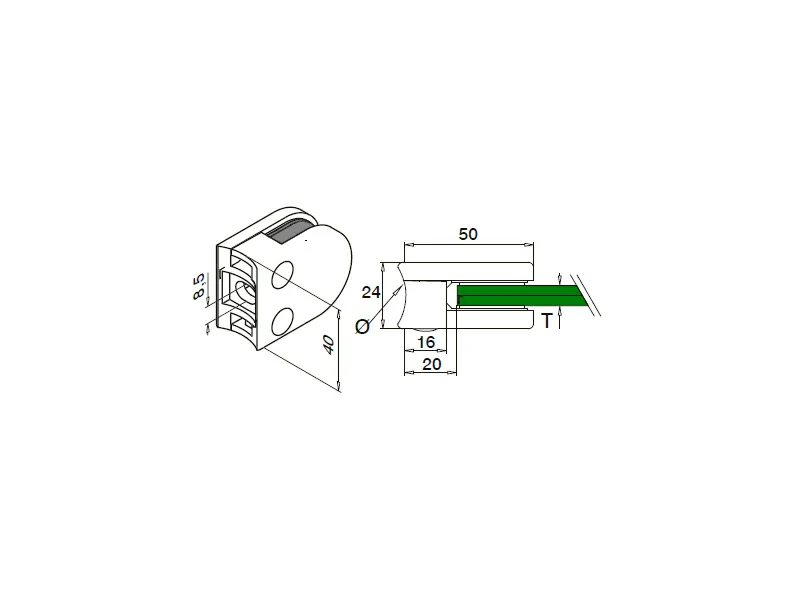

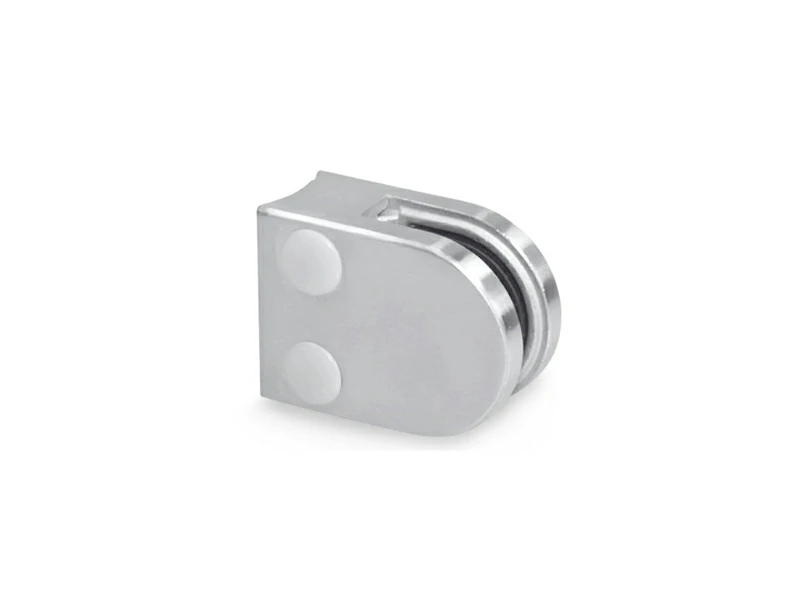

The Stainless Steel D Type Glass Clamp is specifically designed to provide a secure grip on glass panels ranging from 6.0mm to 8.76mm. With dimensions of 40mm in height and 50mm in length, this clamp offers a substantial surface area for maximum stability.
Available in high-grade Stainless Steel 304 or 316, it is built to withstand varied environmental conditions, from interior shower enclosures to exterior coastal balustrades. The clamp is available in flat back and radius back configurations to suit various mounting surfaces. Flat back clamps are suitable for square posts or wall mounting, while radius back options fit 33.7mm and 42.4mm round posts. Surface finish options include satin brushed and mirror polished, allowing seamless integration with contemporary architectural designs.
| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC001.00 | 6-8.76 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
| Glass Clamps | GC001.33 | 6-8.76 | 33.7 | ||
| Glass Clamps | GC001.42 | 6-8.76 | 42.4 |
Q1: Do I need to drill holes in my glass to use this clamp?
A: No. This D Type clamp is designed to hold the glass securely through a compression system, making it an ideal choice for panels where drilling is not possible or desired.
Q2: What glass thicknesses are supported by this clamp?
A: This clamp supports 6.0mm, 6.76mm, 8.0mm, and 8.76mm glass using appropriate rubber gaskets.
Q3: Can this 6mm Glass Clamp fit on a round post?
A: Yes. We offer radius back options specifically designed for 33.7mm and 42.4mm round posts to ensure a flush, secure fit.
Q4: Does the clamp include protective gaskets?
A: Yes, appropriate rubber gaskets are used within the clamp to accommodate various glass thicknesses (6.0mm to 8.76mm) and protect the glass surface from metal contact.
Inquiry Glass Clamps in Other Sizes, please contact us.
