T= 6.0 / 6.76/ 7.5 / 7.6 / 8.0 / 8.76mm

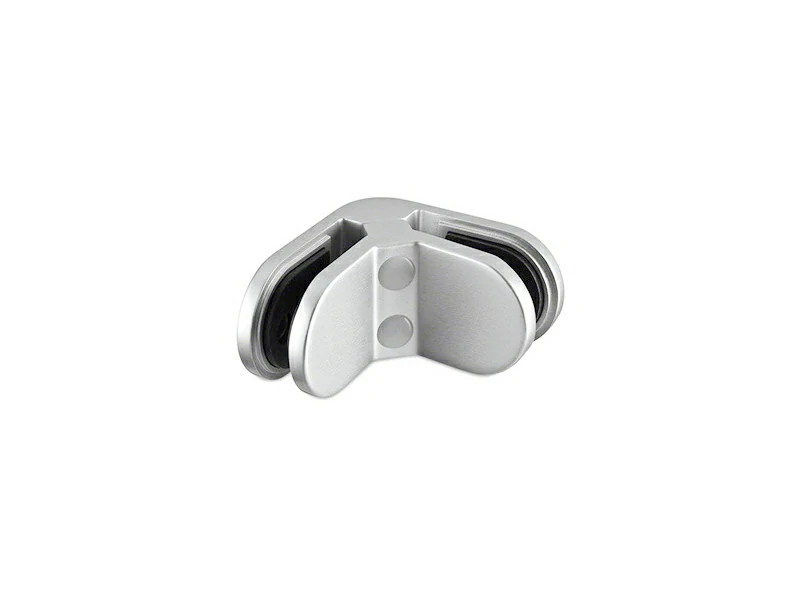

The 90 Degree Corner Glass Clamp is a premium hardware solution engineered to join two glass panels at a precise right angle. It is constructed from high-grade AISI 304, 316, or Duplex SS 2205 stainless steel, ensuring long-lasting performance and exceptional corrosion resistance in both indoor and outdoor environments.
The clamp is optimized for panels with thicknesses ranging from 6.0mm to 8.76mm. It features integrated rubber inlays that provide a secure friction fit, allowing for a professional installation that does not require drilling into the glass panels. Offered in professional Satin or high-gloss Mirror polished finishes, this fitting increases corner stability while minimizing visual obstructions.
| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC016.00 | 6-8.76 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
Q1: What is a 90 Degree Corner Glass Clamp used for?
A: t is used to connect two glass panels at a right angle, typically at corners in glass railings, shower enclosures, and partitions.
Q2: What glass thicknesses are suitable for this clamp?
A: This clamp is compatible with glass thicknesses of 6.0 mm, 6.76 mm, 7.5 mm, 7.6 mm, 8.0 mm, and 8.76 mm when used with the correct rubber inserts.
Q3 Is drilling the glass required for this fitting?
A: No. The clamp features specialized rubber inlays that provide a secure fit through friction, eliminating the need for pre-drilled holes in your glass panels.
Q4: How is the 90 degree corner glass clamp installed?
A: The installation is simple and efficient, utilizing screws or other appropriate fasteners to secure the clamp body.
Q5: How does the double-sided design improve performance?
A: The double-sided clamping mechanism distributes pressure evenly across both glass panels, ensuring a stable, secure connection and long-term reliability.
Inquiry Glass Clamps in Other Sizes, please contact us.
