The 90 Degree Elbow Joiner is a specialized, precision-engineered component designed to facilitate seamless horizontal transitions in modular glass railing systems. As an essential part of modern U-Profile Fittings, this connector allows you to link two lengths of stainless steel slotted tubes at a crisp, right-angle corner, ensuring a continuous and robust top rail. The open, semi-circular cross-section is specifically crafted to slip securely over the protective rubber gaskets mounted on structural glass panel edges, providing both a structural handrail and a stable, finished aesthetic. Manufactured from high-grade 304 or 316 stainless steel, these handrail fittings are built for longevity in residential, commercial, and industrial applications, and are available in satin or mirror-polished finishes to match your project’s design requirements.

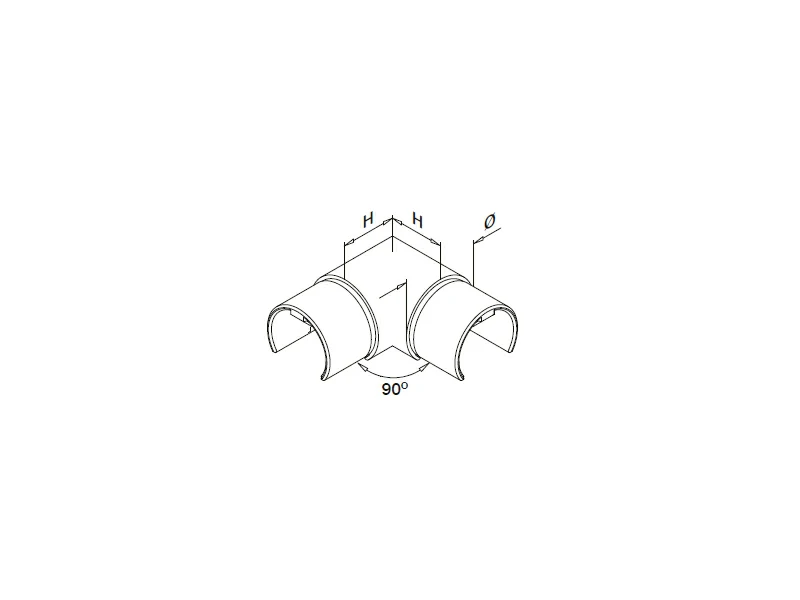

| Category | Part NO. | H | Ø | Material | Surface | Place of Production |
| U-Profile Fittings | L002.42.15 | 30mm | 42.4x1.5mm | Stainless Steel 304 / 316 | Satin or Mirror polished | Shandong, China |
| U-Profile Fittings | L002.48.15 | 35mm | 48.3x1.5mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after tube elbow samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of the 90 Degree Elbow Joiner?
A: The primary function of this tube connector is to connect two separate runs of slotted cap rail at a 90-degree horizontal corner, creating a continuous and safe handrail over the top edge of a glass balustrade.
Q2: Which railing profiles does this joiner fit?
A: It is designed for standard round slotted handrail profiles with outer diameters of Ø 42.4mm or 48.3mm, featuring specific slot dimensions to accommodate various glass thicknesses.
Q3: Is this fitting suitable for outdoor environments?
A: Yes. When fabricated from 316-grade stainless steel, this joiner offers excellent resistance to corrosion, making it ideal for outdoor installations such as balconies and coastal terraces.
Q4: How does this joiner integrate with glass panels?
A: The elbow features a C-channel profile that slips directly over the protective rubber gaskets on the glass edge, ensuring a stable connection without direct metal-to-glass contact.
Q5: What surface finishes are available?
A: To ensure visual consistency across your railing system, this fitting is available in both Satin (brushed) and Mirror (polished) finishes.
Q6: Can these be customized for specific designs?
A: While these are designed as standard modular components, they can be selected to match specific handrail profiles, sizes, and aesthetic requirements for your project.
Inquiry Stinless Steel U-profile Fittings in other sizes, please contact us.
