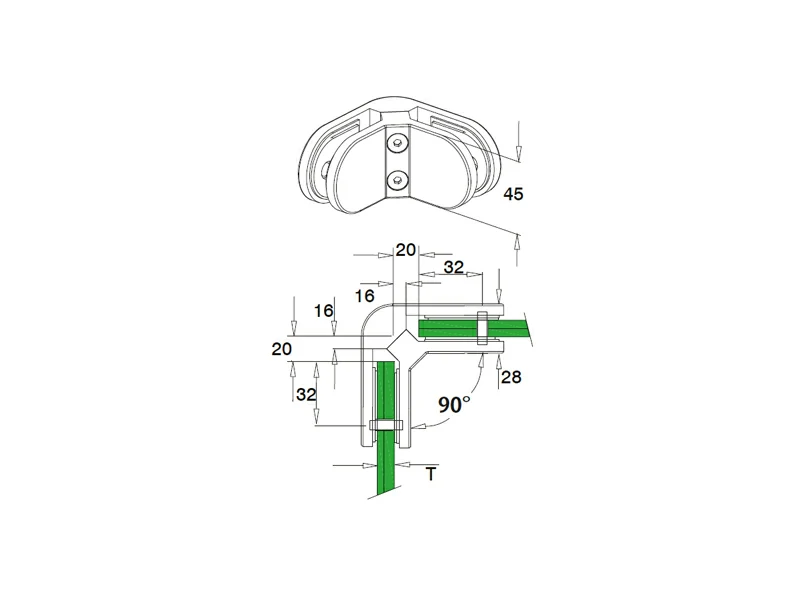

T= 6.0 / 6.76 / 8.0 / 8.76 / 9.52 / 10.00mm

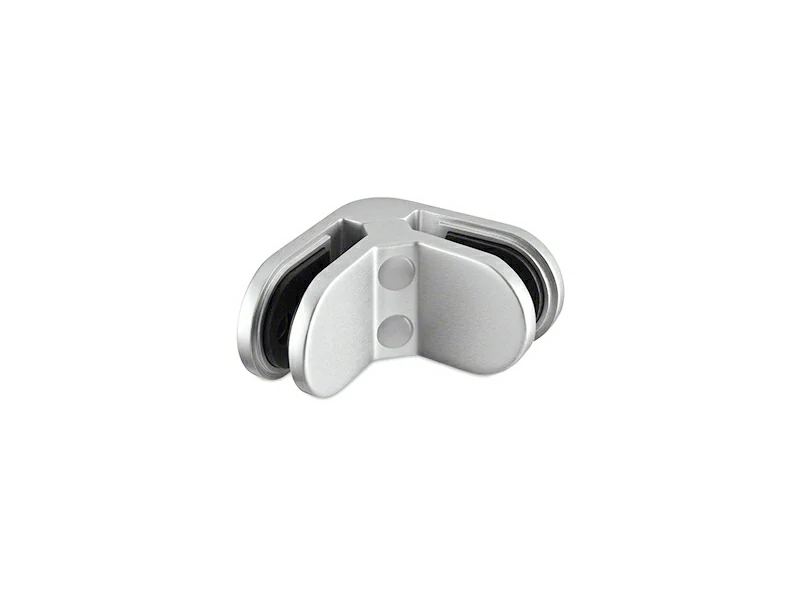

The 90 Degree Glass Clamp is a precision-engineered hardware solution designed to connect two glass panels at a right angle. This corner connector utilizes high-quality rubber inlays to provide a secure friction fit, allowing for a professional installation that eliminates the need for bulky intermediate support structures or drilling into the glass. Constructed from premium AISI 304, 316, or Duplex SS 2205 stainless steel, these glass calmps offer exceptional structural integrity and are available in both satin brushed and mirror polished finishes to complement any modern architectural design.
| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC014.00 | 6-10 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
Q1: What is a 90 degree glass clamp used for?
A: A 90 degree glass clamp is used to connect two glass panels at a right angle, commonly at corners in glass railing systems, balustrades, shower enclosures, and partitions.
Q2: Does this 90 degree glass clamp require holes to be drilled in the glass?
A: No. These fittings are designed to hold glass panels securely using appropriate rubber gaskets through a friction-fit mechanism. This allows for a clean installation without the need for pre-drilled glass, though users should always check local safety codes for specific project requirements.
Q3: What glass thicknesses is this clamp compatible with?
A: This model is specifically designed to accommodate glass panels with thicknesses of 6.0mm, 6.76mm, 8.0mm, 8.76mm, 9.52mm, and 10.00mm. The secure fit is maintained through the use of interchangeable rubber inlays tailored to the specific glass size.
Q4: How does this clamp improve the look of a railing system?
A: By enabling a "glass-to-glass" corner connection, this clamp removes the need for a corner post, creating a more transparent and minimalist aesthetic. This provides a clear, open view while maintaining the necessary stability for the entire system.
Q5: Which material grade is most suitable for different environments?
A: Highco Metal provides these clamps in several grades to suit various conditions:
AISI 304: Ideal for interior residential projects.
AISI 316: The standard for outdoor installations due to its high corrosion resistance.
Duplex SS 2205: Recommended for marine or coastal environments where maximum resistance to saltwater is required.
Inquiry Glass Clamps in Other Sizes, please contact us.
