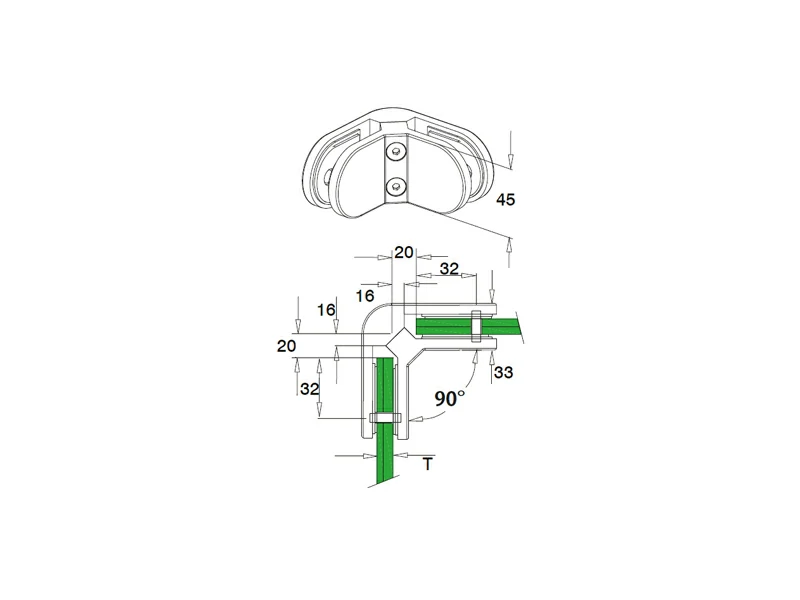

T= 10.76 / 11.52 / 12.00 / 12.76 / 13.52 /15.00mm

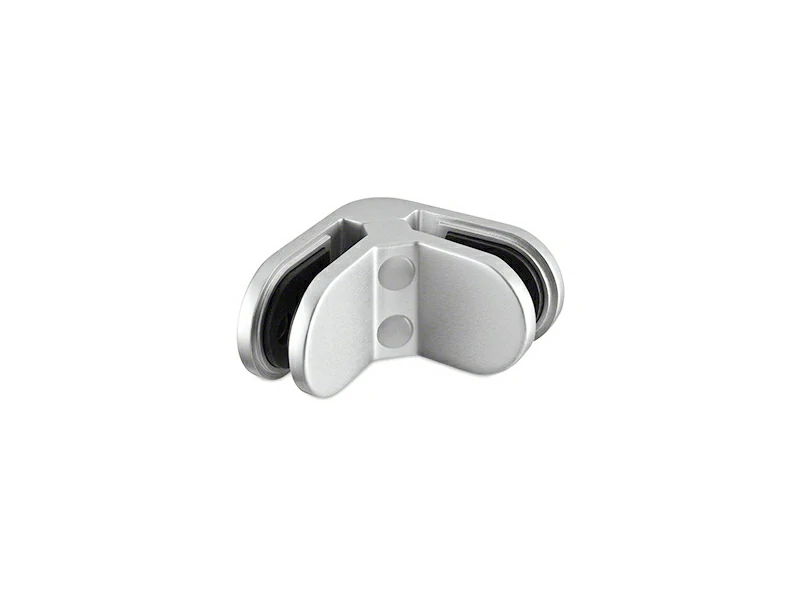

The 90 Degree Glass to Glass Clamp is a double-sided stainless steel fitting designed to securely connect two glass panels at a precise right angle. It is ideal for corner applications in frameless glass systems, including glass railings, partitions, and shower enclosures where a clean, modern appearance is required. Manufactured from high-quality AISI 304, AISI 316, or Duplex SS 2205 stainless steel, this clamp offers excellent strength, corrosion resistance, and long-term durability.
Equipped with rubber inlays, the clamp grips the glass firmly without the need for drilling, helping to protect the glass surface and maintain its integrity. The double-sided clamping mechanism applies even pressure to both panels, preventing wobbling, loosening, or detachment, even under load or in windy conditions. Satin brushed and mirror polished finishes are available to suit different architectural styles.
| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC015.00 | 10.76-15 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
Q1: What are the benefits of using a 90 degree glass to glass clamp?
A: This clamp allows for seamless corner connections without the need for additional support structures, providing a clean, modern aesthetic and a clear, open view.
Q2: Does the glass need to be drilled for installation?
A: No. The clamp secures the glass using rubber inlays, eliminating the need for drilling and reducing the risk of glass damage.
Q3: Can this clamp handle heavy glass panels?
A: Yes, this specific model is engineered for heavy-duty applications and is compatible with thick glass panels including 10.76mm, 11.52mm, 12.00mm, 12.76mm, 13.52mm, and 15.00mm.
Q4: How is the clamp installed?
A: The corner clamp is simple to install using standard screws or other appropriate fasteners to secure the clamping body to your structure.
Q5: Is this clamp suitable for outdoor environments?
A: Yes. When manufactured in AISI 316 or Duplex SS 2205 stainless steel, it provides excellent corrosion resistance and is suitable for outdoor and coastal applications.
Q6: How does the double-sided design improve stability?
A: The double-sided clamping mechanism distributes pressure evenly across both glass panels, ensuring a firm, reliable hold and long-term safety.
Inquiry Glass Clamps in Other Sizes, please contact us.
