T= 6.0 / 6.76 / 8.0 / 8.76 / 9.52 / 10.00mm

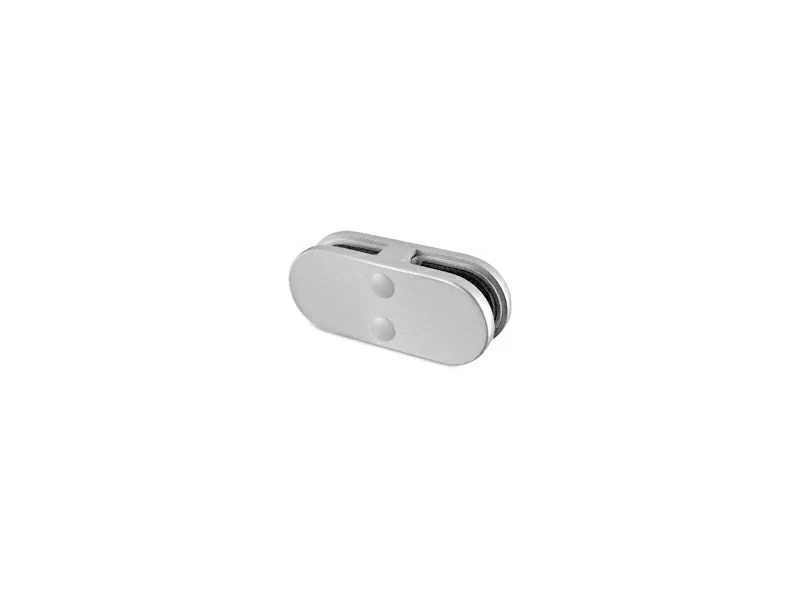

The Double Sided Glass Clamp is a high-performance stainless steel glass clamp designed to securely connect two glass panels in a straight line (180-degree configuration). Commonly used in glass railing systems, balustrades, and shower enclosures, this clamp provides strong, stable support while maintaining a clean and continuous glass appearance.
Constructed from premium stainless steel Grade 304 or 316, the clamp offers excellent durability and corrosion resistance, making it suitable for both indoor and outdoor applications. Available in multiple design styles—including U-shaped, square, and round profiles—this double sided glass clamp accommodates different architectural preferences and railing system requirements. To ensure a perfect match for your architectural design, the clamp is available in multiple grades and finishes, including satin brushed and mirror polished.
| Category | Part NO. | T | Material | Surface |
| Glass Clamps | GC011.00 | 6-10 | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
Q1: When should I use a double sided glass clamp instead of a standard clamp?
A: Double Sided Glass Clamp is specifically used for "glass-to-glass" connections in a straight line. Use this when you need to join two panels together without an intermediate post in your railing system.
Q2: Do I need to drill holes in the glass to install these?
A: While many installations utilize a secure friction fit with rubber gaskets, this model features an 8mm diameter provision that can accommodate a safety pin or bolt for added security in high-load areas.
Q3: Can this be used for shower enclosures?
A: Absolutely. The durable stainless steel construction and high-quality finish make it ideal for the high-moisture environment of glass shower partitions.
Q4: What glass thicknesses does this clamp support?
A: The clamp supports glass thicknesses from 6 mm to 10 mm using appropriate rubber inlays.
Inquiry Glass Clamps in Other Sizes, please contact us.
