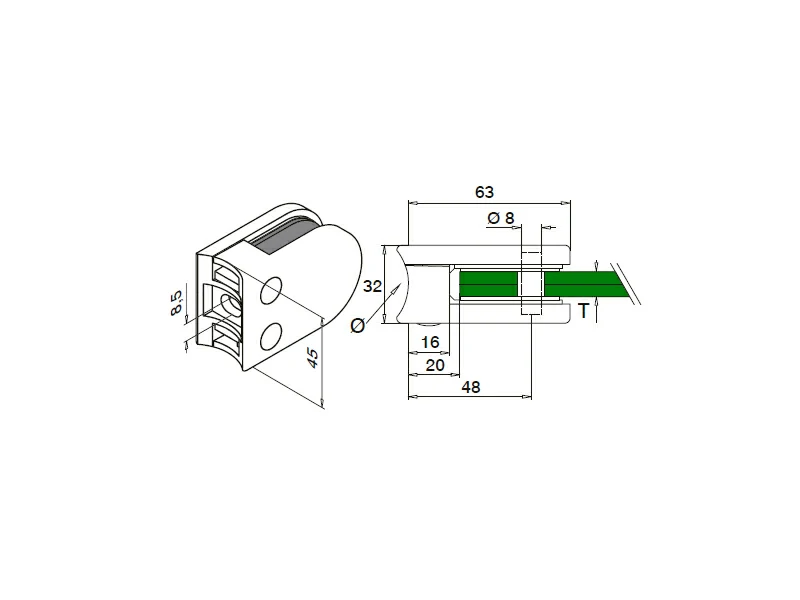

T= 8 / 8.76 / 9.52 / 10 / 10.76 / 11.52 / 12 / 12.76mm

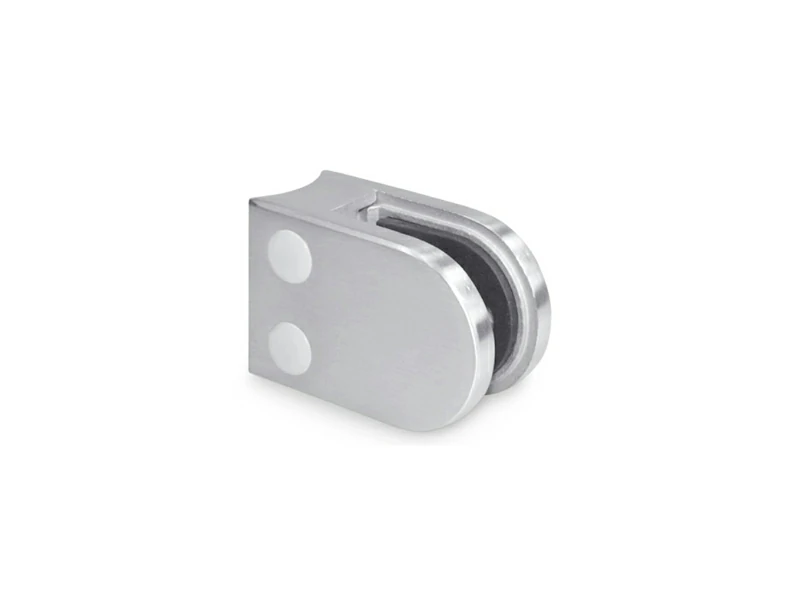

The Glass Balustrade Clamp is a precision-engineered stainless steel D-type glass clamp designed to securely fix glass panels in balustrades, railings, and handrail systems. With its compact dimensions and robust construction, this clamp delivers reliable holding strength while maintaining a clean, contemporary appearance ideal for modern architectural glass applications.
Manufactured from high-quality stainless steel 304, 316, or Duplex Stainless Steel 2205, the Glass Balustrade Clamp offers excellent corrosion resistance, structural durability, and long-term performance. Surface finish options include satin brushed and mirror polished, allowing seamless integration with contemporary architectural designs.
The D-shaped design ensures firm and even pressure on the glass panel, while flat back and radius back (42.4 mm / 48.3 mm) options provide flexibility for installation on walls, square posts, or round railing and handrial tubes. Installation is straightforward using screws or appropriate fasteners, with no need to drill holes in the glass.
| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC004.00 | 8-12.76 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
| Glass Clamps | GC004.42 | 8-12.76 | 42.4 | ||
| Glass Clamps | GC004.48 | 8-12.76 | 48.3 |
Q1: What glass thicknesses are compatible with this clamp?
A: The clamp supports glass thicknesses from 8 mm to 12.76 mm, including laminated glass sizes such as 8.76 mm, 10.76 mm, and 11.52 mm, using appropriate rubber gaskets.
Q2: What is the best material for an outdoor railing?
A: For standard outdoor use, AISI 316 stainless steel is recommended due to its high corrosion resistance. For coastal environments or areas near salt water, Duplex SS 2205 offers the highest level of performance.
Q3: Do these clamps require holes in the glass?
A: While these clamps provide a strong secure hold through friction, they include a provision for an 8mm safety pin. Using the safety pin requires a corresponding hole in the glass but provides an additional layer of safety for high-load applications.
Q4: Can I install these on existing round handrails?
A: Yes. You should select the Radius Back design that matches your tube diameter (either 42.4mm or 48.3mm) to ensure a flush, secure fit.
Inquiry Glass Clamps in Other Sizes, please contact us.
