T= 6.0 / 6.76/ 7.5 / 7.6 / 8.0 / 8.76mm

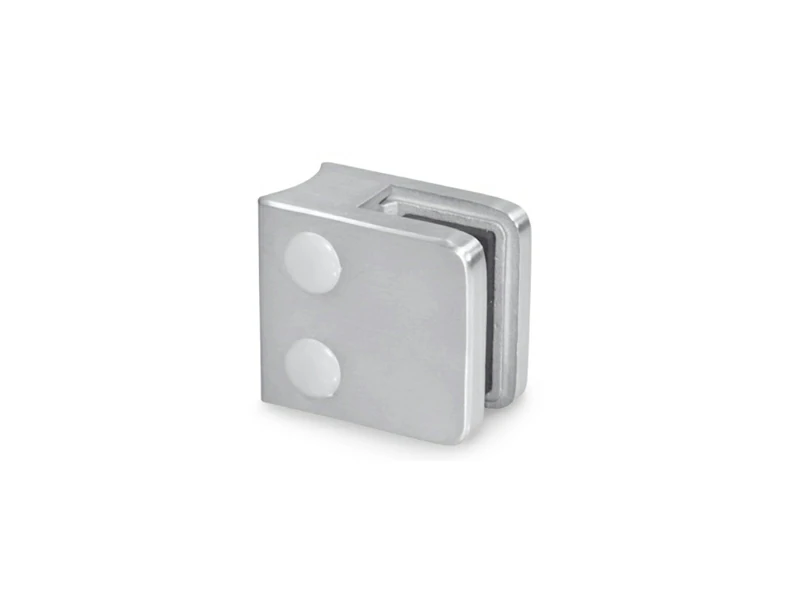

The Glass Pool Fence Clamps are precision-engineered stainless steel square glass clamps designed to securely hold glass panels in glass pool fencing, railing systems, and balustrades. With a robust square profile and compact form factor, these clamps provide reliable glass retention while maintaining a clean, modern appearance suitable for residential and commercial installations.
Manufactured from high-grade AISI 304 stainless steel, AISI 316 stainless steel, or Duplex Stainless Steel 2205, the clamps deliver excellent corrosion resistance and long service life, even in outdoor, humid, or poolside environments. The clamp is available in both Flat Back designs for mounting onto square posts or walls and Radius Back (37.3 mm or 42.4 mm post) designs specifically contoured to fit round tubing.

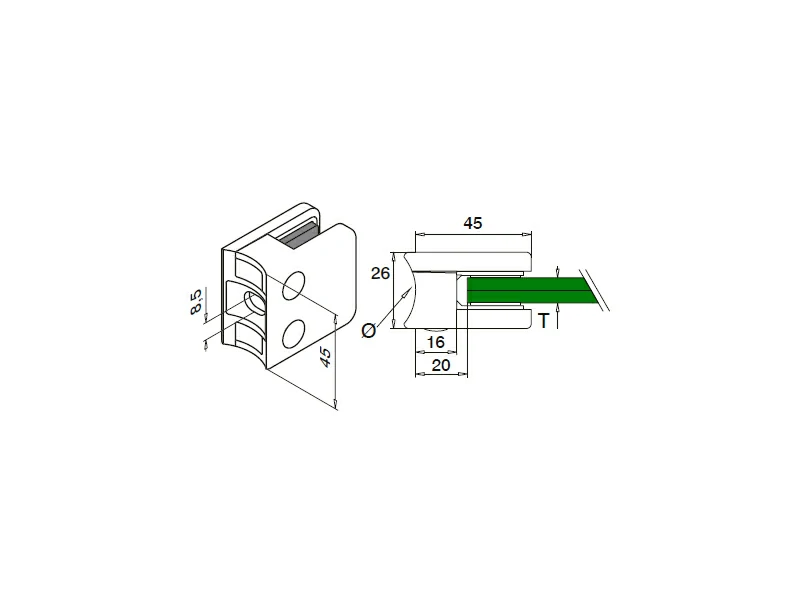

| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC005.00 | 6-8.76 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
| Glass Clamps | GC005.33 | 6-8.76 | 33.7 | ||
| Glass Clamps | GC005.42 | 6-8.76 | 42.4 |
Q1: What is the advantage of using Duplex SS 2205 for pool fencing?
A: Duplex SS 2205 offers the highest level of corrosion resistance, making it the ideal choice for glass pool fence applications where hardware is constantly exposed to chlorine or saltwater spray.
Q2: What glass thicknesses are compatible with these clamps?
A: These clamps support glass thicknesses from 6.0 mm to 8.76 mm, including laminated glass sizes such as 6.76 mm and 8.76 mm.
Q3: Can these clamps be used on a curved handrail?
A: Yes. By selecting the Radius Back option, these clamps can be mounted seamlessly to round handrail tubes with diameters of 37.3mm or 42.4mm.
Q4: Is it necessary to drill holes in my glass panels?
A: No. These Glass Pool Fence Clamps are designed to hold glass panels securely through a friction fit using internal rubber gaskets. This simplifies installation and reduces the risk of glass breakage during prep.
Q5: What surface finishes are available?
A: The clamps are available in satin brushed and mirror polished finishes to match different architectural styles.
Inquiry Glass Clamps in Other Sizes, please contact us.
