T= 6.0 / 8.0 / 10.0mm

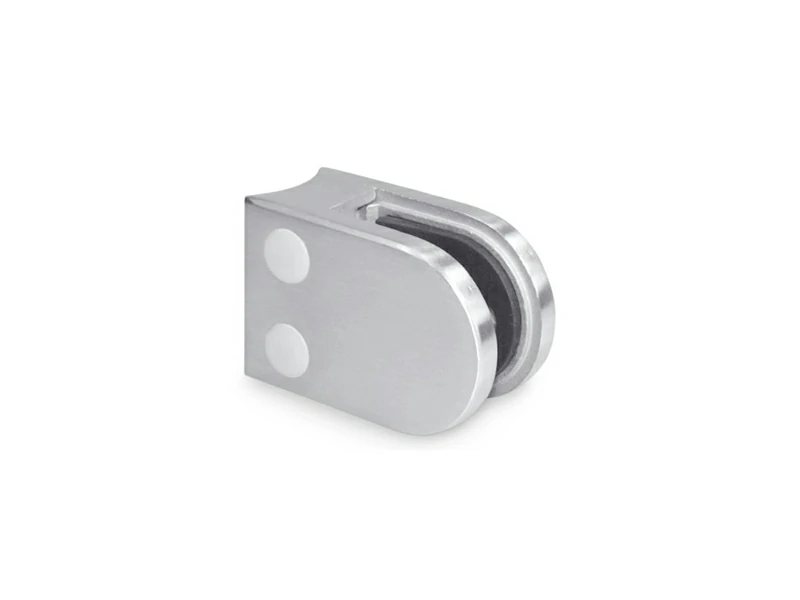

The Glass Railing Clamp is a precision-engineered stainless steel glass clamp designed for securing glass panels in modern balustrades, railings, and handrail systems. Featuring a robust D-type profile, this clamp provides a strong mechanical grip while maintaining a clean, minimalist appearance suitable for both residential and commercial architectural applications.
Manufactured from high-grade 304 stainless steel, 316 stainless steel, or Duplex Stainless Steel 2205, the clamp delivers excellent corrosion resistance, structural stability, and long service life – even in demanding outdoor or coastal environments. The clamp is engineered to hold glass panels securely without the need for drilling holes in the glass, preserving glass integrity and simplifying installation.
Available in flat back and radius back (42.4 mm / 48.3 mm) configurations, this glass clamp adapts easily to square or round posts, making it ideal for a wide range of railing and handrail installations.

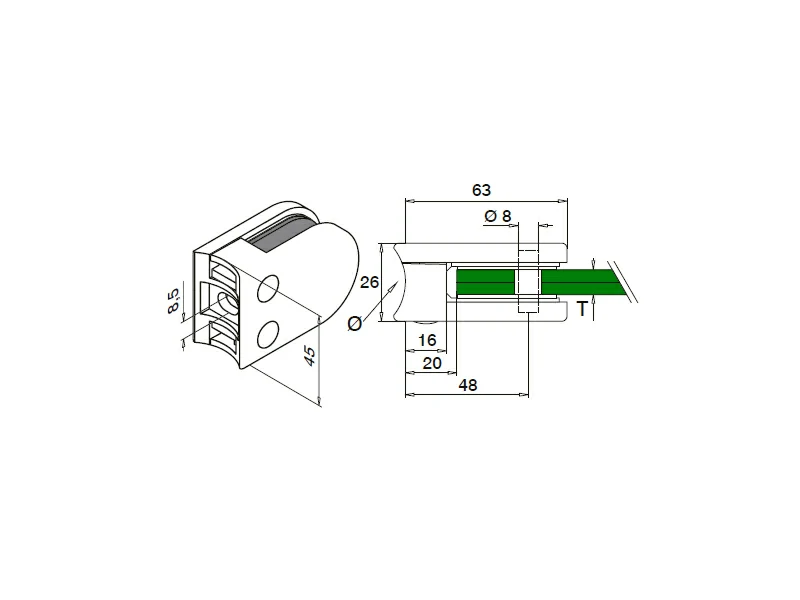

| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | 2023A-E10.00 | 6-10 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
| Glass Clamps | 2023A-E10.42 | 6-10 | 42.4 | ||
| Glass Clamps | 2023A-E10.48 | 6-10 | 48.3 |
Q1: What glass thickness is this glass railing clamp suitable for?
A: The clamp is designed for 6 mm to 10 mm thick glass panels, using appropriate rubber gaskets to ensure a secure fit.
Q2: Do I need to drill holes in my glass panels?
A: No. These clamps are designed to hold glass securely via friction using rubber gaskets. However, if your project requires extra security, a safety pin is provided which would require a 12mm-14mm hole in the glass to accommodate the 8mm pin.
Q3: Can these be used on both round and square posts?
A: Yes. We offer a Flat Back version for square posts or walls and a Radius Back version specifically contoured to sit flush against 42.4mm or 48.3mm round tubing.
Q4: Which stainless steel grade should I choose for my railing?
A: AISI 304: Best for indoor residential use.
AISI 316: Recommended for outdoor use or coastal areas due to higher corrosion resistance.
Duplex 2205: The superior choice for highly corrosive environments, such as beachfronts or swimming pool areas.
Inquiry Glass Clamps in Other Sizes, please contact us.
