Stainless Steel Glass Stand Off Ø30 mm / Dome Head

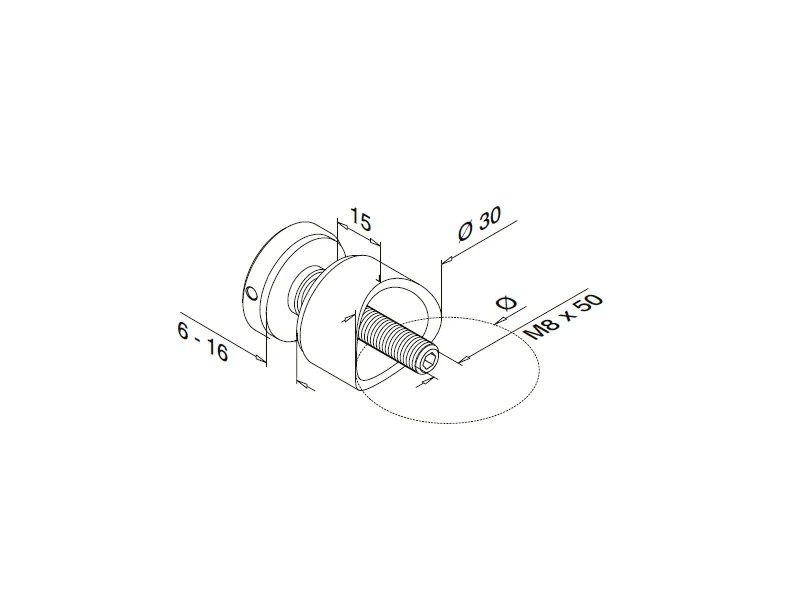

Glass Stand Off Structure

Glass Holder (Standoff) Ø30 mm / Dome Head

The Stainless Steel Glass Stand Off is a precision-engineered dome head glass mounting system designed for secure, stylish installation of glass panels in architectural and decorative projects. It provides a robust, secure anchor point while giving the appearance that the glass is effortlessly floating off the mounting surface. Manufactured from AISI 304, 316, or Duplex SS 2205 stainless steel, this glass standoff ensures excellent corrosion resistance, high strength, and long service life. Available in Satin or Mirror polished finishes, it provides a refined appearance suitable for modern interiors and outdoor architectural structures. With a 30 mm diameter, 15 mm mounting distance, and M8 × 50 mm threaded stud, this dome head standoff offers a reliable and elegant solution for mounting 6 – 16 mm glass panels.

Category Part NO. Ø Material Surface
Glass Holders GH004.00.33 33.7mm AISI 304,316 or Duplex SS 2205 Satin or Mirror polished
Glass Holders GH004.00.42 42.4mm
Glass Holders GH004.00.48 48.3mm

Glass Standoff Info:

  • Advantage: Easier and quicker installatio; Easier cleaning and maintenance
  • Manufacturing Process: Investment Casting + Precision Machining+Polishing
  • Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Park, Bathroom,Entry, Hall, Staircase, Gym
  • Use Place: Bridge Railings / Handrails, Stair Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails
  • Design Style: Contemporary, Modern, European
  • Certificate: ISO9001:2015
  • Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
  • Certificates: Material Certificates, Dimension Inspection Certificate
  • Lead Time : 60days for samples making +60-90days batch production after glass standoff samples approved
  • Warranty Service: 1 Year
  • After-sales Service: Online Technical Support, Return And Replacement

FAQ:

  • Q1: What materials are available for this glass standoff?
    A: It’s available in AISI 304, AISI 316, or Duplex SS 2205 stainless steel. Grades 316 and 2205 are ideal for outdoor or marine use due to their superior corrosion resistance.
  • Q2: What finish options do you offer?
    A: Choose between Satin polished or Mirror polished finishes to match your architectural style.
  • Q3: What does the 15mm mounting distance achieve?
    A: The 15mm mounting distance allows the glass panel to "float" off the mounting surface, creating a distinctive shadow line and depth that enhances the frameless design. It also ensures proper air circulation and simplifies the cleaning process.
  • Q4: How do I ensure the glass is securely fastened?
    A: The system includes a robust M8 x 50mm threaded stud that anchors deep into the structure. The glass standoff body and cap utilize precision threads and typically include rubber or plastic washers to prevent metal-to-glass contact and safely hold the panel within the supported thickness range (6mm to 16mm).

Related Products

Inquiry Stainless Steel Glass Holders and Brackets in other sizes, please contact us.
