T= 8.0 /10.0 / 12.0mm

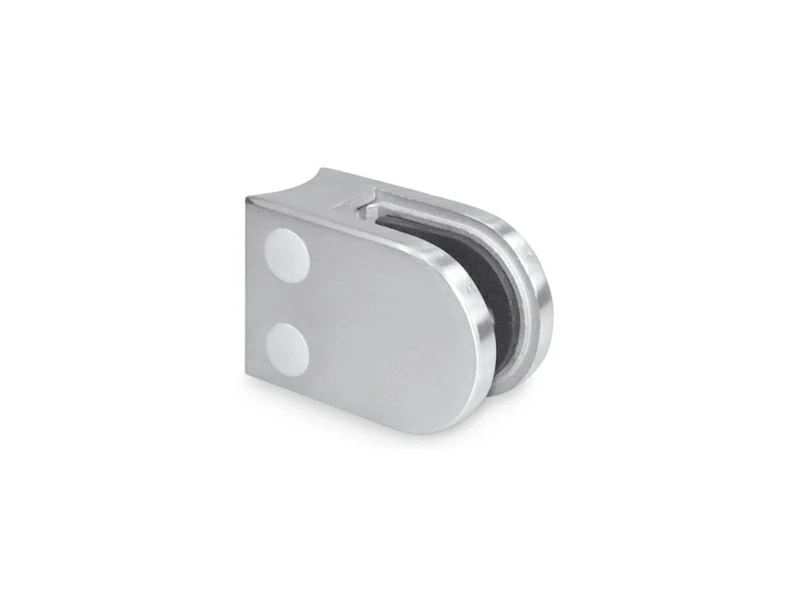

The Handrail Glass Clamp is a high-quality stainless steel D-type glass clamp engineered for securely fixing glass panels in handrail, railing, and balustrade systems. Designed for strength, durability, and a refined appearance, this clamp is ideal for modern glass railing applications in both residential and commercial environments.
Constructed from premium stainless steel 304, 316, or Duplex Stainless Steel 2205, the clamp delivers excellent corrosion resistance and long-term structural performance. Its precision D-shaped design applies even clamping pressure to the glass, ensuring a firm and reliable hold while preserving the integrity of the glass panel.

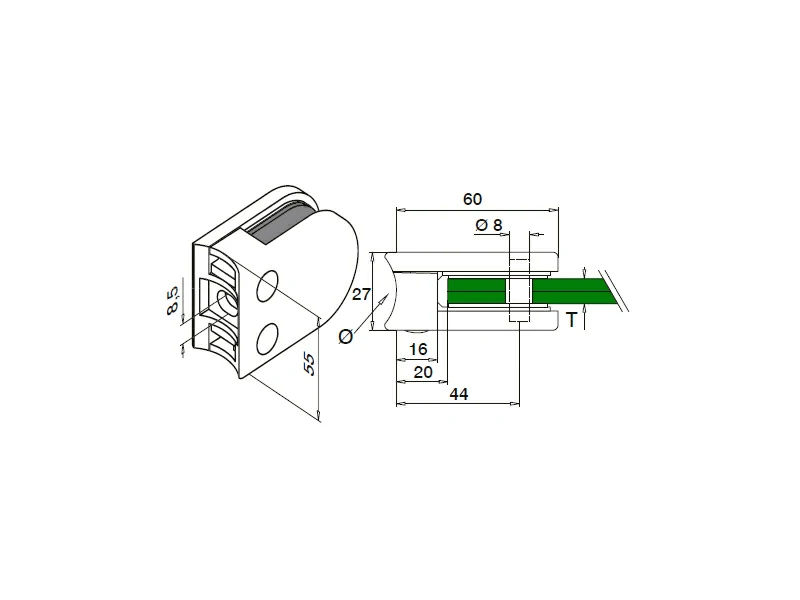

With compact dimensions of 55 mm × 60 mm, the Handrail Glass Clamp is suitable for 8 mm, 10 mm, and 12 mm thick glass. The availability of flat back and radius back (42.4 mm / 48.3 mm) options allows flexible installation on walls, square posts, or standard round handrail tubes. Surface finish options include satin brushed and mirror polished, allowing seamless integration with contemporary architectural designs.
| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | 2023A-E06.00 | 8-12 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
| Glass Clamps | 2023A-E06.42 | 8-12 | 42.4 | ||
| Glass Clamps | 2023A-E06.48 | 8-12 | 48.3 |
Q1: What glass thicknesses does this handrail glass clamp support?
A: This clamp is suitable for 8 mm, 10 mm, and 12 mm thick glass, using appropriate rubber gaskets.
Q2: Do I need to drill holes in my glass panels?
A: No, these clamps are designed to hold the glass securely through a friction fit with rubber gaskets. However, if you choose to use the optional 8mm safety pin for added security, a corresponding hole must be drilled in the glass panel.
Q3: What is the difference between flat back and radius back clamps?
A: Flat back clamps are used on walls or square posts.
Radius back clamps (42.4 mm / 48.3 mm) are designed for round railing or handrial tubes.
Q4: What is the difference between Satin and Mirror finishes?
A: The satin finish provides a brushed, matte industrial look that resists fingerprints, while the mirror polished finish offers a highly reflective, chrome-like shine.
Inquiry Glass Clamps in Other Sizes, please contact us.
