The Handrail Wall Flange is a precision-engineered mounting component designed to securely anchor slotted handrail tubing to vertical surfaces, such as walls or structural posts. This essential tube connector is specifically designed for systems utilizing slotted tubing, providing a robust and stable termination point for the handrail run.
Featuring a U-channel profile, this flange allows for seamless integration with the handrail, maintaining the continuous, sleek aesthetic required in modern architectural glass railing systems. The flange is engineered to fit standard tube diameters—such as 42.4mm or 48.3mm—and is manufactured from high-durability stainless steel (AISI 304 or 316) to ensure lasting structural integrity and corrosion resistance in various environments. With its professional satin or mirror-polished finish, this fitting is an ideal choice for both residential and commercial handrail fittings that prioritize safety, stability, and refined design.

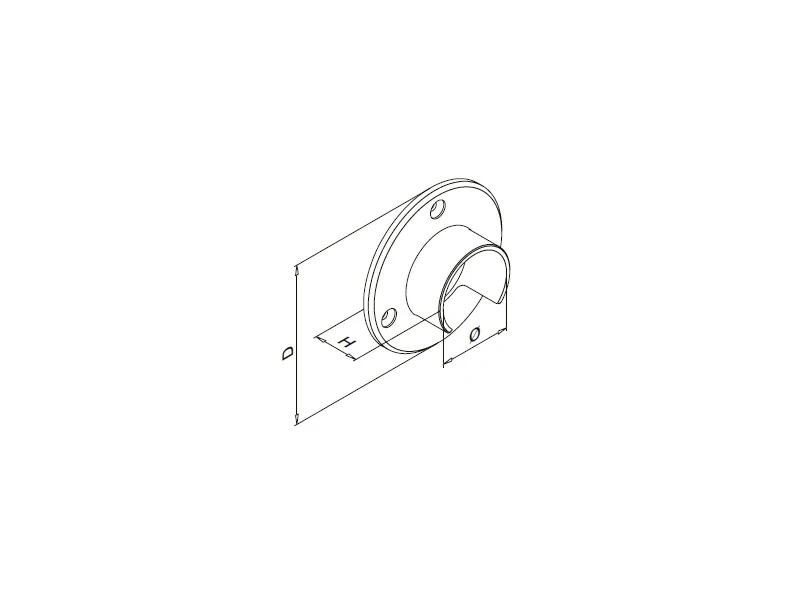

| Category | Part NO. | H | Ø | Material | Surface | Place of Production |
| U-Profile Fittings | L006.42.15 | 30mm | 42.4x1.5mm | Stainless Steel 304 / 316 | Satin or Mirror polished | Shandong, China |
| U-Profile Fittings | L006.48.15 | 35mm | 48.3x1.5mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Flooring / Wall
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after wall flange samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary purpose of this Handrail Wall Flange?
A: The flange serves as a structural anchor point, allowing you to securely terminate a run of slotted handrail tubing against a wall or other flat surface.
Q2. Which handrail tube sizes is this flange compatible with?
A: This component is designed to accommodate standard slotted tubing with outer diameters of 42.4mm or 48.3mm.
Q3. Is this flange suitable for outdoor use?
A: Yes, when fabricated from AISI 316-grade stainless steel, this flange offers excellent resistance to corrosion, making it perfect for exterior or coastal railing installations.
Q4. Does the U-channel design affect installation?
A: The U-channel design is intended to provide a secure, flush fit for the handrail tube, simplifying the alignment process and ensuring the handrail is held firmly in place.
Q5. What surface finishes are available?
A: To match the rest of your architectural hardware, the wall flange is available in both premium satin (brushed) and mirror-polished finishes.
Inquiry Stinless Steel U-profile Fittings in other sizes, please contact us.
