Small Glass Clamp D Type, Flat & Radius Back, For 6 and 8mm Glasses
Small Stainless Steel Glass Clamps D Type
Black D Type Glass Dlamp

Small Glass Clamp D Type, Flat & Radius Back, For 6 and 8mm Glasses

The Small Glass Clamp (D Type) is a compact, high-performance stainless steel glass clamp designed to securely fix glass panels in railing, balustrade, and shower enclosure systems. Featuring a classic D-shaped profile, this clamp provides a strong and stable grip while maintaining a clean, modern appearance.

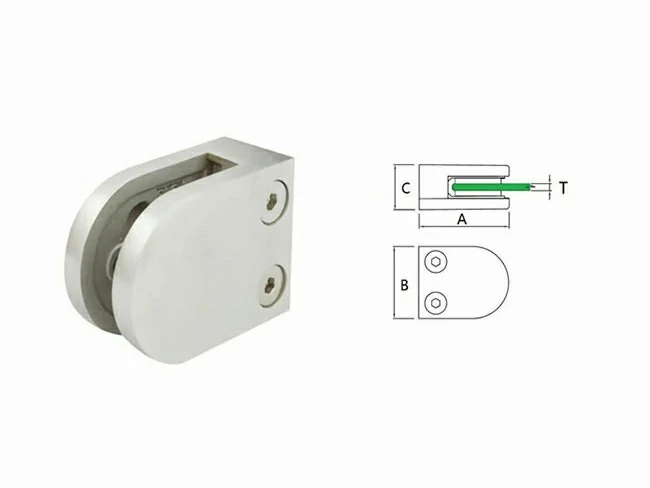

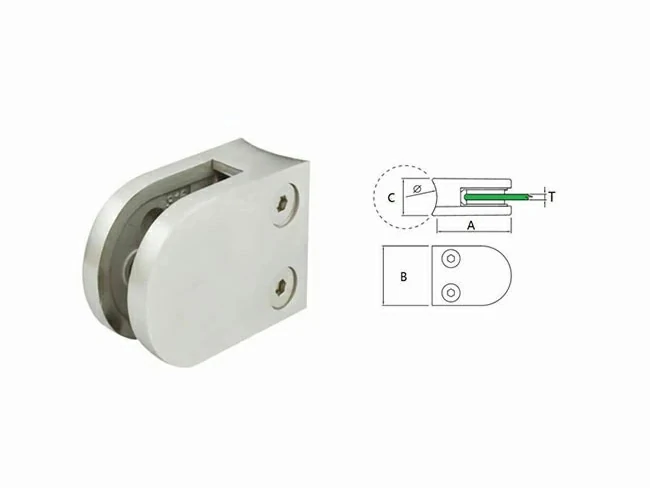

Engineered for 6mm and 8mm glass, the clamp is available in flat back and radius back designs, making it suitable for both flat surfaces and round tubes. Manufactured from high-quality 304 or 316 stainless steel, it offers excellent durability and corrosion resistance, making it ideal for indoor and outdoor railing applications.

ll Category Part NO. Main Dimension (mm) Ø Glass mm Material Surface
A B C
Glass Clamp GC01.00 50 40 23 Flat 6.0/8.0 Stainless Steel 304 / 316 Satin or Mirror polished
Glass Clamp GC01.38 50 40 23 38.1 6.0/8.0
Glass Clamp GC01.50 50 40 23 50.8 6.0/8.0

Glass Clamp Basic Info:

  1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
  2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
  3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
  4. Installation Location: Flooring
  5. Design Style: Contemporary, Modern, European, Craftsman
  6. Certificate: ISO9001:2015
  7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
  8. Certificates: Material Certificates, Dimension Inspection Certificate
  9. Lead Time : 60days batch production after glass clamp samples approved
  10. Warranty Service: 1 Year
  11. After-sales Service: Online Technical Support, Return And Replacement

FAQ:

  • Q1: Should I choose a flat or radius back for my glass clamp?
    A: This depends on your mounting surface. Choose the flat back if you are mounting to a wall or a square post. Choose the radius back if you are attaching the glass clamp to a round tube (available for 38.1mm or 50.8mm diameters).
  • Q2: Is 304 stainless steel sufficient for an outdoor railing?
    A: For general outdoor use in non-coastal areas, 304 is often sufficient. however, for coastal projects (within 5 miles of the ocean) or poolside installations, we highly recommend 316 Stainless Steel to prevent tea-staining and pitting.
  • Q3: Can this Small Glass Clamp hold glass thicker than 8mm?
    A: This specific model is optimized for 6mm and 8mm glass. For thicker glass panels (10mm or 12mm), please check our "Large D-Type" or "Square" glass clamp options to ensure a proper fit.
  • Q4: Does it come with the rubber gaskets?
    A: Yes, our clamps include high-quality rubber gaskets that protect the glass from direct contact with the steel and ensure a non-slip, secure grip.
  • Q5: Are different finishes available?

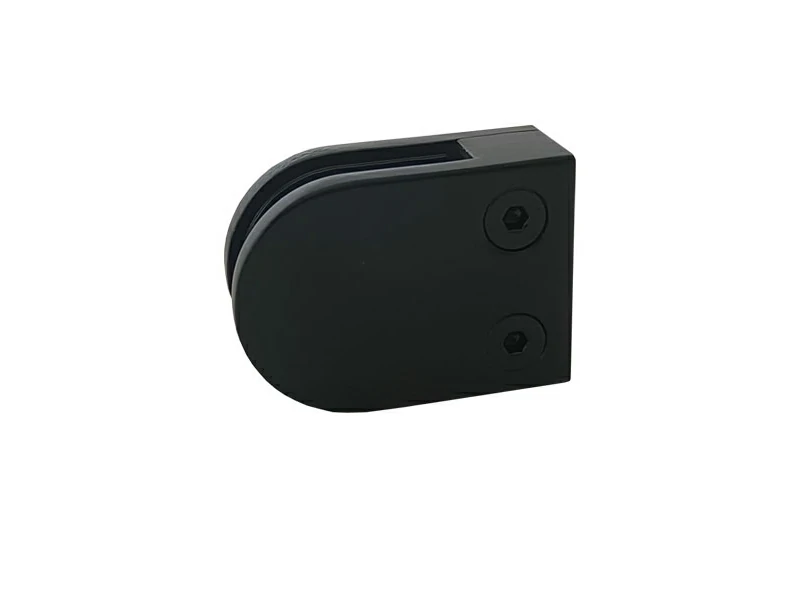

    A: Yes. The clamp is available in satin polished, mirror polished, white, and black finishes to match different design requirements.
