T= 6.0 / 6.76 / 8.0 / 8.76mm

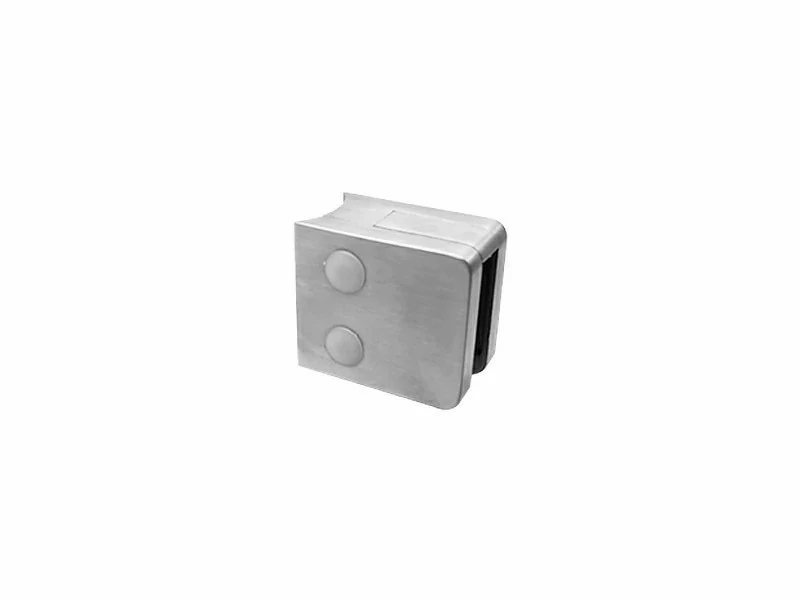

The SS Glass Clamp (Square Type) is a high-security hardware solution designed for modern railing systems, balustrades, and shower enclosures. Engineered with an integrated safety plate, this clamp offers superior protection against accidental glass displacement, making it the ideal choice for high-traffic residential and commercial environments.
This premium glass clamp is constructed from high-grade stainless steel to ensure long-lasting structural integrity and exceptional resistance to corrosion. Its sharp, square profile provides a modern aesthetic while delivering a high-torque grip on glass panels. Designed for versatility, these clamps are available with both Flat Back configurations for walls or square posts and Radius Back designs for seamless mounting on round handrail tubes.

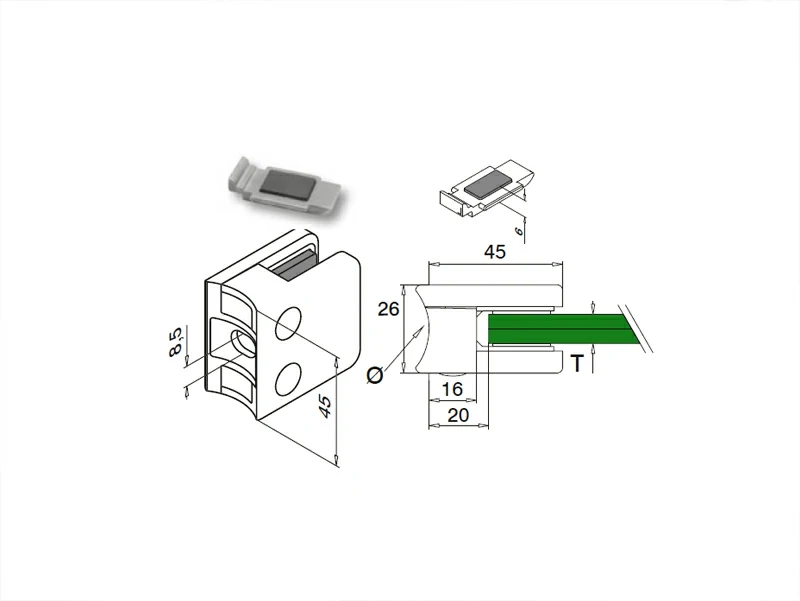

| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC007.00 | 6-8.76 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
| Glass Clamps | GC007.33 | 6-8.76 | 33.7 | ||
| Glass Clamps | GC007.42 | 6-8.76 | 42.4 |
Q1: What is the benefit of the safety plate in this SS glass clamp?
A: The safety plate provides a mechanical stop that prevents the glass from slipping out of the clamp in the event of gasket wear or unexpected impact, ensuring the highest safety standards for elevated railing systems.
Q2: What glass thicknesses are compatible with this clamp?
A: The clamp supports glass thicknesses from 6.0 mm to 8.76 mm, including laminated glass sizes such as 6.76 mm and 8.76 mm.
Q3: Which material grade is best for a shower enclosure?
A: For indoor shower enclosures, AISI 304 is often sufficient. However, if the enclosure is in a high-moisture environment or used with harsh cleaning chemicals, AISI 316 is recommended for superior rust resistance.
Q4: Do I need to drill the glass to use the safety plate?
A: Typically, the safety plate works in conjunction with a small notch or hole in the glass to lock it into place. This ensures the panel cannot move even if the friction grip is compromised.
Q5: Can I mount these to round handrails?
A: Yes. You should select the Radius Back option designed for either 37.3mm or 42.4mm diameter tubes to ensure a secure, flush-mounted fit.
Inquiry Glass Clamps in Other Sizes, please contact us.
