Stainless Glass Holder Ø30 mm / Flat Head

Glass Holder (Standoff) Ø30 mm / Flat Head

The Stainless Glass Holder is a precision-engineered flat head glass mounting fitting designed to secure glass panels with strength and style. Constructed from high-quality AISI 304, 316, or Duplex SS 2205 stainless steel, it delivers excellent corrosion resistance and long-lasting performance in both indoor and outdoor environments. With a 30 mm diameter and a choice of M8 × 50, 60, 70, 80, or 90 mm threaded studs, this glass holder is suitable for glass panels 6 mm to 16 mm thick. Available in Satin or Mirror polished finishes, it combines functionality with a clean, contemporary appearance ideal for architectural and decorative applications. This model features a sleek Flat Head cap, providing a clean, minimalist, and integrated look that is highly popular in modern commercial and residential design.

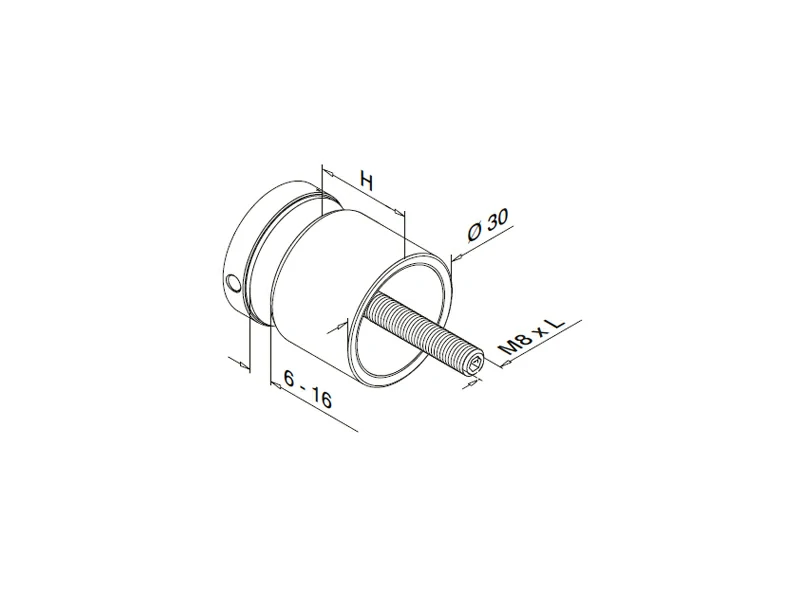

Category	Part NO.	H	L	Material	Surface
Glass Holders	GH005.15.00	15mm	M8x50	AISI 304,316 or Duplex SS 2205	Satin or Mirror polished
Glass Holders	GH005.20.00	20mm	M8x60
Glass Holders	GH005.30.00	30mm	M8x70
Glass Holders	GH005.40.00	40mm	M8x80
Glass Holders	GH005.50.00	50mm	M8x90

Glass Holder/Standoff Info:

Manufacturing Process: Investment Casting + Precision Machining+Polishing
Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
Installation Location: Flooring
Design Style: Contemporary, Modern, European, Craftsman
Certificate: ISO9001:2015
Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
Certificates: Material Certificates, Dimension Inspection Certificate
Lead Time : 60days for samples making +60-90days batch production after glass holder samples approved
Warranty Service: 1 Year
After-sales Service: Online Technical Support, Return And Replacement

FAQ:

Q1: What is the main benefit of the Flat Head design?
A: The Flat Head design provides a more contemporary, low-profile, and clean look than traditional rounded caps. When tightened, the flat head sits flush or near-flush with the glass surface, maintaining a streamlined and unobtrusive aesthetic.
Q2: What are the available sizes of threaded studs?
A: Each holder comes with M8 × 50, 60, 70, 80, or 90 mm studs for flexible installation depth.
Q3: How do the various M8 threaded stud lengths (50mm–90mm) affect installation?
A: The longer stud options (M8 x 90mm, etc.) are designed to penetrate deeper into thick or irregular wall structures (like masonry, concrete, or deep wood studs), ensuring a solid, safe, and load-bearing attachment point for the Stainless Glass Holder.
Q4: Where can these glass holders be used?
A: They are perfect for architectural glass installations, modern interiors, balustrades, and commercial façades requiring both strength and visual appeal.
