Stainless Standoffs for Glass Ø30 mm Dome Head

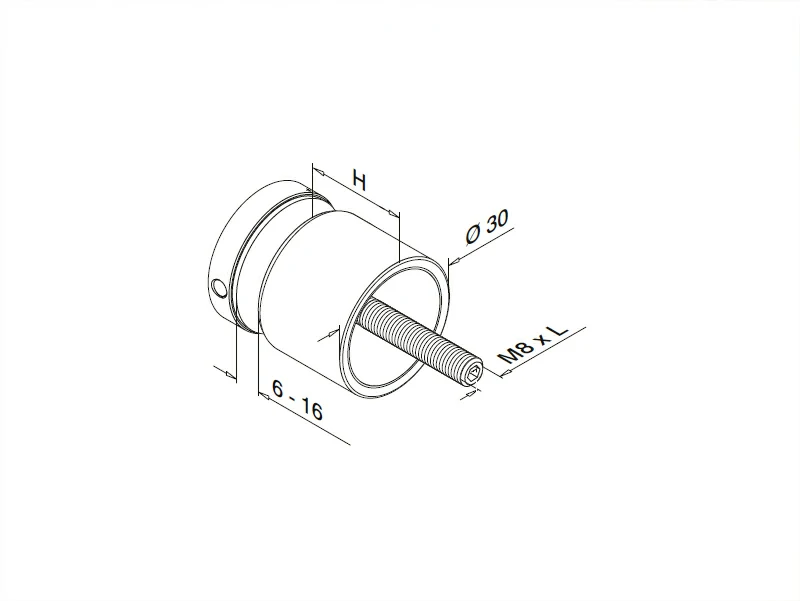

Stainless Standoffs for Glass Structure

Glass Holder (Standoff) Ø30 mm / Dome Head

This Stainless Standoff for Glass features a sleek dome-head design with a 30 mm diameter and is engineered to work with glass thicknesses from 6 mm to 16 mm. Its M8 threaded bolt ensures easy, secure installation across a wide range of architectural mounting surfaces. Available in Satin or Mirror polished finishes, these standoffs complement modern glass systems while offering maximum durability. Designed for strength, safety, and visual appeal, these glass standoffs are manufactured in AISI 304, 316, or Duplex SS 2205 stainless steel and are available in popular diameters Ø33.7 mm, Ø42.4 mm, and Ø48.3 mm.

Category Part NO. Ø Head Style Glass Thickness Range Installation Thread Material Surface
Glass Holders GH009.00.33 33.7mm Dome Head 6 mm to 16 mm M8 threaded bolt AISI 304,316 or Duplex SS 2205 Satin or Mirror polished
Glass Holders GH009.00.42 42.4mm
Glass Holders GH009.00.48 48.3mm

Glass Standoff Basic Info:

  • Manufacturing Process: Investment Casting + Precision Machining+Polishing
  • Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
  • Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
  • Installation Location: Flooring
  • Design Style: Contemporary, Modern, European, Craftsman
  • Certificate: ISO9001:2015
  • Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
  • Certificates: Material Certificates, Dimension Inspection Certificate
  • Lead Time : 60days for samples making +60-90days batch production after glass standoff samples approved
  • Warranty Service: 1 Year
  • After-sales Service: Online Technical Support, Return And Replacement

FAQ:

  • Q1: What is the benefit of choosing AISI 316 Stainless Steel for a glass standoff?
    A: AISI 316 Stainless Steel contains Molybdenum, which gives it superior corrosion resistance compared to 304, making it the preferred choice for exterior applications, particularly those near salt water or in highly polluted industrial areas.
  • Q2: Why are larger diameters like Ø=42.4mm available?
    A: Larger diameters (Ø=33.7mm/42.4mm/48.3mm) are used for heavier or larger glass panels, or in applications with high load-bearing requirements (like high-traffic railings). The increased size provides greater surface area and structural strength.
  • Q3: Does the glass require a special preparation for installation?
    A: Yes, the glass panel must be drilled with precise holes to accommodate the standoff body and allow the M8 threaded bolt to pass through. All load-bearing glass standoff systems require toughened or laminated safety glass.
