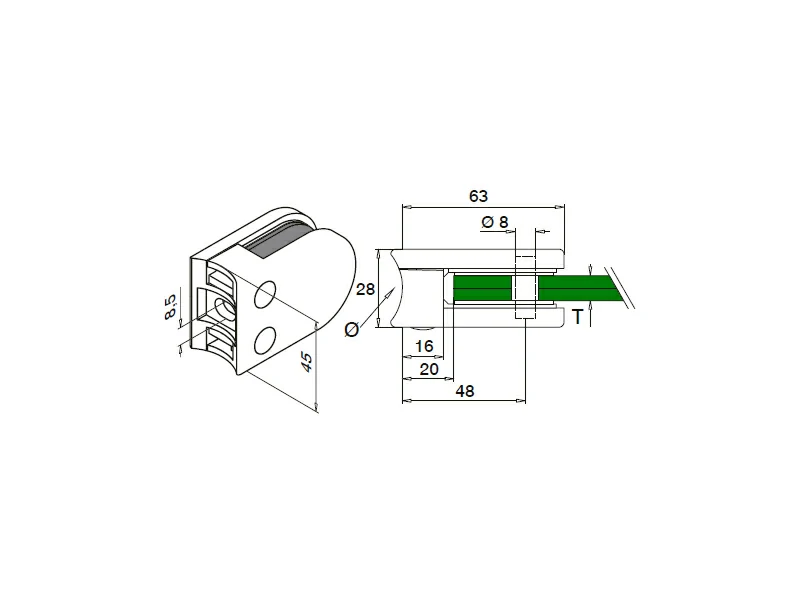

T= 6 / 6.76/ 8 / 8.76 / 9.52 / 10 / 10.76mm

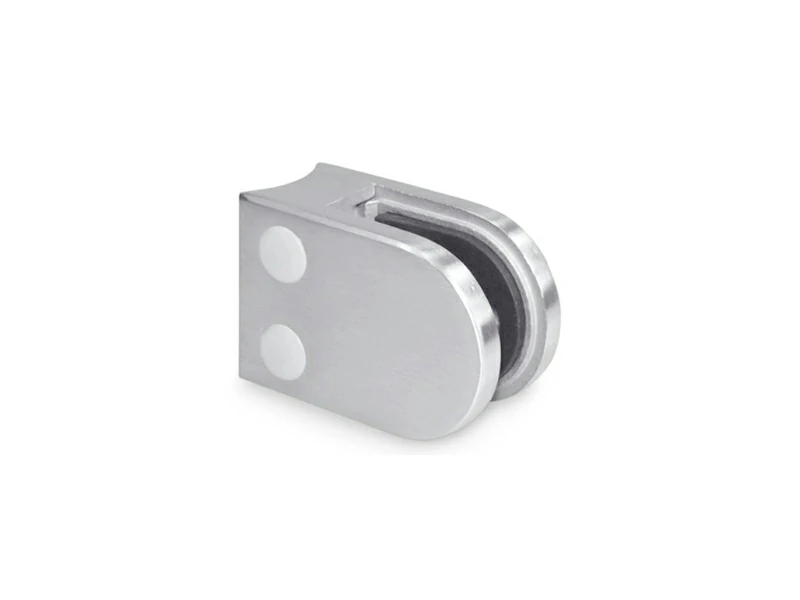

The Glass D Clamp is a high-performance stainless steel glass clamp designed for securely fixing glass panels in balustrades, railings, and handrail systems. Featuring a compact D-shaped body, this clamp delivers reliable holding strength while maintaining a clean, modern aesthetic that complements frameless glass designs.
Manufactured from premium stainless steel 304, 316, or Duplex Stainless Steel 2205, the Glass D Clamp offers excellent corrosion resistance, structural stability, and long-term durability. Surface finish options include satin brushed and mirror polished, allowing seamless integration with contemporary architectural designs.
The clamp is available in flat back and radius back (42.4 mm / 48.3 mm) versions, allowing seamless installation on square posts, walls, or standard round railing and handrail tubes. Installation is simple and efficient, using screws or appropriate fasteners, with no need to drill holes in the glass.
| Category | Part NO. | T | Ø | Material | Surface |
| Glass Clamps | GC003.00 | 6-10.76 | Flat | AISI 304,316 or Duplex SS 2205 | Satin or Mirror polished |
| Glass Clamps | GC003.42 | 6-10.76 | 42.4 | ||
| Glass Clamps | GC003.48 | 6-10.76 | 48.3 |
Q1: Which material grade is right for my project?
A: AISI 304: Ideal for indoor residential use away from moisture.
AISI 316: The standard for outdoor installations or areas with moderate exposure to the elements.
Duplex 2205: Recommended for coastal regions or swimming pool areas where maximum corrosion resistance is required.
Q2: What glass thicknesses does this Glass D Clamp support?
A: The clamp supports 6 mm to 10.76 mm glass, including laminated glass sizes such as 6.76 mm and 8.76 mm, using appropriate rubber gaskets.
Q3: Do I need to drill holes in the glass panels?
A:No, the Glass D Clamp is primarily designed as a friction-fit system. However, if you choose to use the optional 8mm safety pin for added security, a corresponding hole must be drilled in the glass at 48mm from the edge.
Q4: What is the difference between flat back and radius back clamps?
A: Flat back clamps are suitable for walls or square posts.
Radius back (42.4 mm / 48.3 mm) clamps are designed for round railing or handrial tubes.
Q5: How is the clamp fastened to the post or wall?
A: The clamp features an 8.5mm mounting hole in the back. It is typically secured to the mounting surface using a cap screw or fastener appropriate for the post material
Inquiry Glass Clamps in Other Sizes, please contact us.
