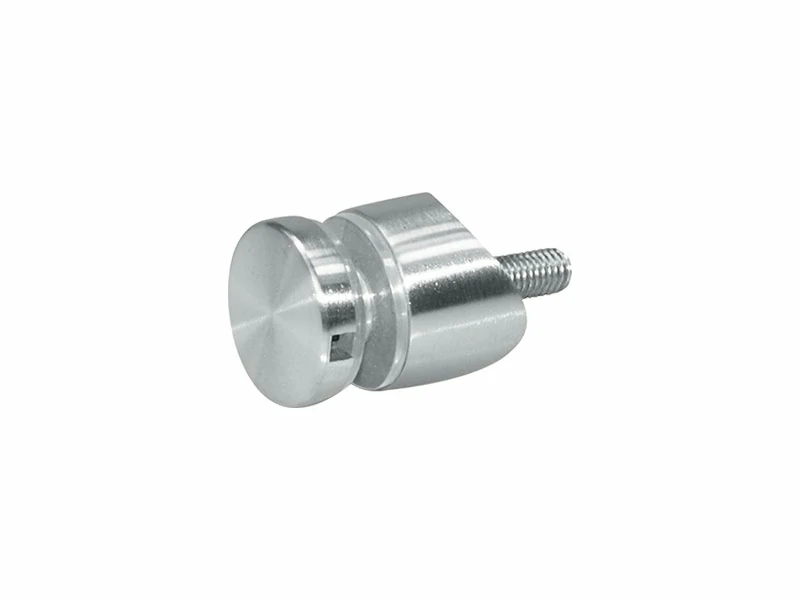

The Stainless Steel Glass Stand Ø30 mm is a precision-engineered mounting standoff designed to securely support glass panels in modern railing, partition, and façade systems. Crafted from premium-grade AISI 304 or 316 stainless steel, this glass stand provides exceptional strength, corrosion resistance, and a sleek aesthetic. Available in both satin and mirror polished finishes, it ensures long-lasting performance in interior and exterior installations. The Stainless Steel Glass Stand Ø30 mm offers both aesthetic appeal and structural reliability for for glass railing systems, balcony balustrades, shower enclosures, glass partitions, and architectural façades.

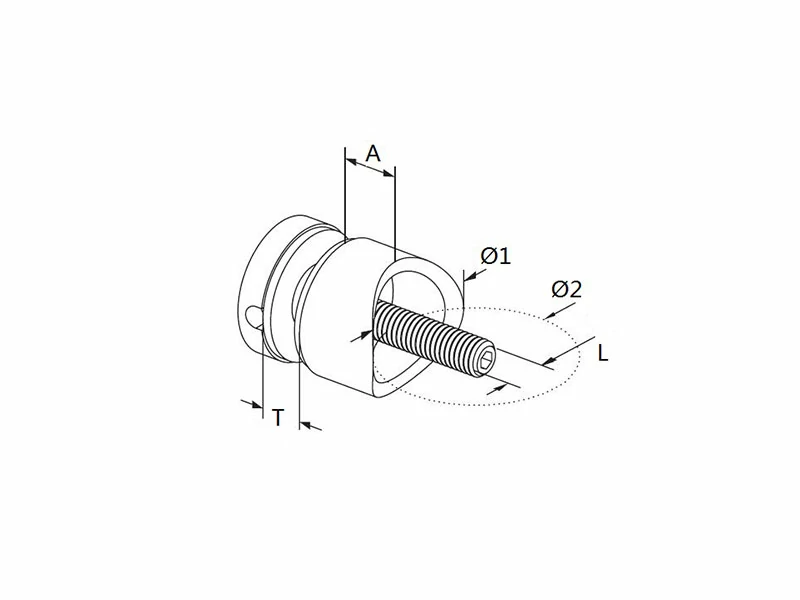

| Category | Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø1 (mm) |
Ø2 (mm) |
T (mm) |
L (mm) |
Material | Surface | Place of Production |
| Glass Holders and Brackets | H0100 |
Flat
|
15 | 30 | Flat | 6-18 | M8x50 | Stainless Steel 304 / 316 | Satin or Mirror polished | Shandong, China |
| Glass Holders and Brackets | H0138 |
38.1
|
10 | 30 | 38.1 | 6-18 | M8x50 | |||
| Glass Holders and Brackets | H0150 |
50.8
|
10 | 30 | 50.8 | 6-18 | M8x50 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 50days batch production after glass standoff samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Inquiry Stainless Steel Glass Holders and Brackets in other sizes, please contact us.
