Stainless Steel Glass Standoff Ø30 mm / Flat Head

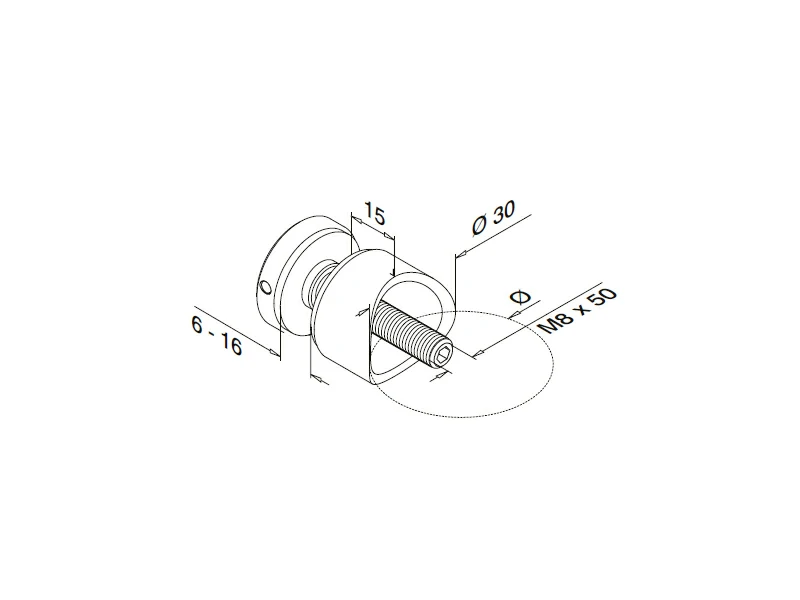

Stainless Steel Glass Standoff Structure

Glass Holder (Standoff) Ø30 mm / Flat Head

The Stainless Steel Glass Standoff is a premium architectural fastener designed to secure glass panels to walls, posts, or other vertical surfaces, creating a modern, floating, and frameless aesthetic. Constructed from AISI 304, 316, or Duplex SS 2205 stainless steel, this glass standoff offers excellent strength, corrosion resistance, and long-term durability. Featuring Satin or Mirror polished finishes, the standoff provides a sleek, modern appearance suitable for both interior and exterior use. With a 30 mm diameter, 15 mm mounting distance, and an M8 × 50 mm threaded stud, it delivers stable support for glass panels 6 mm – 16 mm thick.

Category Part NO. Ø Material Surface
Glass Holders GH003.00.33 33.7mm AISI 304,316 or Duplex SS 2205 Satin or Mirror polished
Glass Holders GH003.00.42 42.4mm
Glass Holders GH003.00.48 48.3mm

Glass Standoff Info:

  • Advantage: Easier and quicker installatio; Easier cleaning and maintenance
  • Manufacturing Process: Investment Casting + Precision Machining+Polishing
  • Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Park, Bathroom,Entry, Hall, Staircase, Gym
  • Use Place: Bridge Railings / Handrails, Stair Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails
  • Design Style: Contemporary, Modern, European
  • Certificate: ISO9001:2015
  • Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
  • Certificates: Material Certificates, Dimension Inspection Certificate
  • Lead Time : 60days for samples making +60-90days batch production after glass standoff samples approved
  • Warranty Service: 1 Year
  • After-sales Service: Online Technical Support, Return And Replacement

FAQ:

  • Q1: Is drilling required for the glass panel?
    A: Yes. Glass standoffs require pre-drilled holes in the glass panel for the mounting bolt/stud to pass through. The holes must be precisely aligned with the structural mounting points.
  • Q2: What is the purpose of the 15mm mounting distance?
    A: The 15mm mounting distance creates an intentional gap between the glass panel and the wall or mounting surface. This separation enhances the frameless "floating" aesthetic, allows for minor adjustments, and prevents the glass from scratching the mounting surface.
  • Q3: What glass thicknesses can it support?
    A: Suitable for 6 mm – 16 mm glass panels.
  • Q4: Is installation easy?
    A: Yes. Each standoff includes an M8 × 50 mm threaded stud for simple, secure installation using standard tools.
