Stainless Steel Glass Holder Ø30 mm Flat Head

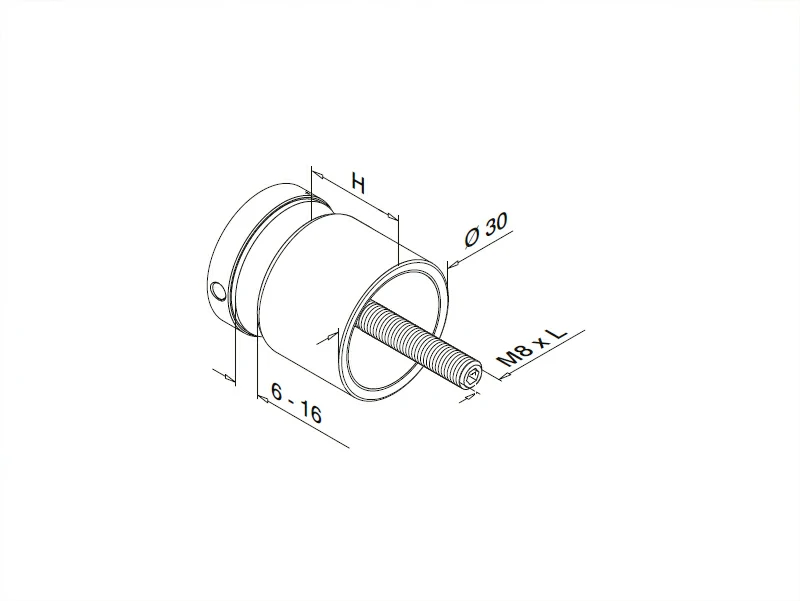

Glass Holder Ø30 mm / Flat HeadStructure

Glass Holder (Standoff) Ø30 mm / Flat Head

The architectural Stainless Steel Glass Holder is a robust and stylish glass standoff system designed for mounting glass panels a set distance from a wall or structural surface. The mount features a clean, minimal 30 mm diameter and a streamlined flat head design. It is engineered to accommodate glass thicknesses ranging from 6 mm to 16 mm. The system is secured using a selection of M8 threaded bolts (M8x50, M8x60, M8x70, M8x80, or M8x90) and is available in multiple standoff lengths (H=15mm, 20mm, 30mm, 40mm, or 50mm). Crafted from high-grade AISI 304, 316, or Duplex SS 2205, it offers superior durability and corrosion resistance.

Category	Part NO.	H	L	Head Style	Glass Thickness Range	Material	Surface
Glass Holders	GH010.15.00	15mm	M8x50	Flat Head	6 mm to 16 mm	AISI 304,316 or Duplex SS 2205	Satin or Mirror polished
Glass Holders	GH010.20.00	20mm	M8x60
Glass Holders	GH010.30.00	30mm	M8x70
Glass Holders	GH010.40.00	40mm	M8x80
Glass Holders	GH010.50.00	50mm	M8x90

Glass Holder Basic Info:

Manufacturing Process: Investment Casting + Precision Machining+Polishing
Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
Installation Location: Flooring
Design Style: Contemporary, Modern, European, Craftsman
Certificate: ISO9001:2015
Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
Certificates: Material Certificates, Dimension Inspection Certificate
Lead Time : 60days for samples making +60-90days batch production after glass holder samples approved
Warranty Service: 1 Year
After-sales Service: Online Technical Support, Return And Replacement

FAQ:

Q1: What is the primary difference between a Flat Head and a Dome Head glass standoff?
A: A Flat Head glass standoff provides a minimal, flush surface that minimizes visual intrusion. A Dome Head offers a rounded, more prominent profile. The choice is purely aesthetic, but the Flat Head is currently preferred for ultra-modern designs.
Q2. How do the different bolt lengths (M8x50 to M8x90) affect installation?
A: The bolt length determines the penetration depth into the supporting structure (concrete, wood, steel). Longer bolts (M8x90) are typically used when anchoring into softer or less stable materials to ensure a strong, secure connection, while the glass holder body length (H) controls the gap between the glass and the wall.
Q3: Are different bolt lengths available?
A: Yes - M8x50, M8x60, M8x70, M8x80, and M8x90 threaded bolts.
Q4. Can I choose different appearance finishes?
A: Yes - choose between Satin or Mirror polished stainless steel.
