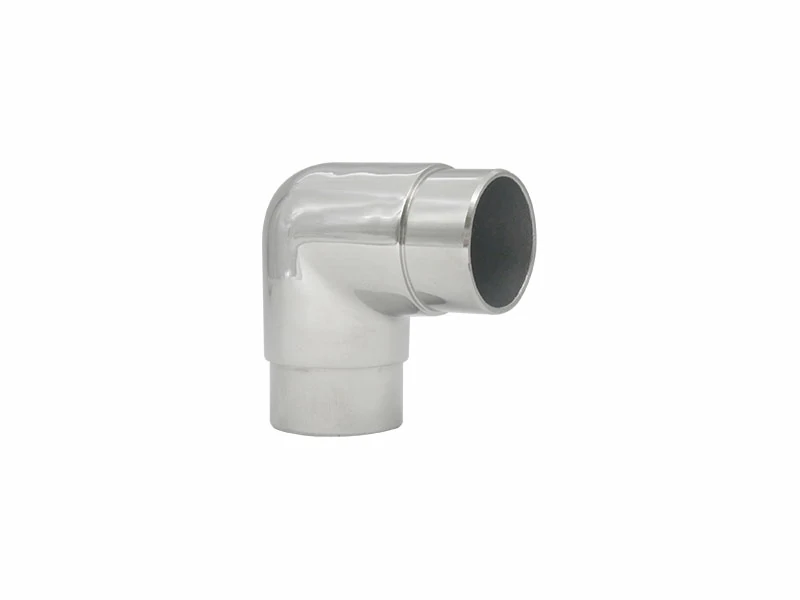

The 90 Degree Flush Elbow is a precision-crafted tube connector designed for joining two round tubes at a perfect 90-degree angle. Commonly used in handrail fittings and architectural railing systems, this connector ensures a smooth, seamless transition between tubes, delivering a clean and professional appearance.
Manufactured from high-quality Stainless Steel 304 or 316, this flush elbow provides excellent strength, durability, and corrosion resistance – ideal for both interior and exterior installations. Available in Satin or Mirror Polish finishes, it offers long-term performance with minimal maintenance.
Multiple diameter and length options allow easy integration into a variety of railing and tubing configurations, ensuring compatibility across residential, commercial, and industrial projects.
|
Category |
Part NO. |
Fit for Tube (mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Tube Joiners |
A0225 |
Ø25.4 x 1.5
|
35 |
25.4 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
| Tube Joiners |
A0238 |
Ø38.1 x 1.5
|
51 |
38.1 |
|||
| Tube Joiners |
A0250 |
Ø50.8 x 1.5
|
60 |
50.8 |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Lead Time : 50days batch production after handrail elbow samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is a 90 Degree Flush Elbow?
A: A 90 Degree Flush Elbow is a stainless steel fitting used to connect two tubes at a 90-degree angle, creating a seamless and continuous handrail line.
Q2: What tube sizes does this fitting support?
A: This connector is compatible with tube diameters:
Ø25.4 mm × 1.5 mm
Ø38.1 mm × 1.5 mm
Ø50.8 mm × 1.5 mm

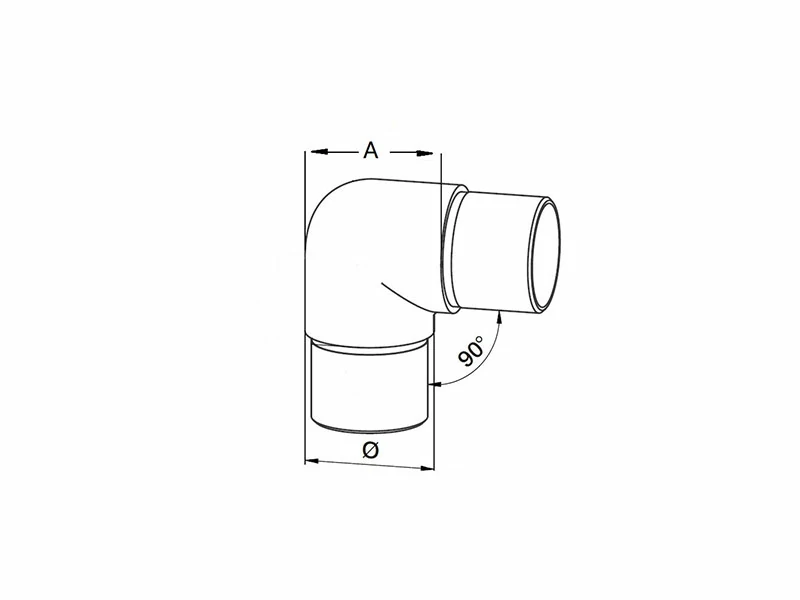

Q3: How are the dimensions Ø and Dimension A used for installation?
A: The Ø indicates the diameter and thickness of the tube this 90 Degree Flush Elbow is compatible with (e.g., $\text{Ø}50.8\text{mm} \times 1.5$mm). Dimension A is crucial for fabrication, as it provides the center-to-end length of the fitting, helping installers calculate the required length of the adjoining pipe segments.
