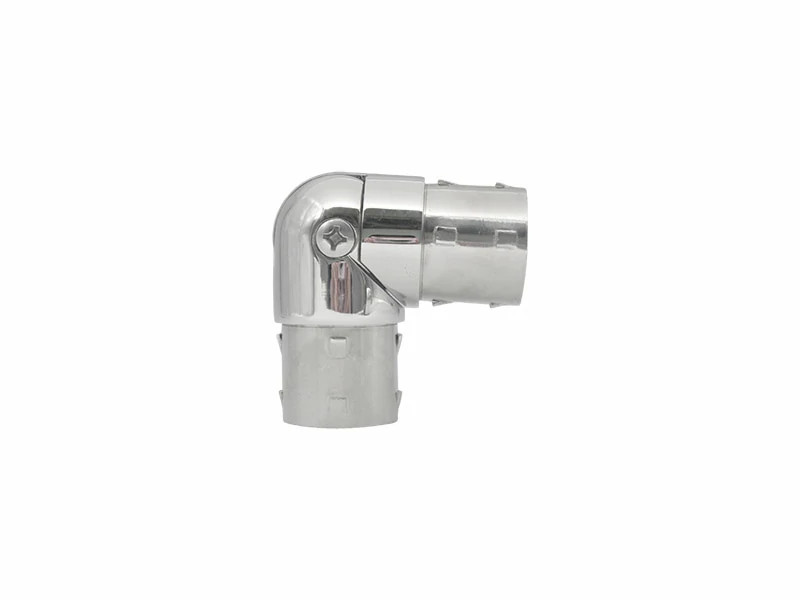

The Stainless Steel Adjustable Flush Joiner is a premium handrail fitting designed for seamlessly connecting two sections of railing tubing at a variable angle. This fitting is specifically ideal for applications such as staircases or ramps where a fixed, 90-degree angle may not be suitable.
The joiner features an integrated locking mechanism that allows the angle to be adjusted and securely fixed into the desired position. Crafted from durable, corrosion-resistant stainless steel (Grade 304 or 316), this Adjustable Flush Joiner is suitable for both indoor and outdoor use. Its flush design ensures a polished, clean finish that enhances the overall aesthetic of the handrail system. This versatile connector is compatible with standard tube diameters (Ø38.1mm / Ø50.8mm) and is available in Satin or Mirror polished finishes, supporting a wide range of design preferences and project specifications.
|

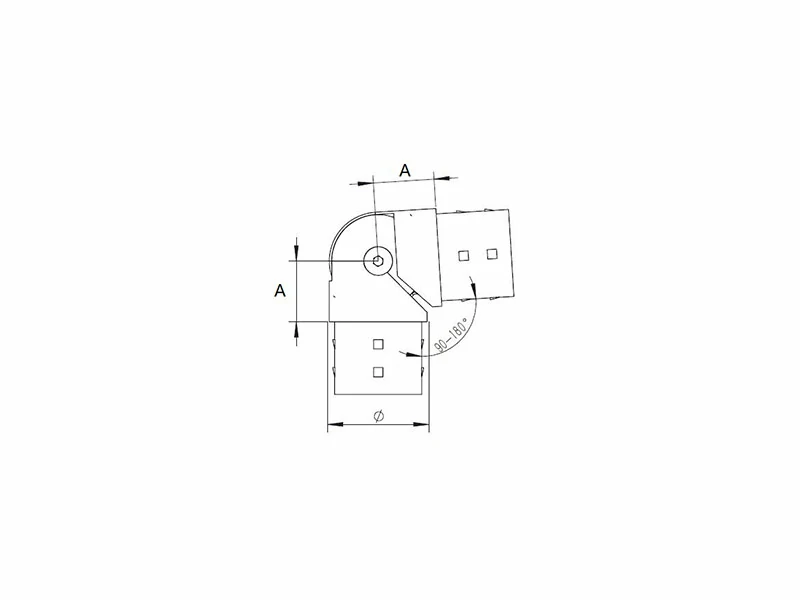

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Applications |
| Tube Joiners |
A0838 |
Ø38.1 x 1.5
|
22 |
38.1 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Staircases, Ramps, etc. |
| Tube Joiners |
A0850 |
Ø50.8 x 1.5
|
31 |
50.8 |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Lead Time : 50days batch production after tube connector samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: Where should I use an Adjustable Flush Joiner instead of a fixed elbow?
A: This tube connector is essential for staircases or ramps where the angle of the handrail run is not a standard 90 or 180 degrees. It allows the installer to precisely match the pitch of the stairs or ramp for a safe and accurate fit.
Q2: How is the angle adjusted and secured?
A: The angle is adjusted manually to the required pitch. It is then secured using the visible locking mechanism, which is typically a set screw or bolt, providing a fixed, reliable joint.
Q3: Is this Adjustable Flush Joiner suitable for exterior applications?
A: Yes, it is made from durable stainless steel (Grade 304 or 316). The 316 grade is especially recommended for harsh outdoor, coastal, or marine environments due to its superior corrosion resistance.
Q4: What tube sizes does this handrail fitting accommodate?
A: This specific elbow joiner is available to fit common handrail tube diameters, such as Ø38.1mm and Ø50.8mm.
