The Stainless Steel Adjustable Handrail Stem is an adaptable support post designed to connect handrail saddle plates and mounting hardware to baluster posts, end caps, or wall bases. Engineered for custom staircase runs, access ramps, and complex architectural layouts, this adjustable Handrail Stem allows for precise alignment, height adjustments, and angle positioning during installation.

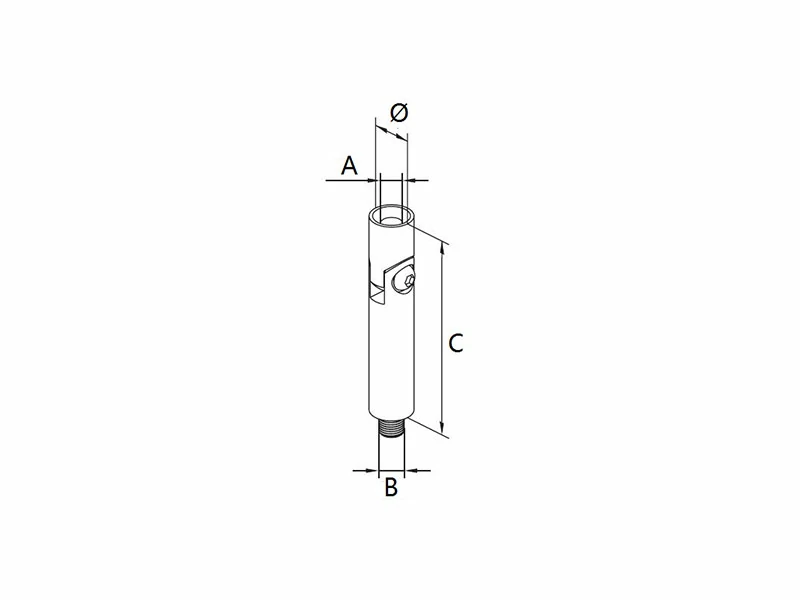

Featuring a 14 mm outer body diameter (Ø), the stem is equipped with an upper bore/opening (A) that accepts M6 threaded rods or support pins, which are held securely in place by an integrated side hex/Allen locking screw. The bottom end features an M8 male threaded stud (B) for firm anchoring into post end caps, wall flanges, or structural supports. Available in main body lengths (C) of 47 mm and 71 mm (excluding the bottom threaded stud), this fitting is precision-machined from premium AISI 304, AISI 316, or Duplex SS 2205 stainless steel. Offered in brushed satin or mirror-polished surface finishes, this versatile component serves as a durable, highly corrosion-resistant Handrail Support solution for both indoor and outdoor railing configurations.
|
Category |
Part NO. |
A (mm) |
B (mm) |
C (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E1900 |
M6 |
M8 |
47 |
14 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
E1901 |
M6 |
M8 |
71 |
14 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handail stem samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of an Adjustable Handrail Stem?
A: An Adjustable Handrail Stem acts as an intermediate support pin that connects a handrail saddle or mounting plate to a post or wall base, providing flexibility to adjust height, angle, and positioning during field installation.
Q2: How does the locking mechanism work on this stem?
A: The stem features a top M6 opening (A) to receive a support pin or rod, which is tightened and locked securely in place using the integrated side Allen/hex set screw.
Q3: What thread sizes and heights are available?
A: The stem includes a top M6 bore (A) and a bottom M8 male threaded stud (B), available in main body lengths (C) of 47 mm and 71 mm.
Q4: Which stainless steel material grade is recommended for outdoor or marine environments?
A: For outdoor, marine, or coastal applications, select AISI 316 or Duplex SS 2205 stainless steel to ensure maximum resistance against salt spray, atmospheric rust, and chloride pitting.
