Flat, 38.1mm, 50.8mm
The Crossbar Holder Left Hole is a durable and precision-made component designed for stainless steel railing and balustrade systems. It connects and supports crossbars on the left side of posts, ensuring structural stability and an elegant, seamless appearance. Manufactured from premium AISI 304, 316, or Duplex SS 2205 stainless steel, this crossbar holder offers outstanding corrosion resistance and strength. Suitable for flat surfaces and compatible with tube diameters of 38.1mm and 50.8mm, it is ideal for both indoor and outdoor architectural applications. Available in Satin and Mirror polished finishes for a refined look. The Crossbar Holder Left Hole is commonly used in stainless steel handrails, glass balustrades, balcony railings, and staircases where left-side crossbar connections are required.
|
Category |
Part NO. |
Fit for Tube
(mm) |

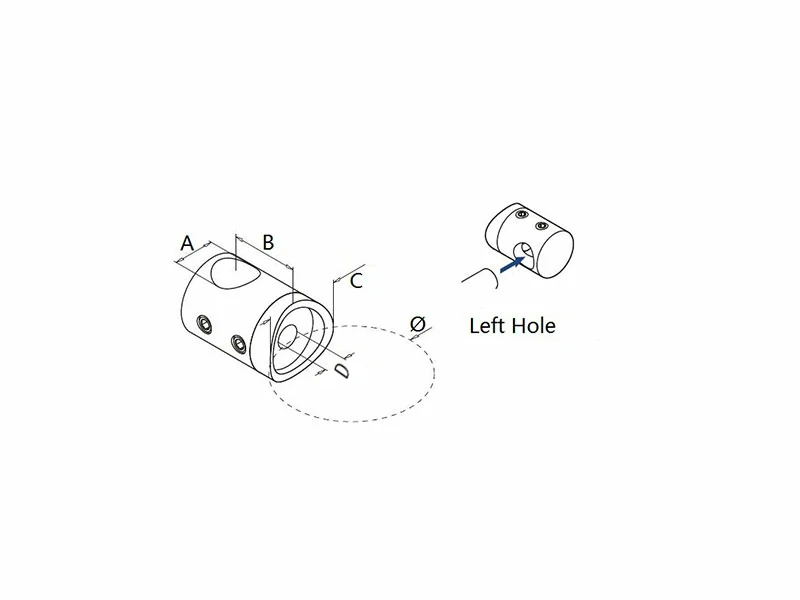

A (mm) |
B (mm) |
C (mm) |
D (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Bar Fittings |
K021000 |
10 | 10 | 20 | 22 |
6.5 |
Flat |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Bar Fittings |
K021038 |
10 | 10 | 20 | 22 | 6.5 |
38.1 |
|||
|
Bar Fittings |
K021050 |
10 | 10 | 20 | 22 | 6.5 | 50.8 | |||
| Bar Fittings |
K021200 |
12 | 12 | 20 | 22 |
6.5 |
Flat |
|||
| Bar Fittings |
K021238 |
12 | 12 | 20 | 22 | 6.5 |
38.1 |
|||
|
Bar Fittings |
K021250 |
12 | 12 | 20 | 22 | 6.5 | 50.8 | |||
|
Bar Fittings |
K021400 |
14 | 14 | 25 | 25 | 8.5 |
Flat |
|||
|
Bar Fittings |
K021438 |
14 | 14 | 25 | 25 | 8.5 | 38.1 | |||
|
Bar Fittings |
K021450 |
14 | 14 | 25 | 25 | 8.5 | 50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 50days batch production after crossbar holder samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
