Flat, 38.1mm, 50.8mm

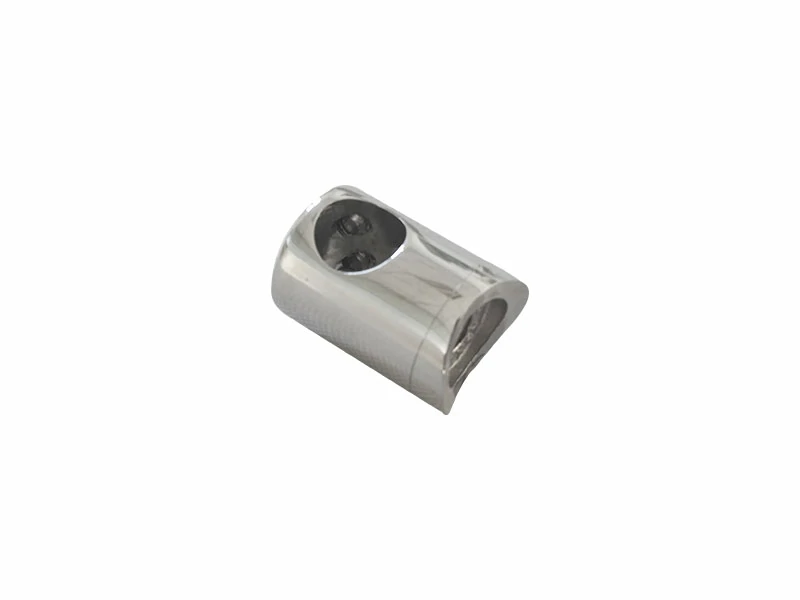

The Crossbar Holder Through Hole is a precision-engineered component used in stainless steel railing and balustrade systems. Designed to securely connect and support crossbars between posts, it ensures both structural integrity and a sleek, modern appearance. Crafted from high-quality AISI 304, 316, or Duplex SS 2205 stainless steel, this holder provides superior strength, corrosion resistance, and durability. It is compatible with flat surfaces and tube diameters of 38.1mm and 50.8mm, making it ideal for a wide range of indoor and outdoor applications. Available in both Satin and Mirror polished finishes for aesthetic flexibility.
|

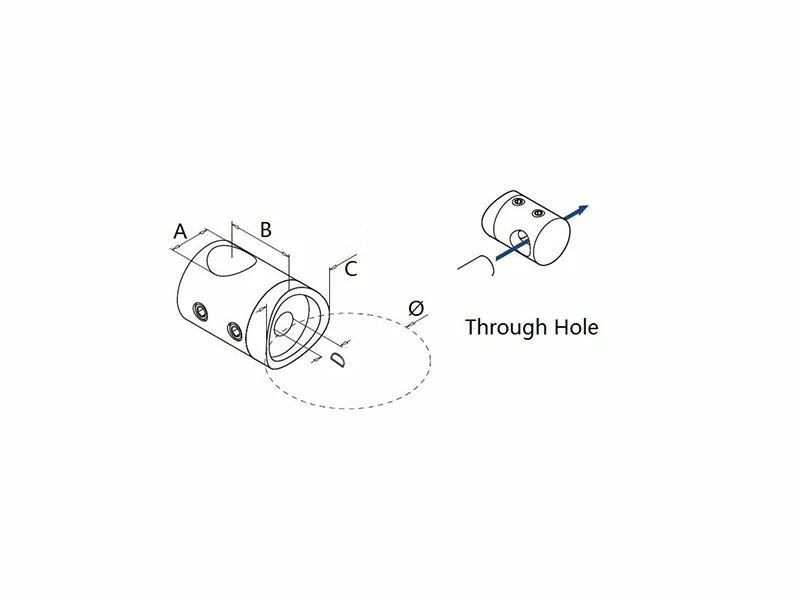

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Bar Fittings |
K011000 |
10 | 12 | 20 | 22 |
6.5 |
Flat |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Bar Fittings |
K011038 |
10 | 12 | 20 | 22 | 6.5 |
38.1 |
|||
|
Bar Fittings |
K011050 |
10 | 12 | 20 | 22 | 6.5 | 50.8 | |||
| Bar Fittings |
K011200 |
12 | 12 | 20 | 22 |
6.5 |
Flat |
|||
| Bar Fittings |
K011238 |
12 | 12 | 20 | 22 | 6.5 |
38.1 |
|||
|
Bar Fittings |
K011250 |
12 | 12 | 20 | 22 | 6.5 | 50.8 | |||
|
Bar Fittings |
K011400 |
14 | 14 | 25 | 25 | 8.5 |
Flat |
|||
|
Bar Fittings |
K011438 |
14 | 14 | 25 | 25 | 8.5 | 38.1 | |||
|
Bar Fittings |
K011450 |
14 | 14 | 25 | 25 | 8.5 | 50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 50days batch production after crossbar holder samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
