The SS End Cap with self-gripping technology is a premium hardware solution engineered to seal open pipe ends while providing a clean, sophisticated finish to modern architectural balustrades. Designed specifically to eliminate the need for mechanical screws, drilling, or on-site welding, this advanced handrail end cap utilizes a specialized knurled base to establish a permanent, secure friction lock. It is widely specified across upscale residential and commercial projects—including hotels, villas, corporate offices, schools, and shopping malls—where it serves as both a critical safety feature and a decorative finishing accent.

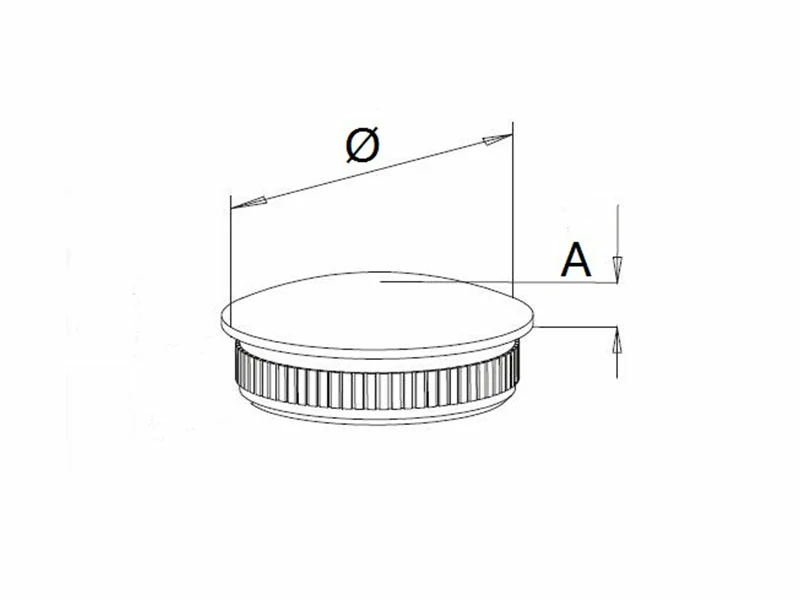

This handrail fittings features a subtle domed top with a precise low-profile lip projection height (A = 4.5/5.5mm). The integrated ribbed insert collar compresses smoothly inside the hollow tube wall during a standard press-fit installation, ensuring the outer rim remains flawlessly flush with the rail’s exterior surface. Forged from high-performance industrial stainless steel (available in AISI 304, AISI 316, or Duplex SS 2205), these durable handrail fittings provide exceptional structural integrity and reliable resistance to corrosion in both indoor and outdoor settings. Our End Cap Self Grip series is precision-manufactured to fit standard round handrail configurations with an outer diameter of 25.4mm or 38.1mm, and can be customized in either a sleek brushed satin or a highly reflective mirror-polished surface finish.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| End Caps |
B0125 |
Ø25.4 x 1.5
|
4.5 |
25.4 |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| End Caps |
B0138 |
Ø38.1 x 1.5
|
5.5 |
38.1 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after end cap samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What makes the End Cap SELF GRIP different from standard plug caps?
A: Unlike traditional caps that require structural adhesives, set screws, or manual welding, this fitting features an integrated knurled metal base. The vertical ridges on the insert body slice into the inner pipe wall when pressed into place, generating a permanent mechanical friction grip that will not loosen over time.
Q2. What tube sizes and dimensions are available for this SS End Cap?
A: This high-strength cap is manufactured to accommodate standard architectural railing sizes. The component supports outer tube diameters of 25.4mm and 38.1mm, featuring a domed lip profile height of 4.5mm/5.5mm.
Q3. Can this handrail end cap be used for exterior architectural projects?
A: Yes. While our Grade AISI 304 stainless steel option delivers long-lasting performance for climate-controlled indoor staircases and walkways, we also offer premium marine-grade AISI 316 and Duplex SS 2205 alternatives. These high-alloy variations offer superior resistance to rust, oxidation, and weather damage in outdoor, poolside, or coastal environments.
Q4. How is this hardware installed into the raw tube ends?
A: Installation is quick and completely tool-free. Line up the knurled collar with the cut end of your stainless steel pipe and drive it into place using a non-marring rubber mallet until the shoulder sits flush against the metal edge. This simple knock-in setup drastically lowers labor times on large commercial job sites.
Q5. Does the domed design cause any safety issues on public walkways?
A: No. The gentle radius of the domed crown eliminates the hazards of sharp, exposed cut-metal pipe edges, shielding the interior from dust and moisture while providing a smooth, user-safe transition on staircases, decks, and balconies.
