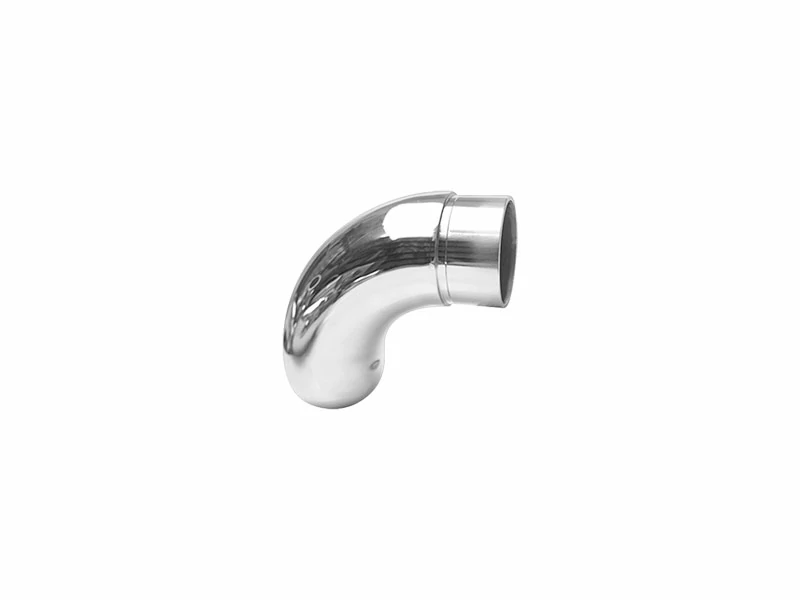

The End of Handrail fitting is an essential component designed to terminate or transition a handrail tube by incorporating a smooth 90-degree bend. Unlike a standard Stainless Steel End Cap that simply plugs an open pipe terminal, these versatile handrail fittings are engineered to create clean structural corners, directional turns, or down-turned safety returns within a continuous handrail run. This ensures a code-compliant, seamless configuration that enhances both architectural flow and pedestrian safety.
This component features a precise right-angle profile with designated height and depth measurements to ensure exact alignment during layout planning. It is precisely manufactured to fit standard round handrail tubes with an outside diameter of 50.8 mm and a wall thickness of 1.5 mm, establishing a perfectly flush, high-strength connection. Formed from industrial-grade stainless steel, this fitting is available in Grade 304 for interior installations or Grade 316 for demanding outdoor environments. To match your existing architectural hardware, it can be ordered in either a sleek satin brushed finish or a highly reflective mirror polished finish.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| End Caps |
B0750 |
Ø50.8 x 1.5
|
89 | 89 |
50.8 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after end cap samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the difference between this End of Handrail fitting and a standard Stainless Steel End Cap?
A: A standard end cap simply seals the raw, straight cut at the very end of a pipe. In contrast, the End of Handrail fitting incorporates a structural 90-degree bend, allowing the railing to transition smoothly into a wall return, turn a corner, or terminate downward to eliminate dangerous clothing snags and open-pipe exposure.
Q2. What specific tube dimensions does this handrail fitting accommodate?

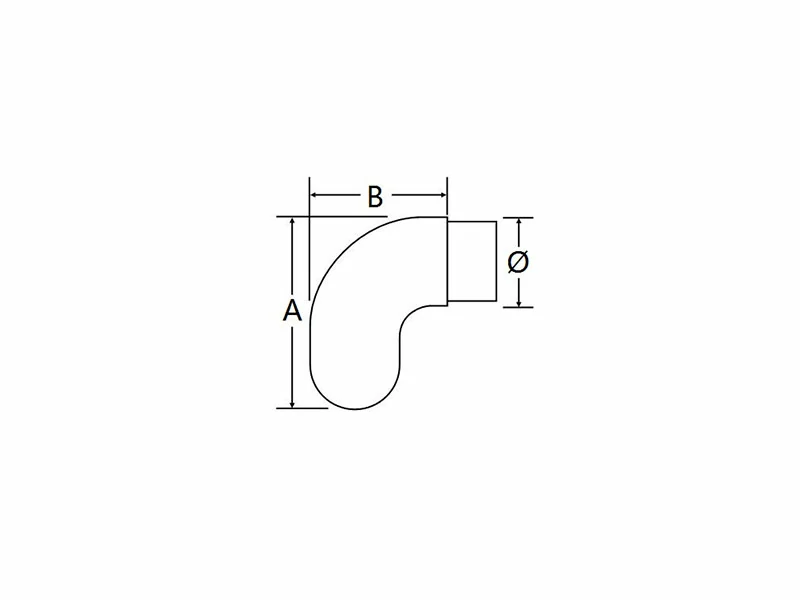

This component is precision-engineered to integrate with standard architectural tubing profiles. It seamlessly connects to tubes with an outside diameter of 50.8 mm and a tube wall thickness of 1.5 mm. Please refer to dimensions A and B in the product schematic to calculate your exact layout clearances.
Q3. Which stainless steel grade should I specify for my project?
A: For indoor commercial projects, residential staircases, and climate-controlled environments, Grade 304 stainless steel provides excellent strength and long-term durability. For exterior applications, coastal installations, safety ramps, or high-humidity pool decks, we recommend specifying marine-grade Grade 316 stainless steel for superior resistance against rust and corrosion.
Q4. How is this component installed into the handrail tubing?
A: This fitting features a reduced internal insert sleeve that slides directly inside the main 50.8 mm x 1.5 mm handrail tube. The connection can be permanently secured using high-strength structural metal adhesives providing a weld-free, flush fit that preserves the clean lines of your balustrade.
Q5. Can I customize the surface finish of the hardware?
A: Yes. To ensure complete aesthetic harmony across your entire handrail installation, our transition ends are available in two premium industry finishes: a modern, low-reflection satin brushed finish or a brilliant, flawless mirror polished finish.
