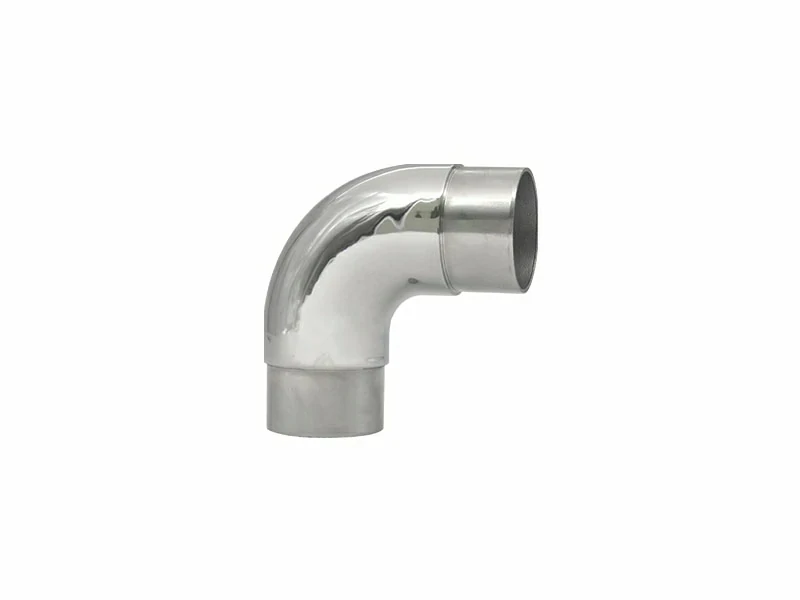

The Flush Radius Elbow is a precision-engineered handrail fitting designed to connect two tubes at a smooth 90-degree angle. Its flush, seamless profile ensures a clean, modern appearance, making it an ideal tube connector for architectural railings, staircases, balconies, and commercial handrail systems.
Manufactured from high-quality Stainless Steel 304 or 316, this 90° flush elbow provides excellent durability, corrosion resistance, and long-term stability. Available in Satin or Mirror Polish finishes, it offers dependable performance and a refined aesthetic suitable for both indoor and outdoor installations.
Engineered for easy installation and low maintenance, this Flush Radius Elbow ensures a continuous, visually appealing handrail line while meeting structural requirements.
|
Category |
Part NO. |
Fit for Tube (mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Tube Joiners |
A0138 |
Ø38.1 x 1.5 |
66 |
38.1 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
| Tube Joiners |
A0150 |
Ø50.8 x 1.5 |
79 |
50.8 |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Lead Time : 50days batch production after handrail elbow samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What does "Flush Radius Elbow" mean for my handrail system?
A: "Flush" means the tube connector is inserted into the tubes, creating a continuous, smooth surface without external seams or sharp edges. This ensures a clean and professional aesthetic, enhancing the look of your handrail fittings.
Q2: Should I choose Stainless Steel 304 or 316 for this 90° elbow?
A: Stainless Steel 304 is suitable for interior or general applications. Stainless Steel 316 offers superior corrosion resistance (due to added Molybdenum) and is highly recommended for exterior, coastal, or marine environments.
Q3: Which tube sizes are compatible with this fitting?
A: It fits tubes with diameters Ø38.1 mm × 1.5 mm and Ø50.8 mm × 1.5 mm wall thickness.
Q4: How difficult is the installation of this Flush Radius Elbow?
A: This handrail fitting is designed for easy installation. The elbow is typically secured by inserting it into the prepared tubes and locking it into place, often using a suitable metal adhesive or specialized securing pins.
