The Hand Rail End is a specialized structural component engineered to provide a clean, finished closure to the open termination points of round metal balustrades. This essential Stainless Steel End Cap is designed to curve downward or inward at a precise right angle, delivering a professional look to the railing system. By terminating the raw ends of hollow tubing, this component enhances pedestrian safety by eliminating snag hazards and preventing clothing or hands from catching on open edges. It is a vital asset for commercial and residential applications where an elegant, code-compliant finish is required for public staircases, balconies, ramps, and walkways.
This curved return fitting features a smooth 90-degree outer profile radius with an overall assembly height. The component is engineered to fit a tube with an outside diameter of 50.8mm and a standard wall thickness of 1.5mm. It includes an integrated internal insert sleeve collar that fits tightly inside the main rail body for a seamless transition. Forged from premium Grade 304 or Grade 316 stainless steel, these robust handrail fittings provide exceptional structural support and corrosion resistance, making them ideal for both indoor and outdoor handrail applications.
|

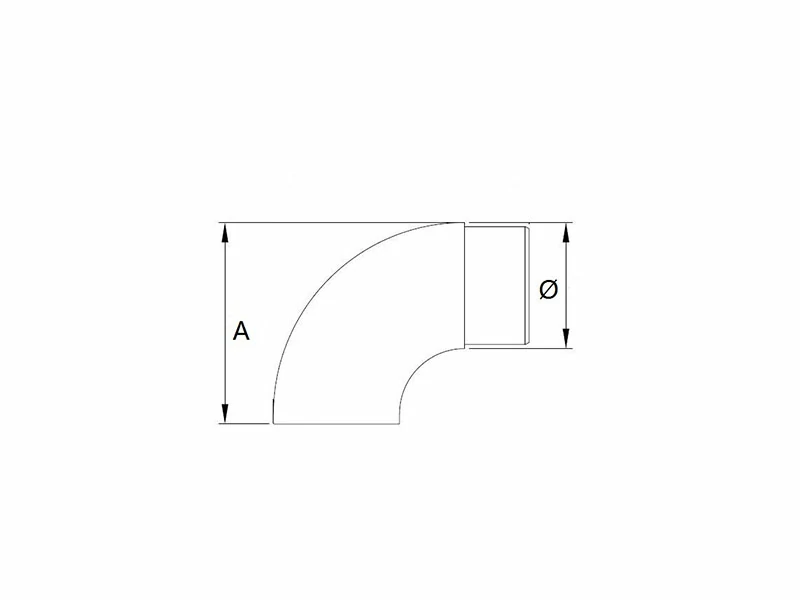

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| End Caps |
B0650 |
Ø50.8 x 1.5
|
76mm |
50.8mm |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after end cap samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary architectural purpose of a curved Hand Rail End?
A: Unlike standard flat terminals, this fitting creates a smooth, continuous 90-degree return. This design prevents open pipe ends from presenting sharp edge hazards, meets structural building safety codes for commercial public access ramps, and prevents debris or moisture from entering the tubing.
Q2. What are the precise sizing specifications for this component?
A: This curved model is precision-manufactured to match standard architectural piping. It is designed to fit a tube with an outside diameter of 50.8mm and a precise wall thickness of 1.5mm. For exact structural layout dimensions, please refer directly to the engineering drawing.
Q3. Which stainless steel grade should be selected for an installation?
A: The ideal grade depends on your installation environment. Grade 304 stainless steel is highly durable and cost-effective for indoor commercial spaces, interior staircases, and climate-controlled corridors. For exterior applications, coastal balconies, or high-moisture layouts, Grade 316 stainless steel offers superior resistance to rust and environmental weathering.
Q4. How is this handrail fitting installed onto the existing pipe?
A: Installation is clean and straightforward. The reduced internal insert sleeve slides directly into the raw cut end of your 50.8mm x 1.5mm handrail tube. It can be permanently secured using high-strength structural metal adhesives, contact cement, or specialized rivets to form a strong, weld-free connection.
Q5. What visual surface finish options are available?
A: To achieve perfect visual harmony across your entire balustrade layout, this end fitting is available in two premium architectural finishes: a refined satin finish with a low-reflection brushed look, or a brilliant mirror polished finish for a highly reflective, contemporary look.
