Flat, 38.1mm, 50.8mm

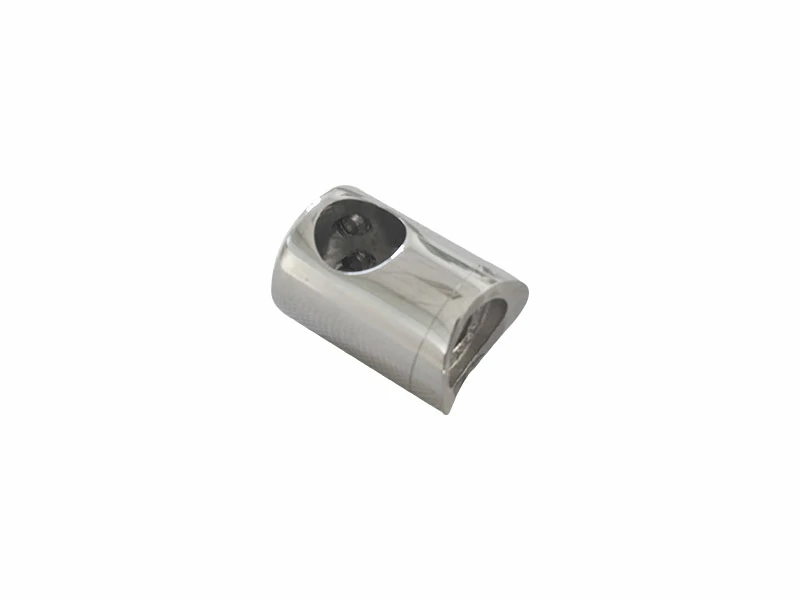

The Handrail Crossbar Holder Right Hole is a high-quality stainless steel fitting designed to secure and support crossbars on the right side of posts within handrail and balustrade systems. It provides a stable, durable, and visually refined connection for modern railing installations. Engineered from premium AISI 304, 316, or Duplex SS 2205 stainless steel, this crossbar holder delivers exceptional strength, corrosion resistance, and long-term performance. Suitable for flat surfaces and compatible with 38.1mm and 50.8mm tube diameters, it is ideal for both interior and exterior use. Available in Satin and Mirror polished finishes to complement any architectural style. The Handrail Crossbar Holder Right Hole is perfect for use in stainless steel handrails, glass railing systems, balconies, and staircases requiring right-side crossbar connections.
|

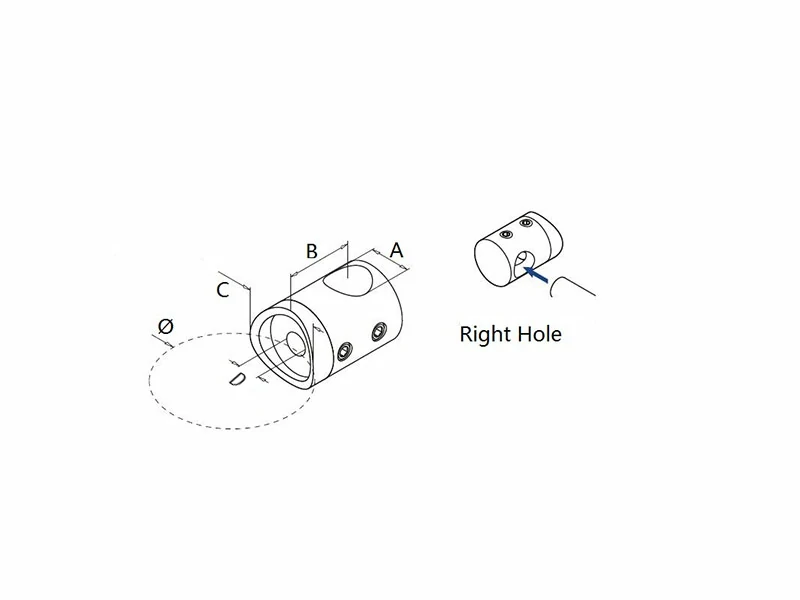

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Bar Fittings |
K031000 |
10 | 10 | 20 | 22 |
6.5 |
Flat |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Bar Fittings |
K031038 |
10 | 10 | 20 | 22 | 6.5 |
38.1 |
|||
|
Bar Fittings |
K031050 |
10 | 10 | 20 | 22 | 6.5 | 50.8 | |||
| Bar Fittings |
K031200 |
12 | 12 | 20 | 22 |
6.5 |
Flat |
|||
| Bar Fittings |
K031238 |
12 | 12 | 20 | 22 | 6.5 |
38.1 |
|||
|
Bar Fittings |
K031250 |
12 | 12 | 20 | 22 | 6.5 | 50.8 | |||
|
Bar Fittings |
K031400 |
14 | 14 | 25 | 25 | 8.5 |
Flat |
|||
|
Bar Fittings |
K031438 |
14 | 14 | 25 | 25 | 8.5 | 38.1 | |||
|
Bar Fittings |
K031450 |
14 | 14 | 25 | 25 | 8.5 | 50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 50days batch production after crossbar holder samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
