50.8mm

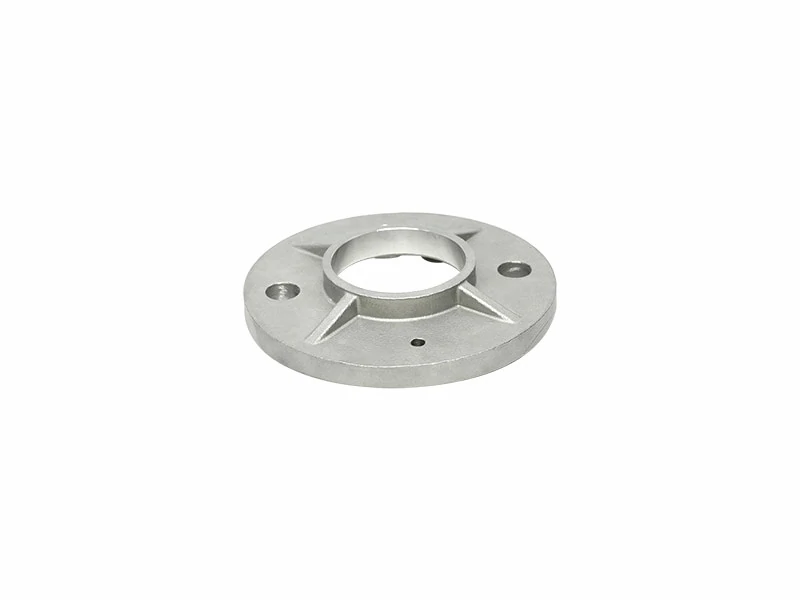

The Heavy Duty Base Plate is a high-performance structural component engineered to provide maximum stability for large-scale railing installations. Specifically designed for high-traffic environments and safety-critical areas, this base plate serves as a robust foundation that securely anchors handrail posts to floors or bulkheads.
Constructed from premium AISI 304 or 316 stainless steel, these handrail fittings are built to withstand the intense loads and stresses common in industrial, commercial, and marine applications. This base plate features 3 pre-drilled holes for secure fastening using heavy-duty bolts, anchors, or other suiltable fasteners. The reinforced design features structural gussets (support ribs) that provide added resistance to deformation under extreme mechanical stress, making it an ideal choice for safety-critical deck guardrails or stanchion posts.
|
Category |
Part NO. |
Fit for Tube
(mm) |

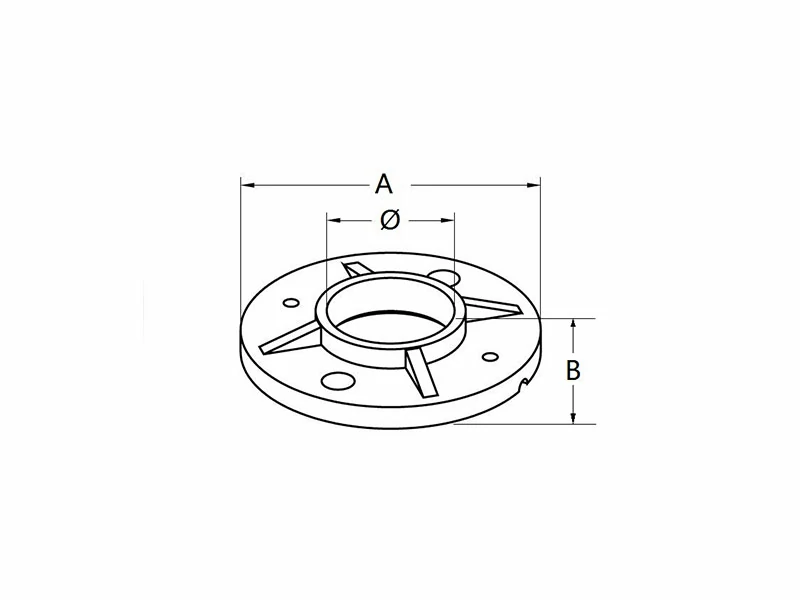

A (mm) |
B (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Base & Cover |
C0750 |
Ø50.8
|
100 |
25 |
50.8 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Flooring
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after palte samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: When should I use a Heavy Duty Base Plate instead of a standard welding plate?
A: You should choose the Heavy Duty Base Plate for installations that require extra rigidity, such as high-traffic public walkways or safety rails on vessels that face constant vibration and impact loads. The 25mm height and reinforced ribs offer significantly more support than a flat welding plate.
Q2: Which material is best for an outdoor or marine project?
A: For any exterior or marine environment, AISI 316 stainless steel is essential. It is specifically engineered to resist rust and structural weakening caused by saltwater and harsh coastal climates.
Q3: Is the mirror-polished finish just for looks?
A: No. While it provides a sleek, modern look, the mirror-polished finish also creates a smooth surface that makes the handrail fittings more resistant to salt accumulation and corrosion.
Q4: Does this plate fit standard 2-inch boat railing tubing?
A: Yes. The 50.8mm diameter (Ø) is perfectly compatible with common 2-inch marine tubing. Always verify your tubing's outer diameter before purchasing to ensure a secure fit.
Q5: How do I maintain these fittings to prevent tea-staining?
A: Even 316 stainless steel requires routine care. We recommend rinsing with fresh water after salt exposure and cleaning periodically with a mild detergent to maintain long-term performance.
