The Stainless Steel Round Post Handrail Support is a heavy-duty architectural connector designed to mount handrails securely to vertical round baluster posts or structural uprights. Engineered with a sculpted, flared stem base and a knurled press-fit insertion sleeve, this bracket creates a seamless and sturdy interface between supporting posts and continuous handrail runs across residential staircases, commercial balconies, and outdoor walkways.

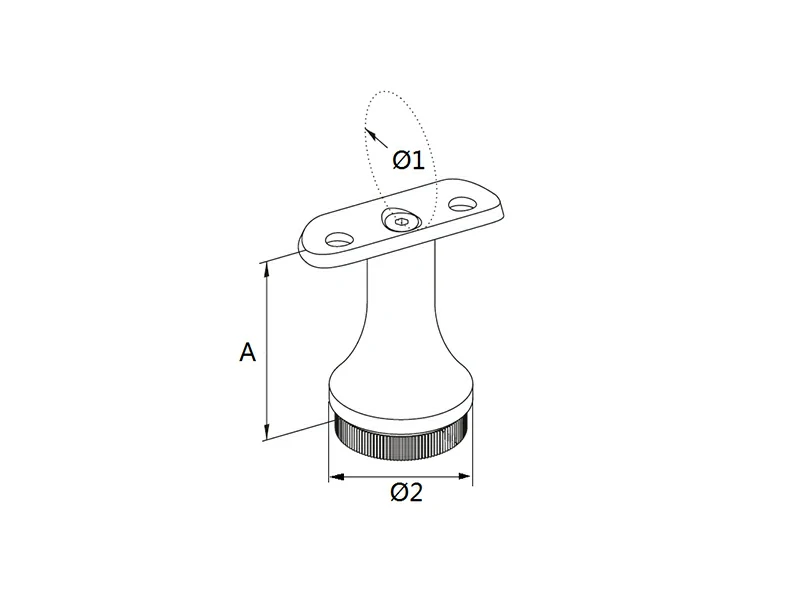

This fitting features a lower knurled push-fit connector collar (Ø 2) available in 38.1 mm (1.5 inches) and 50.8 mm (2 inches) outer diameters for secure post-top insertion. The upper mounting saddle plate (Ø 1) is available in a flat configuration for wooden or square handrails, as well as curved profiles tailored for 38.1 mm (1.5 inches) and 50.8 mm (2 inches) round metal handrail tubing. The integrated stem provides a standoff clearance height (A) of 58 mm from the top of the post collar to the bottom of the saddle plate. Precision-cast in high-grade stainless steel options—including AISI 304, AISI 316, and Duplex SS 2205—and finished in brushed satin (matte) or mirror-polished (shiny) surfaces, these premium handrail fittings serve as an ideal Handrail Support component for demanding architectural projects.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø1 (mm) |
Ø2 (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E233800 |
Ø38.1 × 1.5
|
58 | Flat |
38.1 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
E233838 |
Ø38.1 × 1.5
|
58 | 38.1 |
38.1 |
|||
|
Handrail Supports |
E235000 |
Ø50.8 × 1.5
|
58 | Flat |
50.8 |
|||
|
Handrail Supports |
E235050 |
Ø50.8 × 1.5
|
58 | 50.8 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handail stem samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of a Round Post Handrail Support?
A: A Round Post Handrail Support acts as a post-top connector bracket that secures and elevates a handrail tube above a vertical round post, ensuring structural stability and precise alignment across handrail runs.
Q2: How is this support bracket installed into the post and handrail?
A: The lower knurled sleeve (Ø 2) press-fits directly into the open top of a 38.1 mm or 50.8 mm round post tube, while fasteners driven through the top saddle plate (Ø 1) secure it directly to the underside of the handrail.
Q3: What post and handrail dimensions are compatible with this support?
A: The lower base sleeve (Ø 2) fits into 38.1 mm (1.5 inchs) or 50.8 mm (2 inchs) round posts. The upper mounting plate (Ø 1) accepts Flat, 38.1 mm, or 50.8 mm round handrail profiles.
Q4: Which stainless steel material grade should be selected for outdoor or marine applications?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or marine installations to ensure maximum protection against chloride pitting, salt spray, and atmospheric corrosion.
