25.4mm, 38.1mm, 50.8mm

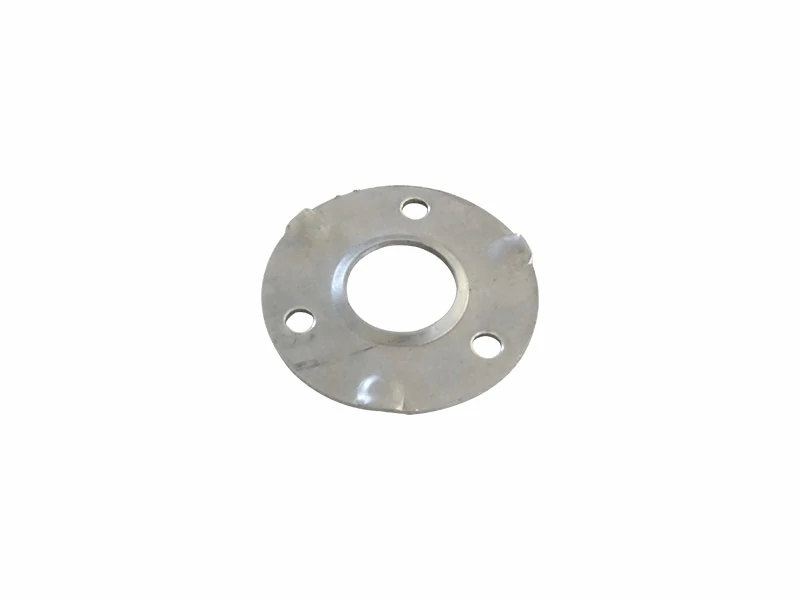

The Round Base Plate is a precision-engineered component designed specifically for permanent welding to handrail posts. Unlike standard handrail fittings that rely on mechanical fasteners to join the post and plate, this welding-purpose flange creates a seamless, rigid connection that ensures maximum structural integrity. By permanently bonding the post to the plate, this foundation provides superior stability for safety-critical railing systems in high-traffic commercial or residential environments.
This Round Base Plate is instrumental in securing railing posts to mounting surfaces such as floors or walls, effectively distributing weight and applied forces to maintain a stable foundation. Available in various sizes and premium stainless steel grades, it is the professional choice for custom architectural projects requiring a clean, weld-finished appearance.
|

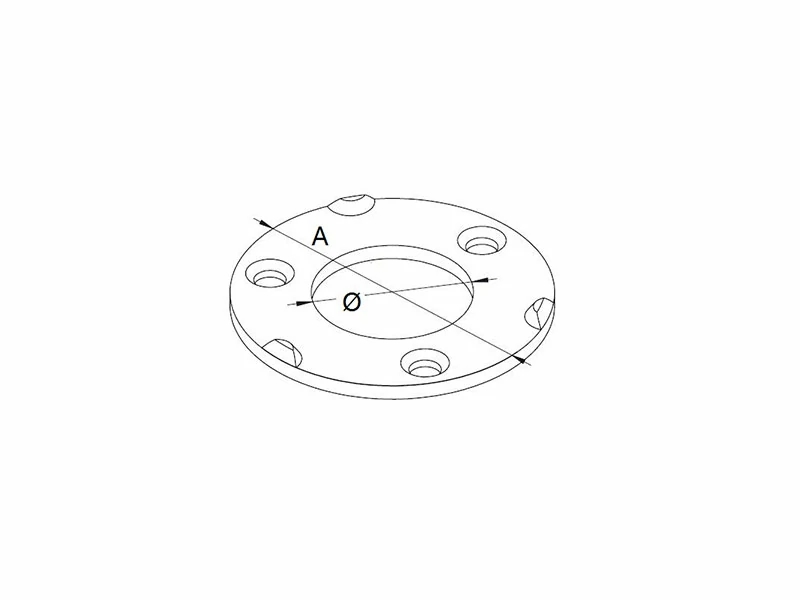

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Base & Cover |
C0525 |
Ø25.4
|
65 |
25.4 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
| Base & Cover |
C0538 |
Ø38.1
|
80 |
38.1 |
|||
|
Base & Cover |
C0550 |
Ø50.8
|
100 | 50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Flooring
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after base palte samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the difference between a Round Base Plate and a Base Cover?
A: The Round Base Plate is the structural component that is physically bolted to the floor to hold the post in place. A base cover is a decorative piece that slides over the plate to hide the mounting bolts and provide a finished appearance.
Q2: Which material grade should I select for my project?
A: Grade 304 is ideal for interior residential or commercial use where moisture is minimal. Grade 316 is the "Marine Grade" standard, essential for any outdoor, coastal, or high-moisture application due to its molybdenum content which prevents rusting.
Q3: Can this base plate be used for welding?
A: Yes, these plates are frequently used for welding purposes to create a permanent, high-strength bond between the tube and the mounting base.
Q4: How many anchor points does the plate have?
A: Standard Highco Metal round base plates typically feature three to four pre-drilled holes to ensure a balanced and secure anchor to the substrate.
Q5: Does the tube sit on top of the plate or go through it?
A: The plate is designed with a center opening (Ø) that matches the outer diameter of your tubing. Depending on the specific installation method, the tube can be welded to the top surface or inserted slightly for alignment.
