50.8mm

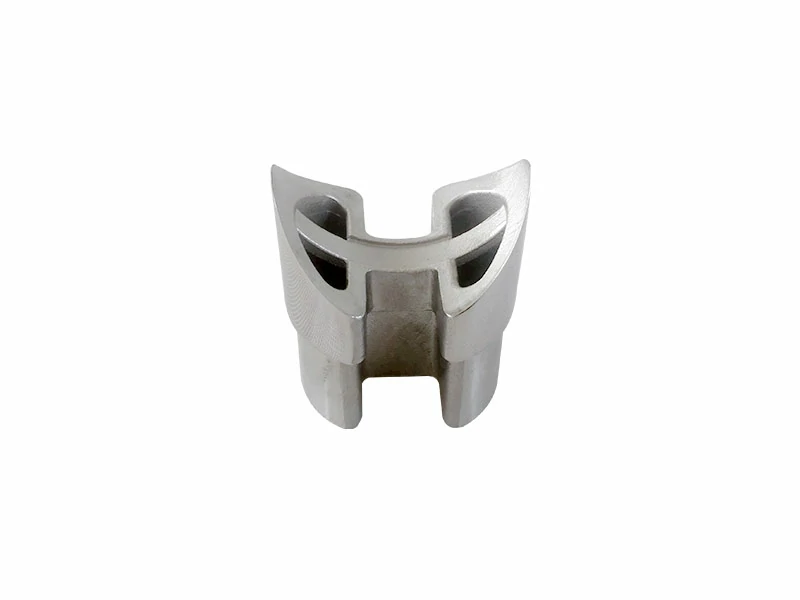

The Slotted Tube Adapter is a precision-engineered stainless steel component designed to connect slotted handrail tubes to one another or to structural elements such as walls and posts. This essential piece of handrail fittings is specifically shaped to fit into the internal slots of the tubing, providing an adjustable and secure connection that maintains the structural integrity of the entire system.
Crafted from durable 304 or 316 stainless steel, these Slotted Tube Railing Fittings are frequently used to terminate and finish grooved handrail tubing in modern architectural designs. The adapter’s specialized geometry accounts for the presence of the slot, ensuring a proper fit that eliminates movement. These components are commonly applied to 50.8mm (2-inch) diameter rails and are available in professional satin or luxury mirror-polished finishes to provide a visually appealing, high-end look while ensuring maximum safety.
|

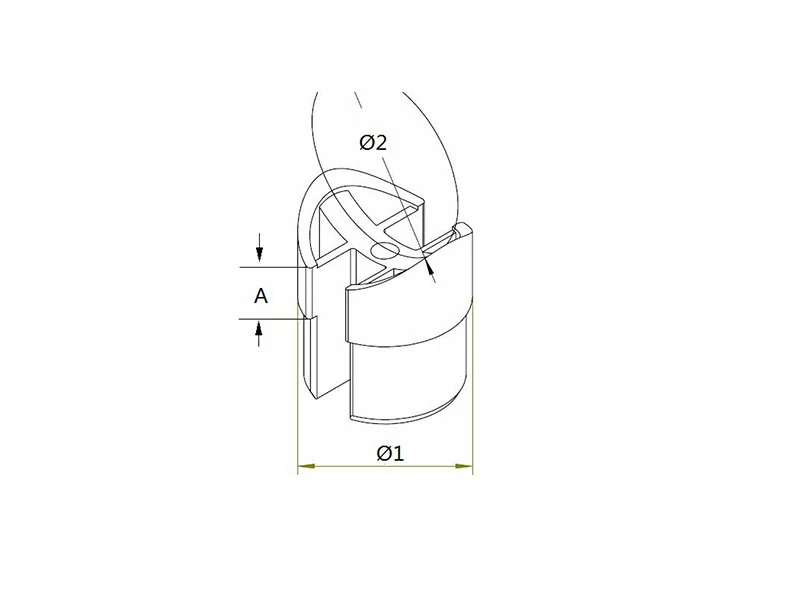

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø1 (mm) |
Ø2 (mm) |
Material |
Surface |
Place of Production |
|
Slotted Tube Fittings |
SL200250 |
Ø50.8 x 1.5
|
11 | 50.8 |
50.8 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handrail adapter samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the main function of a Slotted Tube Adapter?
A: The primary purpose of this adapter is to serve as a high-strength connector between slotted handrail tubes or between a tube and a fixed structure like a wall or mounting post. It is designed to bridge these components while fitting perfectly into the tube's pre-cut slots.
Q2. Can this adapter be used to finish the ends of a railing?
A: Yes. In addition to its role as a connector, the Slotted Tube Adapter is specifically designed to terminate and seal the ends of grooved handrail tubing, providing a clean and professional finish to the railing system.
Q3. Which material grade is best for my installation?
A: We offer these Slotted Tube Railing Fittings in both 304 and 316 stainless steel. Grade 304 is ideal for standard indoor applications, whereas Grade 316 is recommended for outdoor, coastal, or high-moisture environments where superior corrosion resistance is required.
Q4. Is this adapter compatible with 2-inch diameter rails?
A: Yes. These adapters are specifically designed for architectural installations utilizing 50.8mm (2-inch) diameter slotted tubes. The dimensions are precisely matched to ensure a secure, "slip-fit" installation.
Q5. How does the adapter ensure a secure fit with slotted tubing?
A: The design of the Slotted Tube Adapter specifically accounts for the presence of the slots in the tubing. By mirroring the internal profile of the grooved rail, it creates a flush, adjustable connection that prevents the handrail from shifting or rotating.
Inquiry Stainless Steel Slotted Tube Fittings for Handrail in Other Sizes, please contact us.
