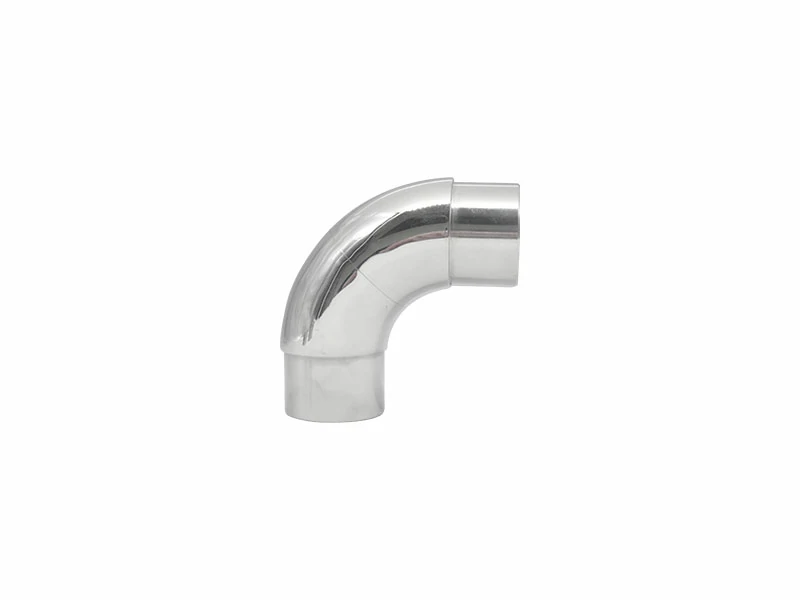

The Stainless Steel Flush Joiner is a premium, adjustable elbow connector designed to create strong, variable-angle connections within railing tubing. This highly versatile tube connector is ideal for non-standard corners and transitions in handrail systems, such as ramps and staircases.
Its innovative design allows 360° twist for maximum flexibility during installation. Crafted from corrosion-resistant stainless steel (typically Grade 304 or 316), this handrail fitting guarantees durability for both indoor and outdoor use. Once installed, it provides a clean, flush finish, offering a polished appearance in either a Satin or Mirror polished finish. Compatible with popular tube diameters such as Ø38.1 mm and Ø50.8 mm, the Stainless Steel Flush Joiner serves as a reliable tube connector, elbow joiner, and handrail fitting across commercial, residential, and public installations.
|

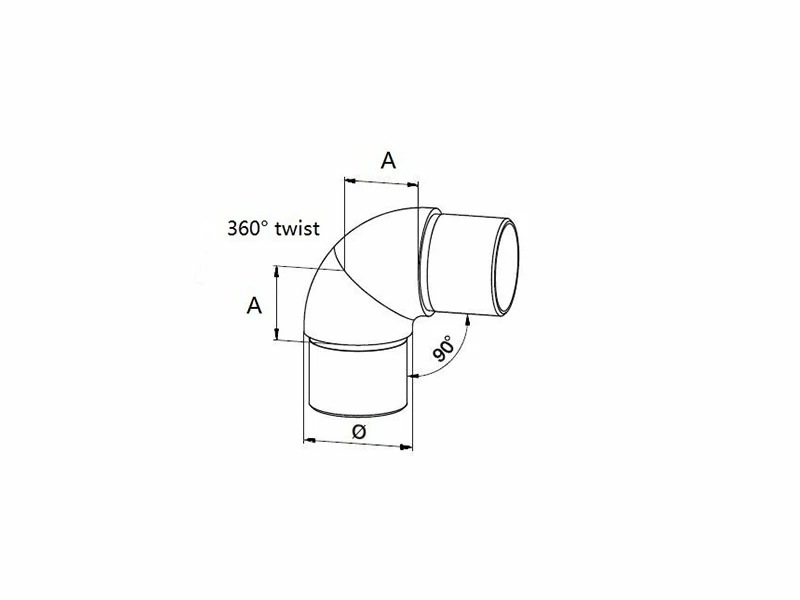

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Angle Range |
Material |
Surface |
| Tube Joiners |
A1038 |
Ø38.1 x 1.5
|
21 |
38.1 |
360° twist capability |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
| Tube Joiners |
A1050 |
Ø50.8 x 1.5
|
31 |
50.8 |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Lead Time : 50days batch production after tube connector samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: Which stainless steel grades are available, and what is the difference?
A: It is available in 304 and 316 stainless steel grades. Grade 304 is standard for general use, while Grade 316 is recommended for high-corrosion environments like coastal or harsh outdoor areas.
Q2: Does the joiner disrupt the handrail's appearance?
A: No. As a flush joiner, it is designed to be inserted into the tubing, providing a clean and seamless finish for a polished, high-end appearance.
Q3: What tube sizes is this fitting compatible with?
A: This tube connector is available to fit common handrail tube diameters, such as 38.1 mm and 50.8 mm.
Q4. Can this joiner rotate?
A: Yes. It offers 360-degree rotational movement, allowing highly adaptable positioning during installation.
