The Stainless Steel Handrail Adapter (External Fit) is an essential architectural fitting engineered to connect and secure round handrails to vertical post tops, wall flanges, or other supporting structures. Designed to slide externally over the post end, this sleeve-style adapter provides maximum structural support, enhanced stability, and a distinct finished collar profile across balustrade installations. It ensures smooth transitions and alignment, creating sturdier and more visually appealing railing systems.

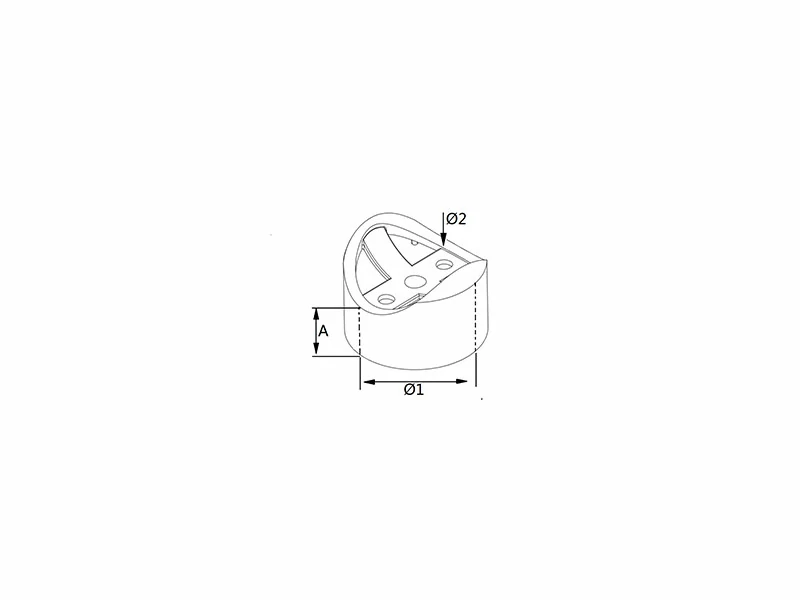

Featuring a curved upper saddle profile (∅ 2), this adapter cradles round handrail tubing measuring 38.1 mm (1.5 inch) or 50.8 mm (2 inch). Its lower external collar (∅ 1) slides over round post tops with outer diameters of 25.4 mm, 38.1 mm, or 50.8 mm, with collar heights (A) available in 13 mm, 14 mm, or 22.5 mm. Precision-cast in high-grade stainless steel options—AISI 304, AISI 316, or Duplex SS 2205—and available in brushed satin or mirror-polished finishes, these heavy-duty handrail fittings serve as an ideal handrail support solution for residential, commercial, and marine environments.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø1 (mm) |
Ø2 (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E091050 |
Ø25.4 × 1.5
|
13 | 25.4 | 50.8 |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
E091538 |
Ø38.1 × 1.5
|
13 | 38.1 |
38.1 |
|||
|
Handrail Supports |
E091550 |
Ø38.1 × 1.5
|
14 | 38.1 |
50.8 |
|||
|
Handrail Supports |
E092050 |
Ø50.8 × 1.5
|
22.5 | 50.8 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handrail support samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main advantage of an external fit Stainless Steel Handrail Adapter?
A: An external fit adapter slides directly over the outside of the post tube, providing full outer sleeve coverage for added joint stability, simplified alignment, and a clean finished collar profile.
Q2: How is this adapter secured to the post and handrail?
A: The lower base collar fits over the post top, while the upper curved saddle supports the handrail tube. The adapter features pre-drilled fastening holes for screw-mounted or tackle-welded installation.
Q3: What post and handrail dimensions are compatible with this adapter?
A: The base collar (∅ 1) fits over round posts measuring 25.4 mm, 38.1 mm, or 50.8 mm. The upper saddle (∅ 2) supports round handrail tubes with outer diameters of 38.1 mm or 50.8 mm.
Q4: Which stainless steel grade is recommended for outdoor or marine environments?
A: For outdoor, coastal, or marine installations, select AISI 316 or Duplex SS 2205 stainless steel due to their superior resistance against chloride pitting, atmospheric oxidation, and harsh weather exposure.
