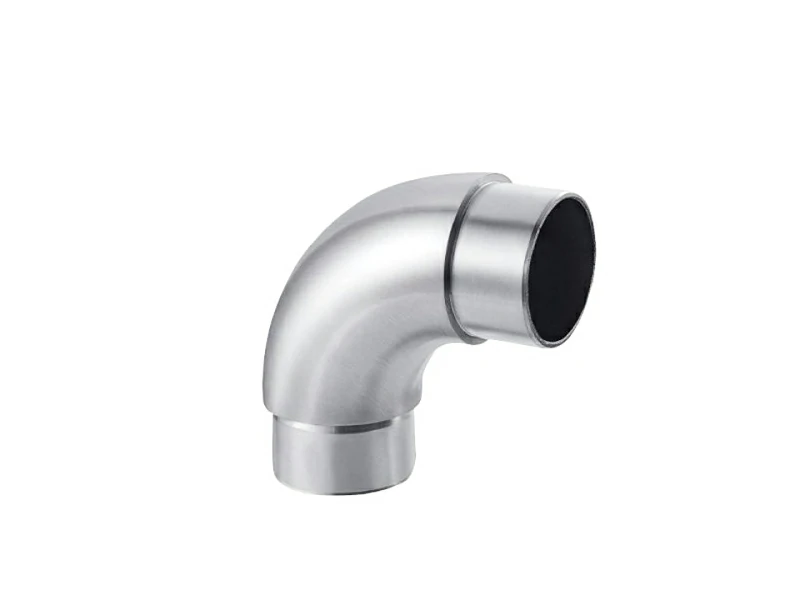

The 90 Degree Elbow Radiused is a premium architectural component designed to create smooth, curved right-angle transitions in architectural balustrades and handrails. Unlike standard sharp or straight elbows, this radiused tube connector features a gently curved profile that ensures a continuous, flowing transition between straight sections of tubing. This curved engineering significantly maximizes the refined, elegant appearance of any modular system.
Fabricated from high-grade stainless steel (available in AISI 304, AISI 316, or Duplex SS 2205), this elbow joiner provides superior load-bearing strength and exceptional long-term resistance to corrosion and rust. These essential handrail fittings are engineered for a perfect flush fit against the shoulder of standard architectural tubes. Available in multiple size configurations to match various tube diameters, the fitting can be selected in either a sleek brushed satin or a highly reflective mirror-polished finish to maintain structural and visual consistency across your layout.
|
Category |

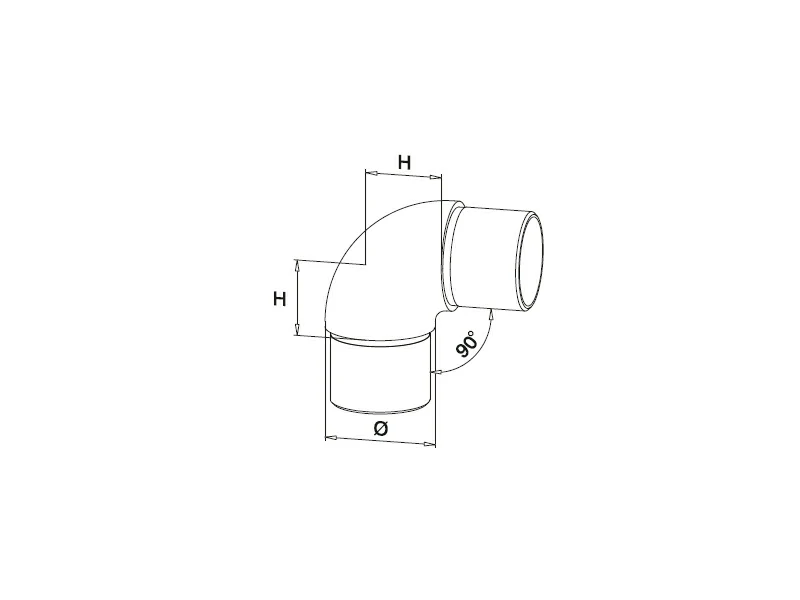

Part NO. | Ø |
H |
Material |
Surface |
Place of Production |
| Tube Joiners |
A002.33.20 |
33.7x2.0mm |
25mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Tube Joiners |
A002.42.20 |
42.4x2.0mm |
30mm |
|||
|
Tube Joiners |
A002.42.26 |
42.4x2.6mm |
30mm |
|||
|
Tube Joiners |
A002.48.20 |
48.3x2.0mm |
35mm |
|||
|
Tube Joiners |
A002.48.26 |
48.3x2.6mm |
35mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after elbow joiner samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the difference between a standard 90-degree straight elbow and a 90 Degree Elbow Radiused?
A: A standard straight elbow forms a sharp, distinct right-angle corner, whereas a radiused elbow features a smooth, rounded bend. This curved profile creates a flowing, continuous handrail grip and a softer architectural appearance.
Q2. What materials are available for this radiused tube connector?
A: This component is manufactured in premium grade AISI 304 for interior setups, as well as marine-grade AISI 316 and Duplex SS 2205 for high-exposure outdoor settings.
Q3. In what architectural applications is this fitting typically used?
A: It is ideal for environments where smooth, safe cornering is vital, such as residential or commercial staircases, elevated balconies, outdoor decks, and public walkways.
Q4. Can the surface finish be customized to match my existing handrail tubes?
A: Yes. To ensure a cohesive and uniform look, these handrail fittings can be customized in either a subtle brushed satin or a brilliant mirror-polished finish.
Q5. Does this fitting fit tightly against the railing tubes?
A: Yes, it is precision-engineered as a flush-fitting insert, meaning the connecting tubing sits perfectly secure against the shoulder of the elbow for a uniform, snag-free outer diameter.
