The 90 Degree Handrail Elbow is a precision-engineered flush connector designed to create seamless, sharp right-angle transitions in modern modular railing systems. Crafted from high-grade stainless steel (available in AISI 304, 316, or Duplex SS 2205), this premium tube connector provides exceptional structural strength and maximum resistance to rust, corrosion, and everyday wear.
Engineered for an effortless, high-end finish, this 90 degree handrail elbow features a clean, straight design where the railing tube sits perfectly flush against the shoulder of the fitting. This eliminates bulky joints and ensures a smooth, uninterrupted surface along walkways, balconies, and staircases. These essential handrail fittings are highly versatile, offering compatibility with standard architectural pipe diameters (33.7mm, 42.4mm, and 48.3mm) and multiple premium surface finishes to adapt to any residential or commercial project.
|

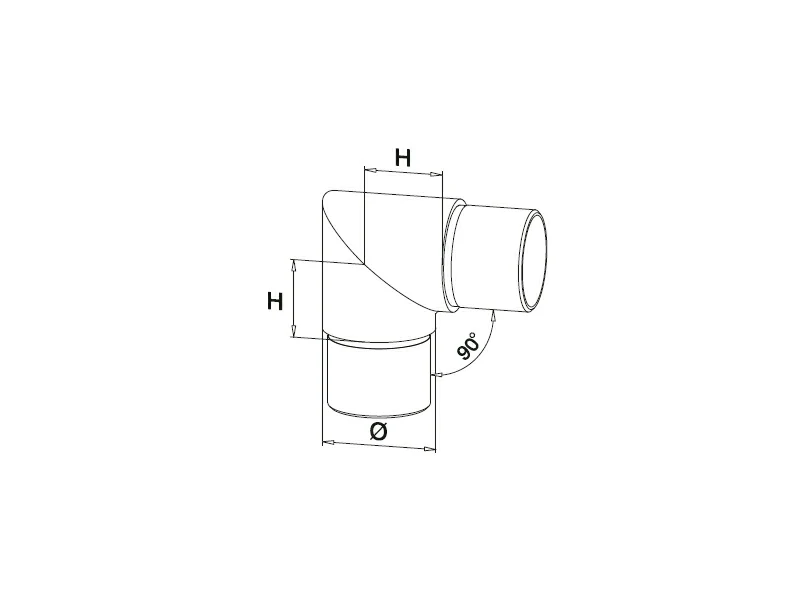

Category |
Part NO. | Ø |
H |
Material |
Surface |
Place of Production |
| Tube Joiners |
A001.33.20 |
33.7x2.0mm |
25mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Tube Joiners |
A001.42.20 |
42.4x2.0mm |
30mm |
|||
|
Tube Joiners |
A001.42.26 |
42.4x2.6mm |
30mm |
|||
|
Tube Joiners |
A001.48.20 |
48.3x2.0mm |
35mm |
|||
|
Tube Joiners |
A001.48.26 |
48.3x2.6mm |
35mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after elbow joiner samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is a "flush" connector installation?
A: A flush design means the connected handrail tubes sit perfectly tight against the shoulder of the elbow fitting. This creates a continuous, snag-free, and visually seamless transition between the railing sections.
Q2. How is the 90 Degree Handrail Elbow secured to the tubes?
A: These connectors are designed for simple, weld-free installation. They are typically secured inside the handrail tubes using a high-strength structural industrial adhesive or locked into place with a small, discreet grub screw.
Q3. Which tube sizes are compatible with this handrail fitting?
A: This component is manufactured to precisely fit standard structural pipe diameters, including 33.7 mm, 42.4 mm, and 48.3 mm.
Q4. Can this tube connector be used for outdoor coastal railings?
A: Yes. When ordering for outdoor, humid, or marine environments, select our marine-grade AISI 316 or Duplex SS 2205 stainless steel options to ensure superior long-term corrosion resistance.
Q5. What are the most common applications for this fitting?
A: This elbow is ideally used to handle direction changes at staircase handrail corners, landing transitions, and the perimeter framework for glass balustrade systems.
