90 Degree Handrail Support

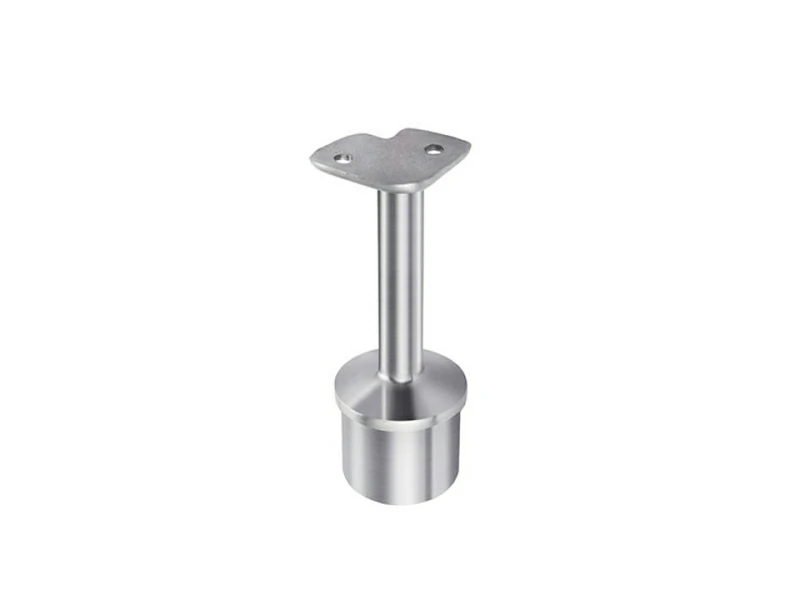

90 Degree Handrail Support Structure

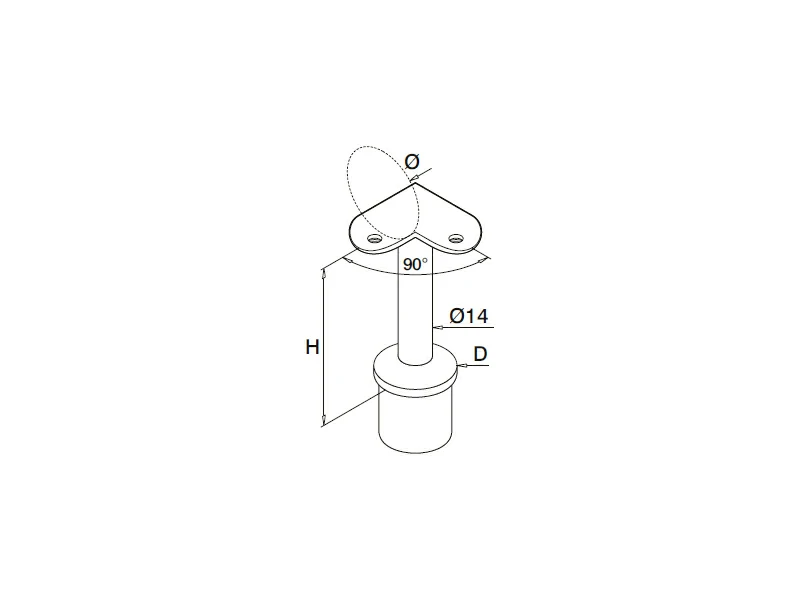

Handrail Support 90° Top Plate

The Stainless Steel 90 Degree Top Plate Handrail Support is a specialized corner saddle fitting engineered to join and secure handrails at a fixed right angle atop vertical post uprights. Designed to streamline balustrade assembly at 90° corners along stair landings, balconies, and walkways, this post-top bracket eliminates the need for complex field miter cutting or site welding, providing a continuous structural transition.

Featuring a solid ∅ 14 mm central support stem, this post-top fitting delivers a standard clearance height (H) of 80 mm from the lower post sleeve to the underside of the handrail plate. The upper 90° angled saddle plate includes pre-drilled fastener holes and is available in a flat profile or curved profile curvatures (∅) designed to fit 33.7 mm, 42.4 mm, and 48.3 mm round handrail tubes. The lower mounting adapter collar (D) press-fits into round vertical posts measuring 33.7 mm, 42.4 mm, or 48.3 mm outer diameter. Precision-crafted from high-performance stainless steel grades—AISI 304, AISI 316, and Duplex SS 2205—and available in brushed satin (matte) or mirror-polished (shiny) finishes, these modular Railing Fittings serve as an essential component across professional Handrail Supports product lineups.

Category

Part NO. D

Ø

H

Material

Surface

Place of Production

Handrail Supports

F003.33.00

33.7 × 2.0mm

Flat

80mm

AISI 304, 316 or Duplex SS 2205

Satin or Mirror polished

Shandong, China

Handrail Supports

F003.33.33

33.7 × 2.0mm

33.7mm

80mm

Handrail Supports

F003.33.42

33.7 × 2.0mm

42.4mm

80mm

Handrail Supports

F003.42.00

42.4 × 2.0mm

Flat

80mm

Handrail Supports

F003.42.42

42.4 × 2.0mm

42.4mm

80mm

Handrail Supports

F003.42.48

42.4 × 2.0mm

48.3mm

80mm

Handrail Supports

F003.48.00

48.3 × 2.0mm

Flat

80mm

Handrail Supports

F003.48.42

48.3 × 2.0mm

42.4mm

80mm

Handrail Supports

F003.426.42

42.4 × 2.6mm

42.4mm

80mm

Handrail Supports

F003.426.48

42.4 × 2.6mm

48.3mm

80mm

Handrail Supports

F003.486.42

48.3 × 2.6mm

42.4mm

80mm

Handrail Supports

F003.486.48

48.3 × 2.6mm

48.3mm

80mm



Handrail Support Info:

1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Installation Location: Post
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 45days for samples making +50days batch production after railing support samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement



FAQ:

Q1: What is the primary purpose of a 90 Degree Top Plate Handrail Support?
A: A 90 Degree Top Plate Handrail Support mounts into the open top of a corner post, allowing two meeting handrail tubes to turn a precise 90° right angle smoothly without needing on-site welding or custom mitering.

Q2: What handrail and post diameters are compatible with this corner support?
A: The lower mounting sleeve (D) and upper 90° saddle curvature (∅) both fit standard round tubing outer diameters of 33.7 mm, 42.4 mm, and 48.3 mm (with flat saddle configurations available for square or timber handrails).

Q3: What vertical clearance height does this fitting provide?
A: This fitting provides a fixed vertical clearance height (H) of 80\text{ mm measured from the post collar to the base of the handrail saddle.

Q4: Which stainless steel material grade should be specified for outdoor or marine use?
A: Specify AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or severe marine installations to ensure maximum protection against salt spray, atmospheric oxidation, and chloride pitting.
