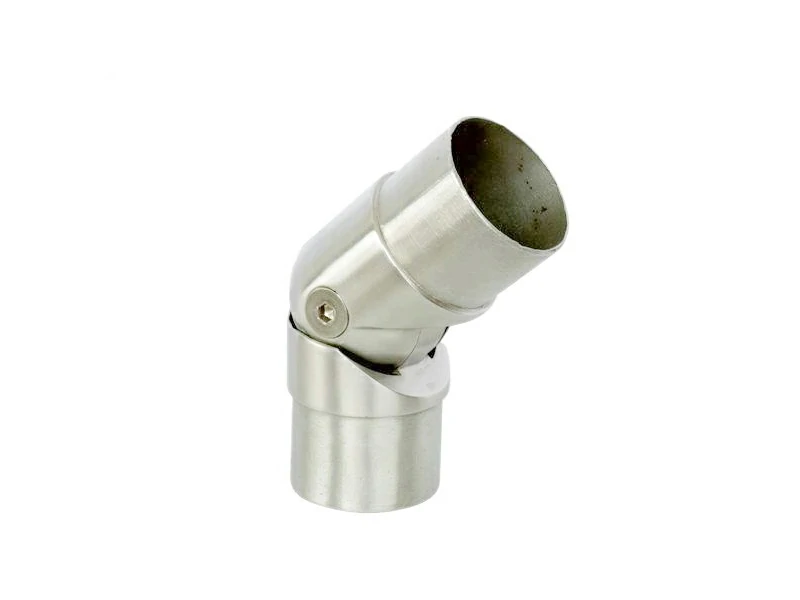

The Adjustable Handrail Elbow (0°-90°) is a high-performance, precision-engineered hardware component designed for modern architectural railing systems. This structural tube connector is utilized to connect two independent sections of tubing while allowing for fluid directional changes within a specific angle range. Unlike rigid, fixed-angle elbows that demand flawless site geometry, this adjustable joint allows for fast, on-site adjustments to achieve precise angles between 0 and 90 degrees during installation. This significantly simplifies the installation process and provides incredible layout versatility. It is the perfect choice for custom staircases, ADA-compliant commercial ramps, multi-level balconies, and unique architectural projects where a handrail run must transition smoothly along an incline or around corners.
The component features a robust internal male insertion sleeve design. The open ends of matching handrail pipes slide seamlessly over these sleeves, seating flush against the central pivoting shoulder to maintain a uniform outer diameter and consistent layout offset. Fabricated from high-grade, premium stainless steel—available in AISI 304, AISI 316, or Duplex SS 2205—these durable handrail fittings deliver excellent structural longevity and exceptional resistance to environmental corrosion. To ensure a flawless fit with standard architectural setups, the elbow is manufactured in standard tube outer diameters of 33.7mm, 42.4mm, and 48.3mm, and is offered in a clean brushed satin or highly reflective mirror-polished surface finish.
|
Category |
Part NO. | Ø |
H |
Material |
Surface |
Place of Production |
| Tube Joiners |
A011.33.20 |
33.7x2.0mm |
30mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Tube Joiners |
A011.42.20 |
42.4x2.0mm |
27mm |
|||
|
Tube Joiners |
A011.42.26 |
42.4x2.6mm |
27mm |
|||
|
Tube Joiners |
A011.48.20 |
48.3x2.0mm |
30mm |
|||
|
Tube Joiners |
A011.48.26 |
48.3x2.6mm |
30mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after tube joiner samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary function of an Adjustable Handrail Elbow?
A: It connects two separate stainless steel handrail tubes and allows installers to adjust the angle between 0 and 90 degrees directly on the job site. This handles custom staircase slopes, ramp transitions, or angled corners smoothly.
Q2. What tube sizes and dimensions does this tube connector support?
A: This component is precision-crafted to fit standard architectural pipe outer diameters of 33.7mm, 42.4mm, and 48.3mm. For detailed structural metrics and offset heights, please refer directly to the engineering drawing
Q3. Can these handrail fittings be used for exterior architectural projects?
A: Yes. Because it is manufactured from high-quality stainless steel (available in AISI 304, AISI 316, or Duplex SS 2205), it provides excellent resistance to corrosion and weathering, making it perfectly suited for both indoor and outdoor handrail applications.
Q4. How is the desired angle locked in during installation?

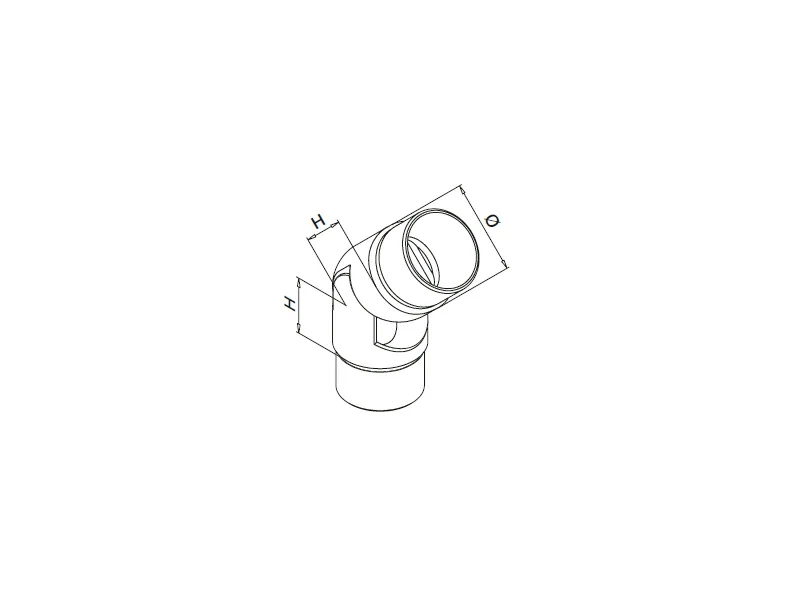

A: As shown in elbow-joiner-0degree-90degree-adjustable-structure.webp, the joint features an integrated central mechanical pivot mechanism. Installers simply pivot the component to the exact angle required by the staircase or ramp layout and lock it into place. The internal sleeves are then securely bonded to the handrail tubes using a high-strength structural adhesive or mechanical fasteners, completely eliminating the need for expensive on-site welding.
Q5. Does the adjustable joint leave a rough or sharp surface on the handrail?
A: No. The internal flush-mount design ensures that the transition between the handrail tubing and the connector body is completely level, smooth, and snag-free, providing a secure and comfortable grip for end-users.
