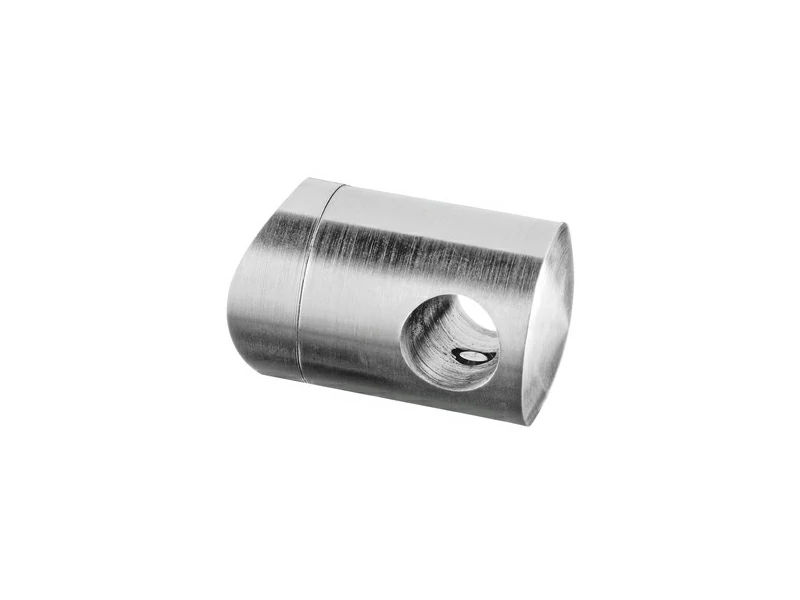

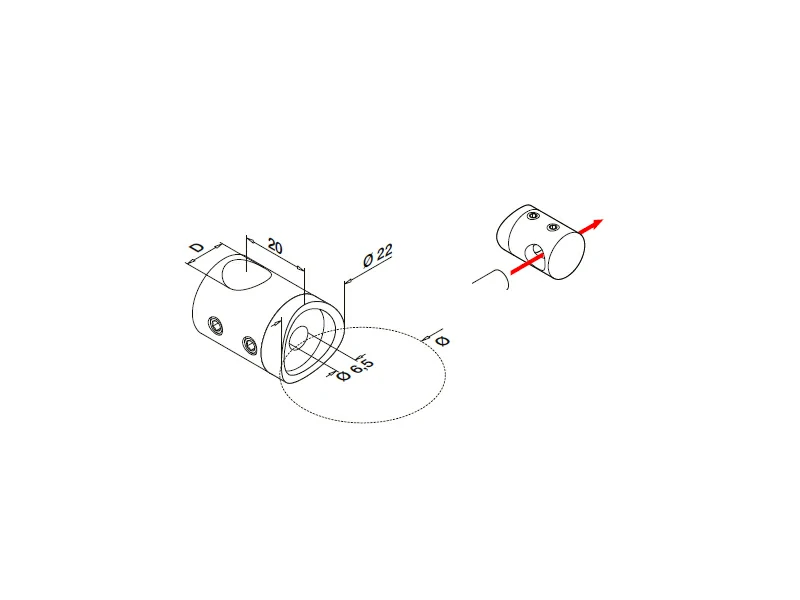

The Stainless Steel Crossbar Holder for Handrail is a precision-engineered component designed to securely hold horizontal bars or tubes in railing systems. Crafted from AISI 304, AISI 316, or Duplex SS 2205 stainless steel, this holder ensures exceptional corrosion resistance, durability, and an elegant finish suitable for both indoor and outdoor installations. Designed to accommodate a 10 mm diameter bar, the holder itself features a 22 mm outer diameter and a 20 mm depth, ensuring a stable and firm fit. With finishes available in Satin and Mirror Polish, it integrates seamlessly into modern architectural handrail systems, combining functionality with aesthetic appeal. Our Crossbar Holders are manufactured with precision and tested for durability to meet the needs of architects, contractors, and builders worldwide.
|
Category |
Part NO. | D | Ø |
Material |
Surface |
Application |
|
Bar Fittings |
K007.10.00 |
10mm |
Flat |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Crossbar connector |
|
Bar Fittings |
K007.10.33 |
10mm |
33.7mm |
|||
|
Bar Fittings |
K007.10.42 |
10mm |
42.4mm |
|||
|
Bar Fittings |
K007.12.00 |
12mm |
Flat |
|||
|
Bar Fittings |
K007.12.42 |
12mm |
42.4mm |
|||
|
Bar Fittings |
K007.12.48 |
12mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies And Kids, Outdoor, Storage &Amp; Closet, Exterior, Wine Cellar, Entry, Hall, etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Bar-to-railing post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 50days batch production after crossbar holder samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
