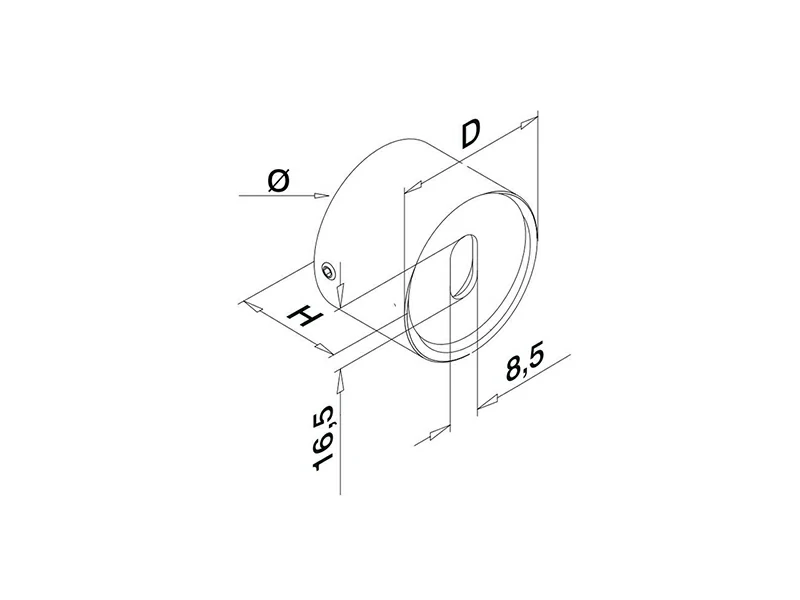

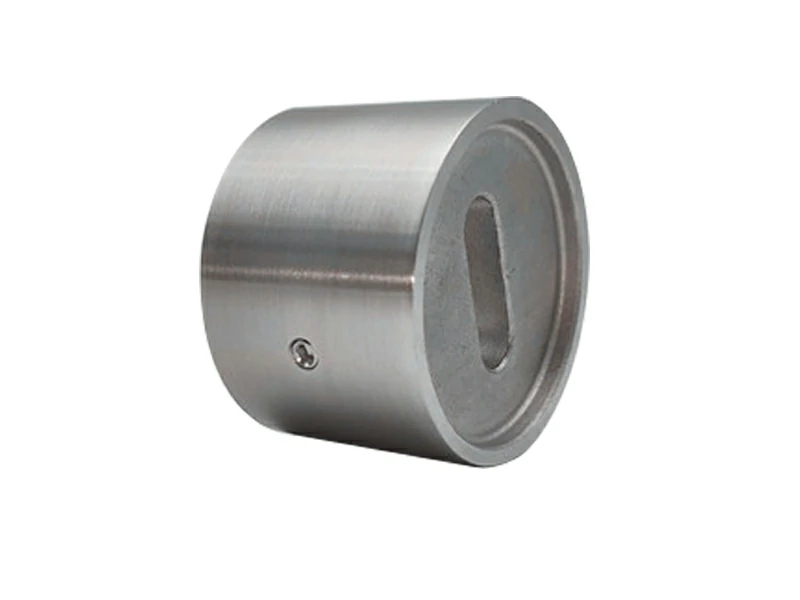

The Flange Wall Mount is an architectural hardware component designed to securely attach a handrail tube or post to a wall or other vertical mounting surface. Its main function is to provide stable support and ensure the safe anchoring of a structural railing system. Unlike traditional multi-hole flanges, this socket-style mount features an elongated 16.5 × 8.5 mm opening on the interior mounting face, allowing a heavy-duty structural bolt to pass through and anchor the bracket flush against a vertical surface. This design conceals the primary fastener inside the collar, creating a seamless, minimalist aesthetic.
Engineered for adaptability across residential, commercial, and public spaces, these premium stainless steel handrail fittings are suitable for both indoor and outdoor applications. The component is precision-machined to accommodate standard industrial tube outer diameters , outer body widths (D), and specific collar socket depths (H). To satisfy varying structural loads and environmental challenges, the mount is available in high-performance alloy grades including AISI 304, AISI 316, or Duplex SS 2205. Users can select between an elegant satin or mirror polished surface finish to match the design language of their project while ensuring superior corrosion resistance. A small integrated set screw on the side of the collar tightens directly onto the inserted pipe to form a secure, weldless mechanical lock.
|
Category |
Part NO. | D | Ø |
H |
Material |
Surface |
Place of Production |
|
Base & Covers
|
C003.42.00 |
50mm |
42.4mm |
35mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Base & Covers |
C003.48.00 |
56mm |
48.3mm |
35mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Installation Location: Flooring / Wall
6. Design Style: Contemporary, Modern, European, Craftsman
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 60days batch production after base flange samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary function of this style of Flange Wall Mount?
A: The Flange Wall Mount is used to transition and securely lock a handrail tube or vertical support post directly onto a flat wall or vertical architectural structure. It serves as a rigid end-terminal or intermediate wall anchor that reinforces the overall stability of the railing system.
Q2. What are the dimensions of the internal mounting slot on the base?
A: The back-facing mounting slot measures exactly 16.5 mm in total height and 8.5 mm in width. This elongated opening gives installers slight adjustable clearance when aligning and securing the anchor bolt or mounting screw directly into wood, concrete, or steel substrates.
Q3. How do I know which stainless steel grade and surface finish to select?
A: Your selection should depend entirely on your localized environmental conditions:
AISI 304 (Satin Finish): Ideal for climate-controlled interiors, residential indoor staircases, and standard commercial office applications.
AISI 316 (Mirror Finish): Highly recommended for general outdoor settings, deck railings, and urban environments subject to moisture.
Duplex SS 2205 (Mirror Finish): Engineered for maximum safety in high-chloride marine environments, coastal boardwalks, and swimming pool perimeters.
Q4. Is on-site welding required to hold the handrail pipe inside the flange?
A: No welding is necessary. The flange features a small set screw on the outer side of the collar. Once the handrail tube or post is inserted into the socket, simply tighten this screw using a hex key to mechanically lock the pipe permanently into place.
