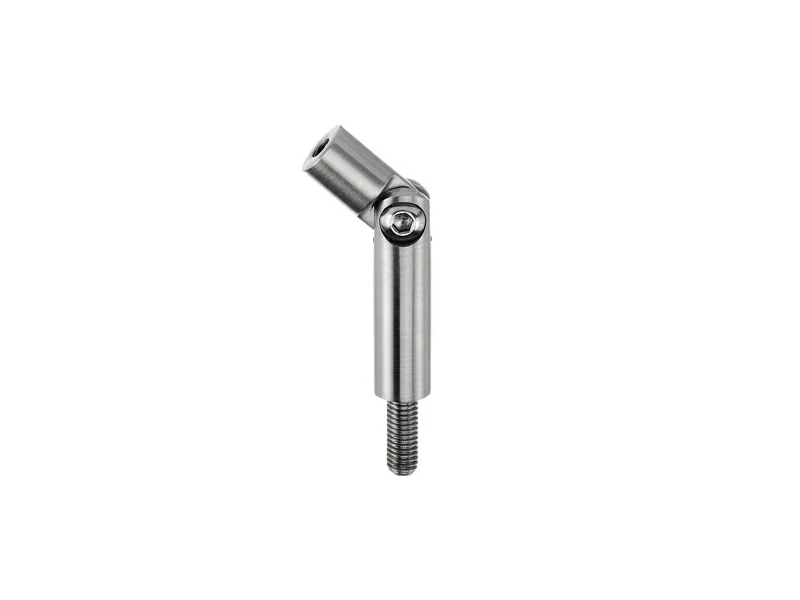

The Stainless Steel Handrail Bracket Stem Adjustable M10 is a specialized component for handrail systems that offers the ability to precisely adjust the height of the handrail. This adjustability provides greater flexibility and precision during installation, particularly on uneven surfaces or for custom designs. A threaded rod or bolt is integrated into the stem, allowing the installer to lengthen or shorten the stem’s height. The product is available in a selection of materials and finishes to meet your specific project and environmental requirements. This Handrail Bracket Stem Adjustable is ideal for applications where flexibility is needed in terms of the angle or positioning of the handrail. It’s commonly used in staircases, ramps, and other handrail systems where adjustments are essential.
|

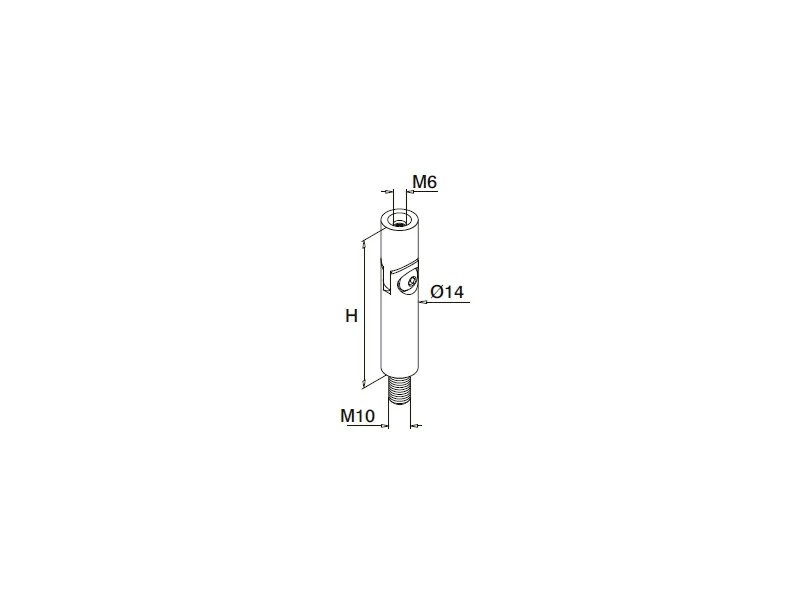

Category |
Part NO. |
Ø |
H |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F012.14.00 |
14mm |
70mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F012.14.01 |
14mm |
90mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
4. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
5. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
6. Installation Location: Floor / Wall
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 45days for samples making +50days batch production after railing support samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
