The Stainless Steel Handrail Glass Bracket is a specialized glass-to-tube mounting component designed to support handrails directly from glass panels in modern balustrades, staircases, and balconies. Engineered to maintain structural safety without compromising visual transparency, this bracket anchors firmly through glass panels while keeping the sightlines unobstructed. It combines durable performance with clean aesthetics, serving as an essential solution for high-end commercial and residential railing applications.

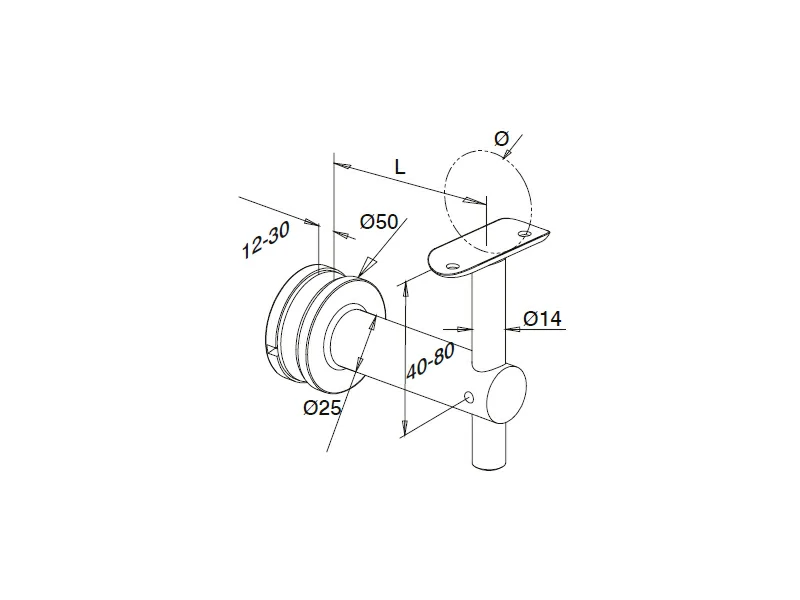

The structural design incorporates a ∅ 50 mm glass clamping adapter/boss fitted with protective gaskets, accommodating glass thicknesses from 8 mm up to 25.52 mm (suitable for toughened monolithic and laminated glass). A solid ∅ 14 mm bracket arm projects outward with a horizontal offset (L = 77 mm) from the glass face to the handrail axis, maintaining a 50 mm vertical height offset from the horizontal arm center to the mounting saddle plate. The upper saddle profile is engineered to cradle flat-bottom handrail bars as well as standard round tubing measuring ∅ 42.4 mm and ∅ 48.3 mm.
Manufactured in AISI 304, AISI 316, and Duplex SS 2205 material grades, these handrail brackets offer superior resistance against pitting and atmospheric corrosion. Available in brushed satin and mirror polished surface finishes, these specialized handrail fittings fulfill international building safety standards while enhancing modern architectural designs.
|
Category |
Part NO. |
Ø |
L |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E016.00.00 |
Flat |
77mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E016.00.42 |
42.4mm | 77mm | |||
| Handrail Brackets |
E016.00.48 |
48.3mm | 77mm |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Installation Location: Wall / Post
6. Design Style: Contemporary, Modern, European, Craftsman
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 45days for samples making +50days batch production after handrail bracket samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
Q1: What type of glass panels can be used with this Stainless Steel Glass Handrail Bracket?
A: The clamping adapter supports glass panel thicknesses ranging from 8 mm to 25.52 mm, making it ideal for standard toughened monolithic glass as well as heavy-duty laminated safety glass.
Q2: What handrail tubing profiles fit the top saddle?
A: The top saddle plate is designed to cradle flat-bottom timber or metal handrails, as well as round architectural tubing with outer diameters of ∅ 42.4 mm and ∅ 48.3 mm.
Q3: How does the glass clamping mechanism protect the glass from cracking?
A: The ∅ 50 mm glass adapter utilizes resilient, non-abrasive isolator gaskets that cushion the glass, evenly distributing clamping force to prevent direct metal-to-glass contact and surface stress points.
Q4: Which stainless steel grade is best suited for my project environment?
A: Material selection depends on exposure levels:
AISI 304: Ideal for dry indoor commercial buildings, residential staircases, and offices.
AISI 316: Designed for general outdoor glass balconies, walkways, and humid public spaces.
Duplex SS 2205: Engineered for marine environments, coastal boardwalks, and swimming pool enclosures exposed to aggressive salt fog or chlorination.
