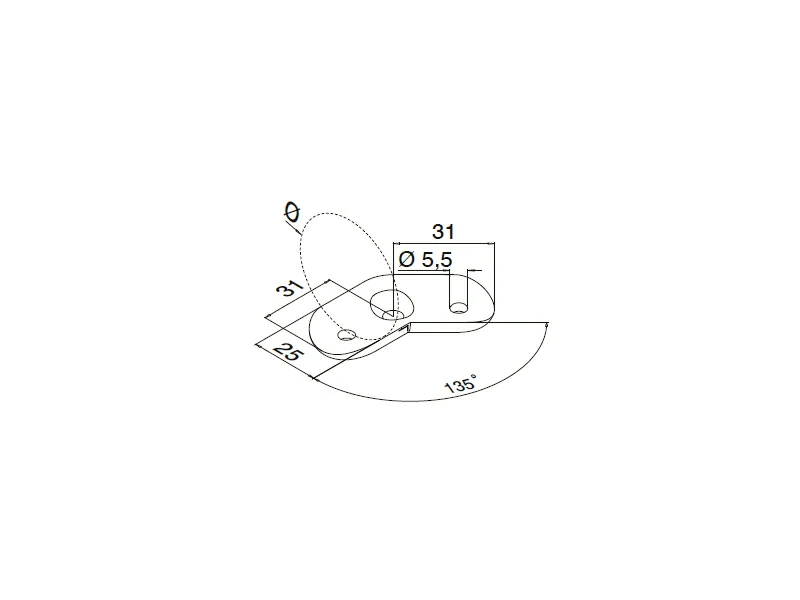

The Stainless Steel Handrail Saddle Plate 135 Degree for Railing is a component designed to secure and stabilize handrails tubes at a 135-degree angle, often used in custom railing or structural systems. Made from high-quality stainless steel such as AISI 304, AISI 316, or Duplex SS 2205, this saddle plate ensures both durability and resistance to corrosion. The saddle plate has a unique 135-degree angle for connecting tubes, perfect for railings or other structural projects that require a non-90-degree angle. The design features a concave center to securely hold the tube in place. It is designed to fit 42.4mm and 48.3mm diameter tubes, offering flexibility for various railing systems. This Handrail Saddle Plate is ideal for use in handrails, offering secure connections while maintaining a polished and professional look.
|
Category |
Part NO. |
Ø |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F019.00.00 |
Flat |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F019.00.42 |
42.4mm |
|||
|
Handrail Supports |
F019.00.48 |
48.3mm |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Hotel, Villa, Apartment, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 45days for samples making +50days batch production after saddle plate samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
