The Railing End Cap Flat Top is a high-quality decorative and protective component engineered for modern railing systems. Serving as a crucial architectural trim, this stainless steel end cap seamlessly covers the raw, exposed ends of structural tubes and pipes to deliver a clean, professional, and flush finish. Beyond its aesthetic value, it seals open tubing against dirt, environmental moisture, and debris, while eliminating sharp edges to maximize pedestrian safety. The flat top profile offers a sleek, minimalistic appearance that makes it a staple component in high-end commercial and residential balustrades, guardrails, and stair railings.

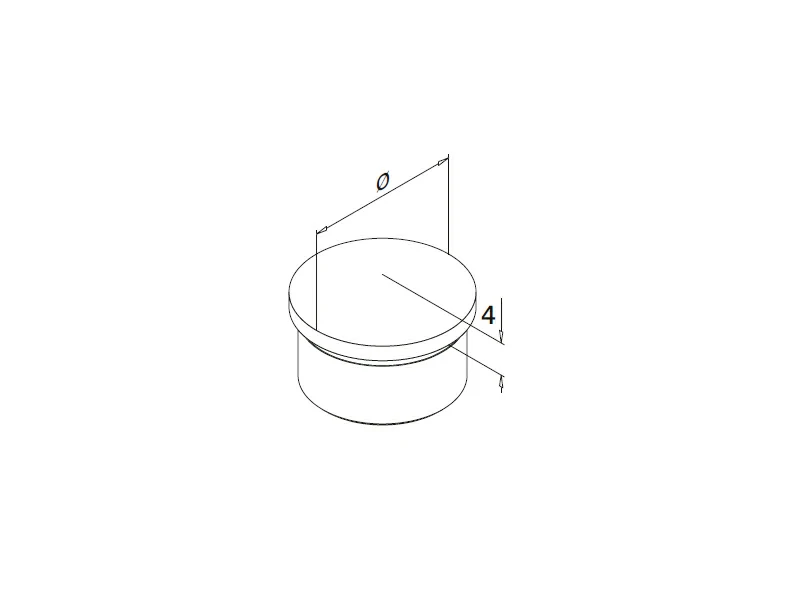

Precision-engineered for demanding architectural applications, these premium handrail fittings are built to accommodate standard tube outer diameters of 33.7 mm, 42.4 mm, and 48.3 mm, with compatible wall thicknesses of 2.0 mm and 2.6 mm. The design showcases a subtle 4 mm visible collar height above the insertion line, ensuring a tight, flush fit against the pipe rim. Depending on structural requirements and localized environmental exposure, the cap can be specified in top-tier stainless steel alloys including AISI 304, AISI 316, or Duplex 2205. Available in both understated satin brushed and high-shine mirror polished finishes, this component offers exceptional versatility to fulfill both specialized practical needs and refined design visions.
|
Category |
Part NO. | Ø |
Material |
Surface |
Place of Production |
|
End Caps
|
B004.33.20 |
33.7×2.0mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
End Caps |
B004.42.20 |
42.4×2.0mm |
|||
|
End Caps |
B004.42.26 |
42.4×2.6mm |
|||
|
End Caps |
B004.48.20 |
48.3×2.0mm |
|||
|
End Caps |
B004.48.26 |
48.3×2.6mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after end cap samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main purpose of installing a flat top Railing End Cap?
A: A Railing End Cap serves both aesthetic and protective functions. It caps off hollow, raw-cut pipes to give balustrades a refined, minimalist finish while acting as a barrier against internal pipe corrosion caused by trapped water or debris. It also eliminates the risk of cuts or snags from sharp metal edges.
Q2: Which stainless steel material grade should I choose for my installation?
A: Material selection should be guided by your project's environment and the level of corrosion resistance required:
Grade 304: Best suited for standard indoor applications, interior staircases, and dry commercial environments.
Grade 316: Highly recommended for outdoor architectural structures, public handrails, and environments facing variable weather conditions.
Duplex 2205: Engineered for maximum durability in highly corrosive settings, such as industrial facilities, coastal infrastructure, or marine applications exposed to heavy saltwater spray.
Q3: Does this flat top cap support multiple tube thicknesses?
A: Yes. This versatile component is engineered to fit standard architectural pipe outer diameters of 33.7 mm, 42.4 mm, and 48.3 mm, and is optimized to accommodate tube wall thicknesses of either 2.0 mm or 2.6 mm. Always verify both the outer diameter and internal wall thickness of your tubing prior to ordering to ensure a perfect fit.
Q4: How is this stainless steel end cap fixed into place?
A: These handrail fittings are designed for a straightforward, weld-free mechanical insertion directly into a square, deburred pipe end. Depending on your exact internal tube tolerances, they can be securely pressed or driven flush with a soft-faced rubber mallet. For permanent commercial installations or demanding outdoor environments, a structural metal adhesive can be applied to the insert sleeve for an airtight lock.
