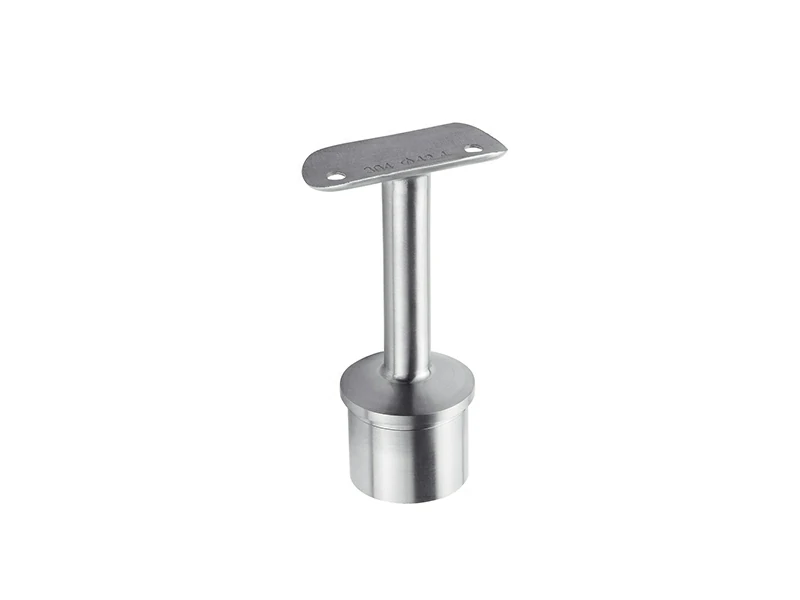

The Stainless Steel Railing Saddle Bracket is a hardware component used in railing systems, typically designed to support handrails by attaching them securely to walls, posts, or other structures. These railing supports are crafted from high-quality stainless steel materials such as AISI 304, 316, or Duplex SS 2205, ensuring excellent durability, corrosion resistance, and long-term performance in both indoor and outdoor settings. You can choose from Satin or Mirror Polished finishes for a sleek, modern appearance that complements a wide variety of architectural styles. These Railing Saddle Brackets are designed to support railing tubes in different configurations, ensuring reliable strength and safety for residential, commercial, or industrial railing installations.
|

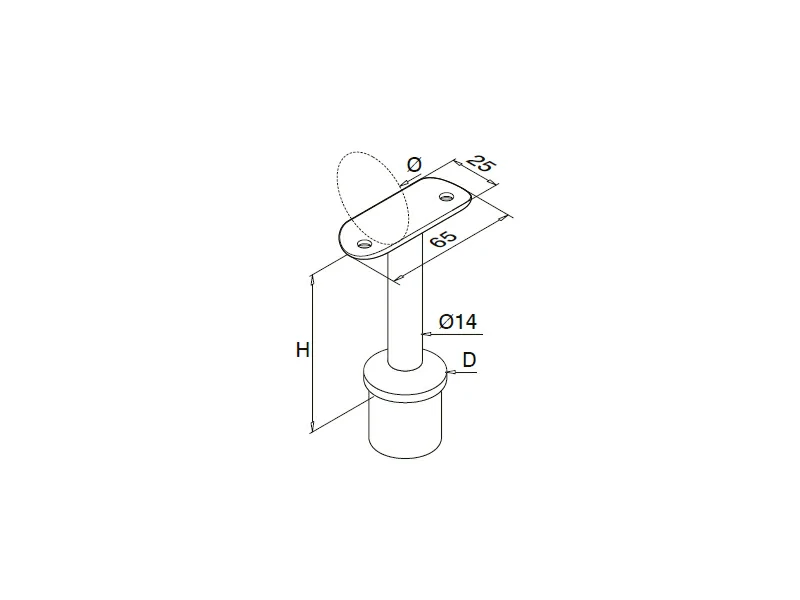

Category |
Part NO. | D |
Ø |
H |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F001.33.00 |
33.7 × 2.0mm |
Flat |
80mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F001.33.33 |
33.7 × 2.0mm |
33.7mm |
80mm |
|||
|
Handrail Supports |
F001.33.42 |
33.7 × 2.0mm |
42.4mm |
80mm |
|||
|
Handrail Supports |
F001.42.00 |
42.4 × 2.0mm |
Flat |
80mm |
|||
|
Handrail Supports |
F001.42.42 |
42.4 × 2.0mm |
42.4mm |
80mm |
|||
|
Handrail Supports |
F001.42.48 |
42.4 × 2.0mm |
48.3mm |
80mm |
|||
|
Handrail Supports |
F001.48.00 |
48.3 × 2.0mm |
Flat |
80mm |
|||
|
Handrail Supports |
F001.48.42 |
48.3 × 2.0mm |
42.4mm |
80mm |
|||
| Handrail Supports |
F001.426.42 |
42.4 × 2.6mm |
42.4mm |
80mm |
|||
|
Handrail Supports |
F001.426.48 |
42.4 × 2.6mm |
48.3mm |
80mm |
|||
|
Handrail Supports |
F001.486.42 |
48.3 × 2.6mm |
42.4mm |
80mm |
|||
|
Handrail Supports |
F001.486.48 |
48.3 × 2.6mm |
48.3mm |
80mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Installation Location: Floor / Wall
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 45days for samples making +50days batch production after railing support samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
